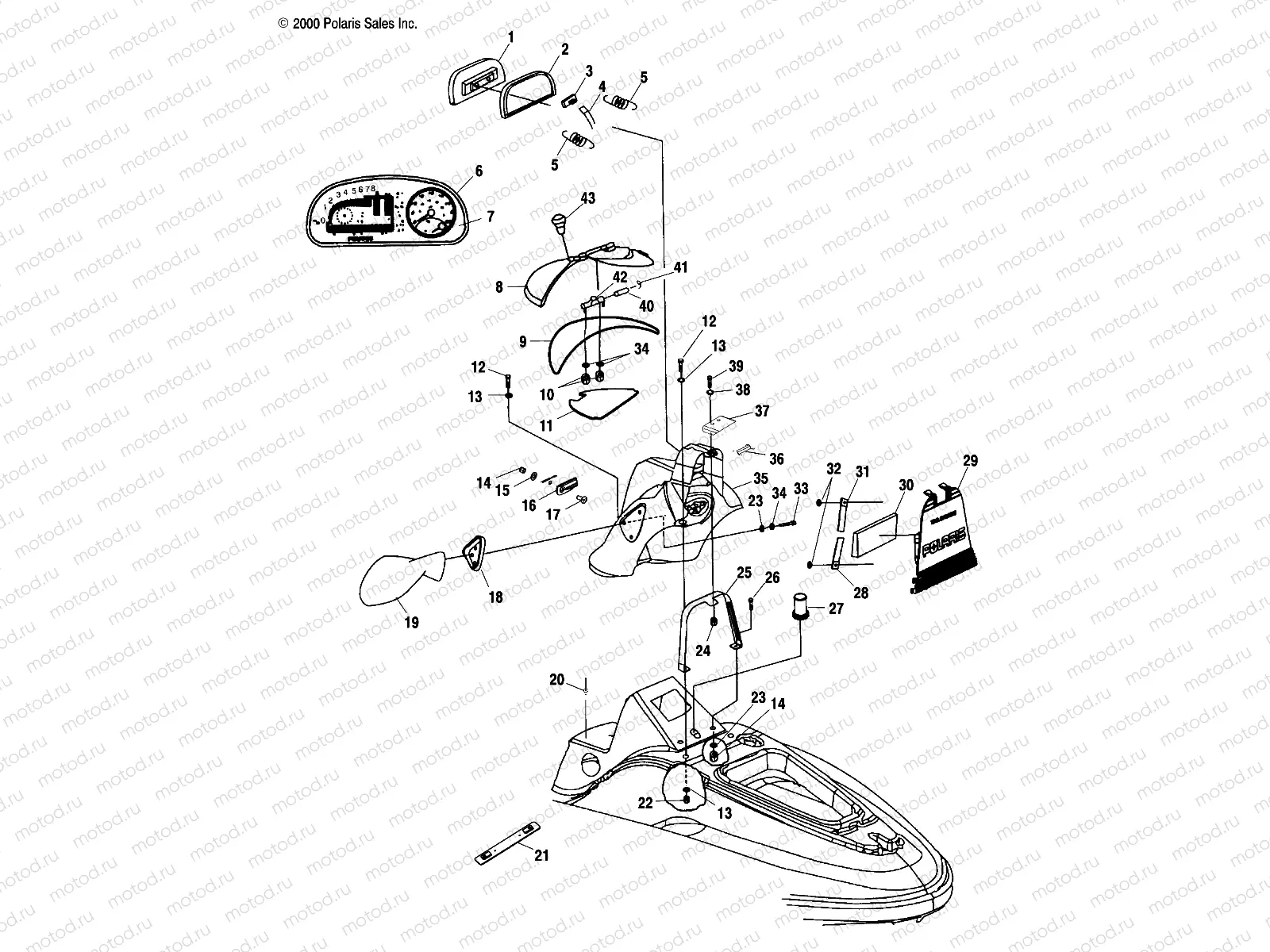

Главная Каталог товаров Polaris EPC 2001 Polaris PWC Polaris 2001 INT'L GENESIS I (W015098I) Polaris 2001 PWC SHROUD - W015098D (4964876487A003) | SHROUD - W015098D (4964876487A003)

SHROUD - W015098D (4964876487A003) | SHROUD - W015098D (4964876487A003)

SHROUD - W015098D (4964876487A003) | SHROUD - W015098D (4964876487A003)

Например: 3280292

1

3280292

GAUGE,MFD,ANALOG/DIGITAL

2

5411738

GASKET-MFI

3

4010281

CONNECTOR-DEUTCHE,4PIN W/PLUGS

4

8450070-235

"""PITOT LINE 90DEG FORMED 235CM."""

5

7041931

SPRING,MOUNTING,MFI

6

2201593

MFI,BUTTON REPLACEMENT,KIT

7

3280342

BEZEL-MFI,OVERLAY

8

5434176-1093

LID-CONSOLE BLACK MET

9

5521579

SUBSTITUTED BY 5521630

10

7546705

NUT 6 MM. S.S.

11

5812235

PAD-CONSOLE

12

7517668

Vis

13

7555831

WASHER, FLAT, S.S.(10)

14

7546704

NUT NYLOK SS.

15

7556094

Rondelle

16

5245455

HOOK-CONSOLE,LATCH

17

7517669

Vis

18

5411557

GASKET-MIRROR,LH

18

5411558

GASKET-MIRROR,RH

19

2631972-070

MIRROR,LH,BLACK,ASM.

19

2631973-070

MIRROR,RH,BLACK,ASM.

20

7661042

RIVET-POP (50)

21

1820725

MOUNT,SHROUD

22

7546804

NUT HEX NYLOK

23

7555839

WASHER, FLAT, S.S.(10)

24

7541931

NUT HEX S.S.

25

5244673

BRKT,SUPPORT,SHROUD

26

7516807

Vis

27

5411664

GROMMET-DECK,WIRE HARNESS

28

2690151

STRAP-TOOL KIT LOWER

29

5433210-070

COVER-WIRE,SHROUD,BLK

30

LR--

CALIPER, BRAKE, RH

31

2690150

STRAP-TOOL KIT UPPER

32

7710517

RING-RETAINING,.25 STUD

33

7516805

SCREW, S.S.(10)

34

7552613

Rondelle (Lock)

35

5434210-1093

"""SHROUD-STEER NO REV BLK MET"""

36

5812076

BUMPER,DOOR/SHROUD

37

5244670

PLATE,LATCH,RECEIVER

38

7555837

WASHER, FLAT, S.S.(10)

39

7517879

"""SCR-#10-32X3/4 FLAT SOC SS(10)"""

40

5333698

PIN-HINGE,CONSOLE

41

7042007

SPRING-TORTION,CONSOLE,070.SS [Item NotAvailable]

42

5433384

HINGE-CONSOLE,3/16 PIN

43

2653011

LATCH ASM,CONSOLE
