Главная Каталог товаров Polaris EPC 2000 Polaris PWC Polaris 2000 VIRAGE TX (W005199D) Polaris 2000 PWC SHROUD - W005199D (4955825582A005) | SHROUD - W005199D (4955825582A005)

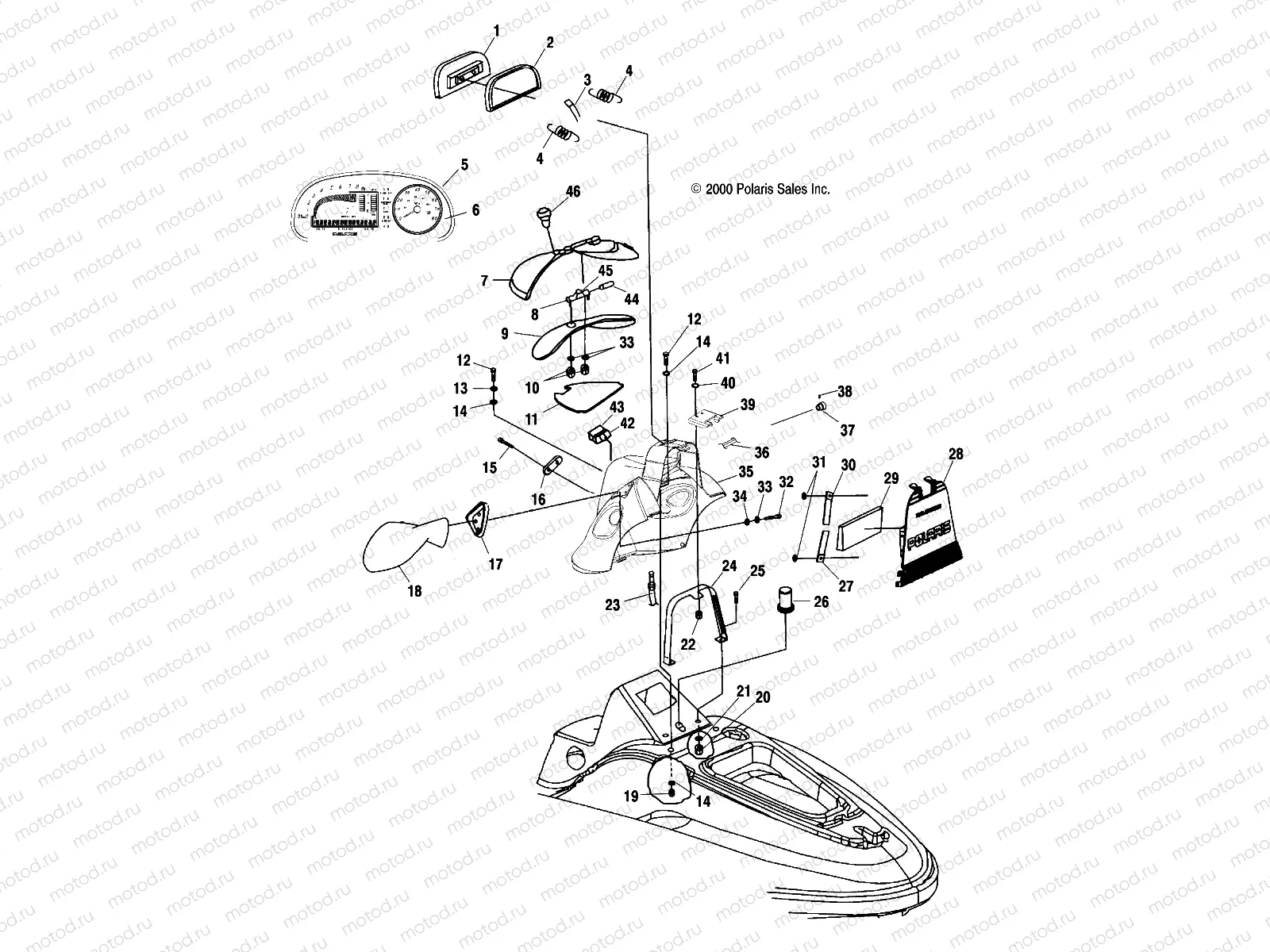

SHROUD - W005199D (4955825582A005) | SHROUD - W005199D (4955825582A005)

SHROUD - W005199D (4955825582A005) | SHROUD - W005199D (4955825582A005)

Например: 3280339

1

3280339

GAUGE-MFI,ANALOG/DIGITAL,BASIC

2

5411738

GASKET-MFI

3

8450070-190

"""PITOT LINE 90DEG FORMED 190CM"""

4

7041931

SPRING,MOUNTING,MFI

5

2201593

MFI,BUTTON REPLACEMENT,KIT

6

3280342

BEZEL-MFI,OVERLAY

7

2201996

KIT-CONSOLE LID 00 VIRAGE TX

8

7041754

SPRING-TORSION CONSOLE SS

9

5521478

SEAL,LID,CONSOLE

10

7546705

NUT 6 MM. S.S.

11

5811783

PAD CONSOLE

12

7517668

Vis

13

7556055

Rondelle (Lock)

14

7555831

WASHER, FLAT, S.S.(10)

15

7516609

SCREW,SS.

16

5211865

PLATE,HOOK,CONSOLE

17

5411557

GASKET-MIRROR,LH

17

5411558

GASKET-MIRROR,RH

18

2631972-070

MIRROR,LH,BLACK,ASM.

18

2631973-070

MIRROR,RH,BLACK,ASM.

19

7546804

NUT HEX NYLOK

20

7546704

NUT NYLOK SS.

21

7555839

WASHER, FLAT, S.S.(10)

22

7541931

NUT HEX S.S.

23

7081056

CABLE-CHOKE SNGL.CARB THK NECK

24

5244673

BRKT,SUPPORT,SHROUD

25

7516717

BOLT(10)

26

5411664

GROMMET-DECK,WIRE HARNESS

27

2690151

STRAP-TOOL KIT LOWER

28

5433210-070

COVER-WIRE,SHROUD,BLK

29

LR--

CALIPER, BRAKE, RH

30

2690150

STRAP-TOOL KIT UPPER

31

7710517

RING-RETAINING,.25 STUD

32

7516805

SCREW, S.S.(10)

33

7552613

Rondelle (Lock)

34

7556094

Rondelle

35

2202007

KIT-SHROUD W/LID 00 VIRAGE TX

36

5812076

BUMPER,DOOR/SHROUD

37

2080004

KNOB,CHOKE

38

2080005

Vis

39

5244670

PLATE,LATCH,RECEIVER

40

7555837

WASHER, FLAT, S.S.(10)

41

7517818

SCR,(10)#10-32X3/4

42

5811552

GASKET,HOOK,CONSOLE

43

5433266

HOOK CONSOLE LATCH 1/4 TURN

44

5333698

PIN-HINGE,CONSOLE

45

5433384

HINGE-CONSOLE,3/16 PIN

46

2632234

LATCH,ASM,CONSOLE1/4 TURN
