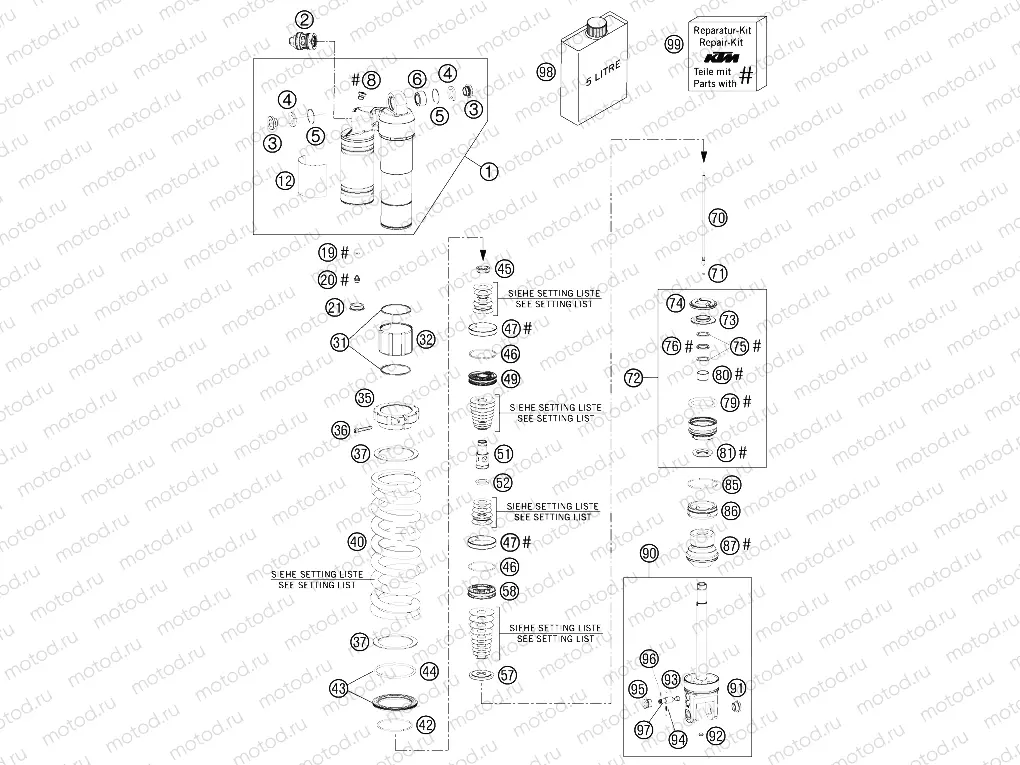

SHOCK ABSORBER DISASSEMBLED

SHOCK ABSORBER DISASSEMBLED
Например: 50180429S4
1
50180429S4
MONOSHOCK TOP PART CPL. 07
2
50180213S10
DCC-COMPR.DAMP.CONTROL CPL. 07
3
46180007
Distance bush 12x15/18/24,5x10,5
4
46180003
Seal ring 19,5x26x3
5
50180168
Round-wire snap ring 25x1
6
50180005
Ball joint bearing 15x25x13
8
50180095
HS cylinder-head screw R1/8 l8
12
52000085
Autocollant (PDS KTM)
19
46810893
O-ring 5,28x1,78 NBR70 black
20
36120151
HS lock screw M5x6
21
46811208
Rubber cap do not open 22x5,5 NBR
31
50180133
CIRCLIP 50X1,5
32
50180081
Spring guide 54,15x60x40
35
50180433
SPRING RETAINER M56X1
36
50180327
HS cylinder-head screw M5x30
37
50180114
Intermediate washer spring 61,7x78x1,5
40
91210068S
PRING 250 69N/MM ORANGE
40
91210046
SPRING250 72N/MM D12,5 (62)ORA
40
91210047
Mainspring (62) 76-250 damper orange
40
91210048
SPRING250 80N/MM D12,5 (62)ORA
40
91210049
SPRING 250 84N/MM (62) ORANGE
42
50180273
Round-wire snap ring 58,5x2
43
50180463S
PRING RET. D=80 W. O-RING 05
44
50180352
O-ring 66,27x1,78 Viton70
45
50180141
Piston rod nut 16x1
46
50180099
O-ring 44x,17x1,78 Viton70
47
50180135
Piston ring 47,95x49,95x8
49
50180446
PISTON 6+6X3,5/4,5
51
50180485
HOLDER D=16 M16X1 L=48
52
50180578
SHIM D23XD16X2
57
50180233
Rebound disc 16x34x5 h2
58
50180311
Piston 16x49,6x13,5
70
50180490
NEEDLE L=169
71
46811265
O-ring 2,2x1,6 Viton75 green
72
50180435S1
ADAPTOR D50 H29 CPL.
73
50180113
Washer 18,5x43,7x6
74
50180107
Rubber pad rebound 27x48x8 NBR80
75
50180102
Washer 18x22,5x1,5 plastic
76
50180101
X-ring 18x2,62 Viton70
79
50180103
O-ring 41x5 NBR70
80
46180119
Guide bushing 18x20x12
81
50180082
Dirt scarper 18mm
85
50180126
Round-wire snap ring 53x1,75
86
50180487
COVER D=50
87
50180480
Rubber pad 17x58x59
90
50180484S1
MONOSHOCK LOWER PART CPL. 07
91
50180105
Threaded bush M12 d20
92
50180297
Rubber plug 8x3,5 NBR50
93
40540603
Steel ball d3
94
48600028
Spring (1,7) l7,9
95
50180281
HH screw M14x9
96
50180222
O-ring 4x1,5 NBR70
97
50180434S
ADJUSTING SCREW REBOUND TRAVEL
98
50180751S1
HOCK ABSORBER FLUID 5 LT
99
R12011
EPAIR KIT GASKET 5018 PDS 06
