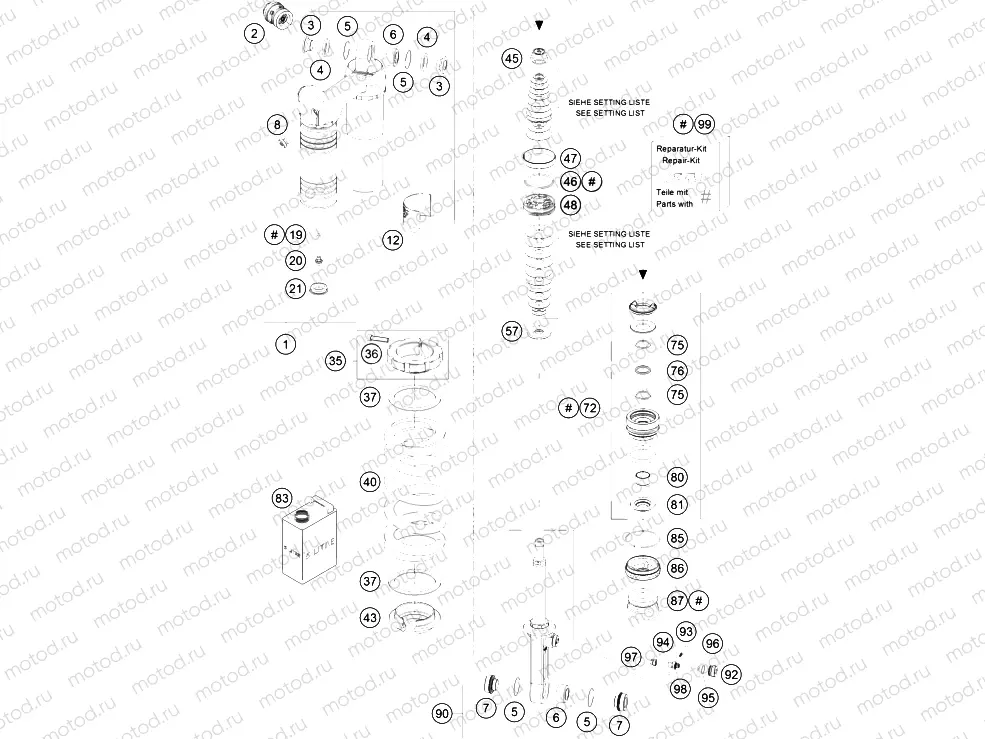

SHOCK ABSORBER DISASSEMBLED

SHOCK ABSORBER DISASSEMBLED
Например: 46180398S2
1
46180398S2
MONOSHOCK TOP PART CPL. 07
2
50180213S4
Compression cpl.
3
50180366
Bearing bush 14x15/18/24,5x10,45
4
46180003
Seal ring 19,5x26x3
5
50180168
Round-wire snap ring 25x1
6
50180005
Ball joint bearing 15x25x13
7
46181307E
Bearing bush 14x15/23,5x14,45 cpl.
8
50180095
HS cylinder-head screw R1/8 l8
12
52000086
Sticker WP clear 35x55
19
46810893
O-ring 5,28x1,78 NBR70 black
20
36120151
HS lock screw M5x6
21
46811208
Rubber cap do not open 22x5,5 NBR
35
46180394S
ADJUSTING NUT M52X1,5
36
46180354
AH SCREW M5X25
37
50180410
Washer 58,6x73,6x1,5
40
91010277S
PRING 140-215 (59)D=13,75 TIT
43
46181299
Spring retainer H=15 D=28
45
46180597
Piston rod nut M12x1
46
46810035
O-ring 37x,82x1,78 Viton70 green
47
46812011
Piston ring 44x46x8
48
46810560
Piston 12,05x45,5x12,6 4,5/7
57
14460017
Rebound disc 12x35x4 h0
72
46180341S
ADAPTOR CPL. D=46 H=28 D=38
75
50180102
Washer 18x22,5x1,5 plastic
76
50180101
X-ring 18x2,62 Viton70
80
46180119
Guide bushing 18x20x12
81
50180082
Dirt scarper 18mm
83
50180751S1
HOCK ABSORBER FLUID 5 LT
85
46810010
Round-wire snap ring 49x1,8
86
46180397
COVER H=9,5
87
50180276
Rubber pad 17,2x45,2x40 black
90
46180399S2
MONOSHOCK LOWER PART CPL. 07
92
46180005
Screw cap M16x1
93
40540603
Steel ball d3
94
48600028
Spring (1,7) l7,9
95
46180013
O-ring 12x1 NBR70
96
50180222
O-ring 4x1,5 NBR70
97
46180016
Adjustment screw slot rebound
98
46180006
Adjustment screw slot rebound
99
R15004
EPAIR KIT GASKET 05
