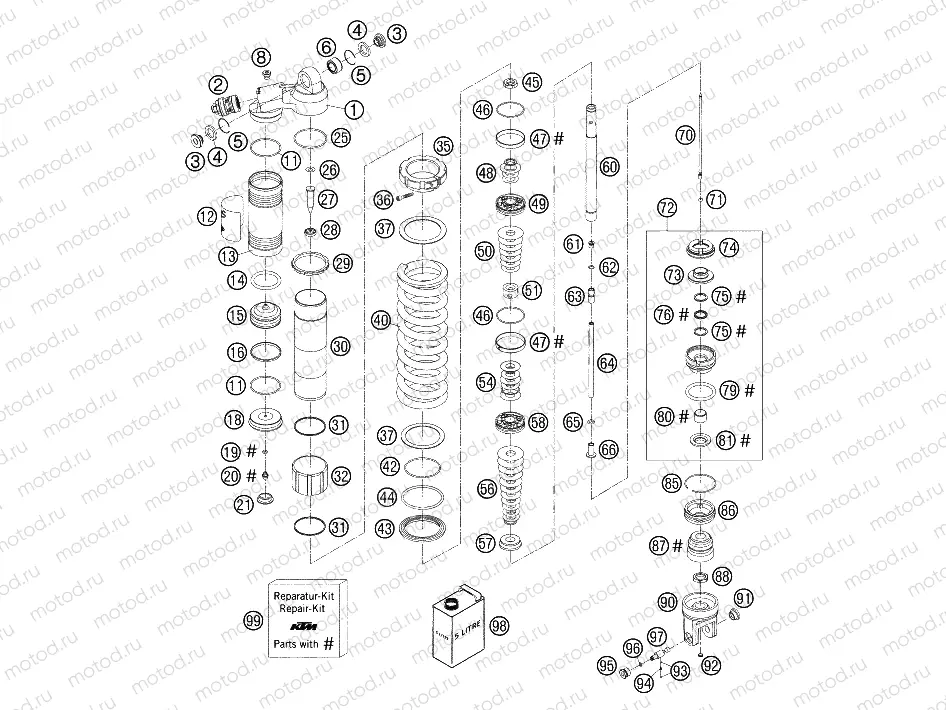

SHOCK ABSORBER DISASSEMBLED

SHOCK ABSORBER DISASSEMBLED
Например: 50180429
1
50180429
MONOSHOCK TOP H=30,5 M54X1
2
50180213S6
Compression cpl.
2
50180301S3
MCC-COMPR.DAMP.CONTROL CPL. 04
3
46180007
Distance bush 12x15/18/24,5x10,5
4
46180003
Seal ring 19,5x26x3
5
50180168
Round-wire snap ring 25x1
6
50180005
Ball joint bearing 15x25x13
8
50180095
HS cylinder-head screw R1/8 l8
11
46810016
O-ring 48x2 NBR70 siliconized
12
52000085
Autocollant (PDS KTM)
13
50180438
RESERV. SCREW L=120 D=52 GOLD
14
46180014
O-ring 41x5 Viton75
15
46180002
Piston 52mm reservoir
16
46180015
Pistonring 47,5x50,5x3,9
18
50180344
RESERVOIR CAP D=58
19
46810893
O-ring 5,28x1,78 NBR70 black
20
36120151
HS lock screw M5x6
21
46811208
Rubber cap do not open 22x5,5 NBR
25
50180097
O-ring 52x2 NBR70
26
50180177
Springwasher 8,2x16x0,6
27
50180444
NEEDLE D=11,4 D=7,6 L=57
27
50180448
NEEDLE D=11,4 D=7,8 L=57
28
50180579
SCREW CAP M20X1 D=11,5 H=5
29
50180270
Rondelle (Lock)
30
50180430
TUBE PDS L=198
31
50180133
CIRCLIP 50X1,5
32
50180081
Spring guide 54,15x60x40
35
50180433
SPRING RETAINER M56X1
36
0912050303
AH SCREW DIN0912-M 5X30
37
50180114
Intermediate washer spring 61,7x78x1,5
40
91210001
SPRING 250 69N/MM D=12,0 (62)
40
91210002
SPRING 250 72N/MM D=12,5 (59)
40
91210003
SPRING 250 76N/MM D=12,5 (59)
40
91210004
SPRING 250 80N/MM D=12,5 (62)
40
91210005
SPRING 250 84N/MM D=13,0 (62)
40
91210014
SPRING PDS5-260 66-86N/MM
40
91210015
SPRING PDS6-260 71,5-90,5N/MM
40
91210016
SPRING PDS7-260 76-95N/MM
42
50180273
Round-wire snap ring 58,5x2
43
50180463S
PRING RET. D=80 W. O-RING 05
44
50180352
O-ring 66,27x1,78 Viton70
45
50180141
Piston rod nut 16x1
46
50180099
O-ring 44x,17x1,78 Viton70
47
50180135
Piston ring 47,95x49,95x8
48
50180034
Shim 16x20x0,30
48
50180055
SHIM 16X30X0,20
48
50180056
Shim 16x32x0,2
48
50180057
Shim 16x34x0,2 y5
48
50180058
Shim 16x36x0,20
48
50180210
Washer 16x21x1
49
50180197
Piston 16,05x49,6x13,5 4,5/7
50
50180036
Shim 16x22x0,30
50
50180037
SHIM 16X23X0,30
50
50180069
SHIM 16X40X0,25
50
50180073
SHIM 16X30X0,30
50
50180074
SHIM 16X32X0,30
50
50180075
SHIM 16X34X0,30
50
50180076
SHIM 16X36X0,30
50
50180077
SHIM 16X38X0,30
50
50180078
SHIM 16X40X0,30
51
50180436
SANDWICH BUSH D26XD16X14.5/11
54
50180034
Shim 16x20x0,30
54
50180045
Shim 16x28x0,15
54
50180054
Shim 16x28x0,2
54
50180055
SHIM 16X30X0,20
54
50180056
Shim 16x32x0,2
54
50180057
Shim 16x34x0,2 y5
54
50180067
SHIM 16X36X0,25
56
50180035
Shim 16x21x0,30
56
50180057
Shim 16x34x0,2 y5
56
50180058
Shim 16x36x0,20
56
50180059
SHIM 16X38X0,20
56
50180060
Shim 16x40x0,2
56
50180061
Shim 16x52x0,2
56
50180062
Shim 16X44X0,20
56
50180063
SHIM 16X28X0,25
56
50180064
Shim 16x30x0,25
56
50180065
SHIM 16X32X0,25
56
50180066
SHIM 16X34X0,25
56
50180071
SHIM 16X44X0,25
57
50180196
REBOUND DISC D=34, H=8
58
50180446
PISTON 6+6X3,5/4,5
60
50180431
PISTON ROD D=18 L=151 M16X1
61
50180200
BUSH M8X1
62
50180157
O-ring 7x1,5 Viton70 green
63
50180439
NEEDLE SEAT M8X1 D=5,5 05
64
50180264
TUBE M18X1 L=151,5
65
48600049
O-ring 8x2 NBR70
66
50180279
Bush 5/8,2/7x9,5/16,8x23
70
50180261
NEEDLE L=175
71
46811265
O-ring 2,2x1,6 Viton75 green
72
50180435S1
ADAPTOR D50 H29 CPL.
73
50180113
Washer 18,5x43,7x6
74
50180107
Rubber pad rebound 27x48x8 NBR80
75
50180102
Washer 18x22,5x1,5 plastic
76
50180101
X-ring 18x2,62 Viton70
79
50180103
O-ring 41x5 NBR70
80
46180119
Guide bushing 18x20x12
81
50180082
Dirt scarper 18mm
85
50180126
Round-wire snap ring 53x1,75
86
50180211
CAP D=50
87
50180276
Rubber pad 17,2x45,2x40 black
88
50180283
HH locking nut M18x1 h5 WAF24
90
50180356
FORK PART L=55,5 B=32,5 D=12
91
50180105
Threaded bush M12 d20
92
50180297
Rubber plug 8x3,5 NBR50
93
40540603
Steel ball d3
94
48600028
Spring (1,7) l7,9
95
50180281
HH screw M14x9
96
50180222
O-ring 4x1,5 NBR70
97
50180434S
ADJUSTING SCREW REBOUND TRAVEL
98
50180751S1
HOCK ABSORBER FLUID 5 LT
99
R12008
EPAIR-KIT GASKET 5018 PDS 03
