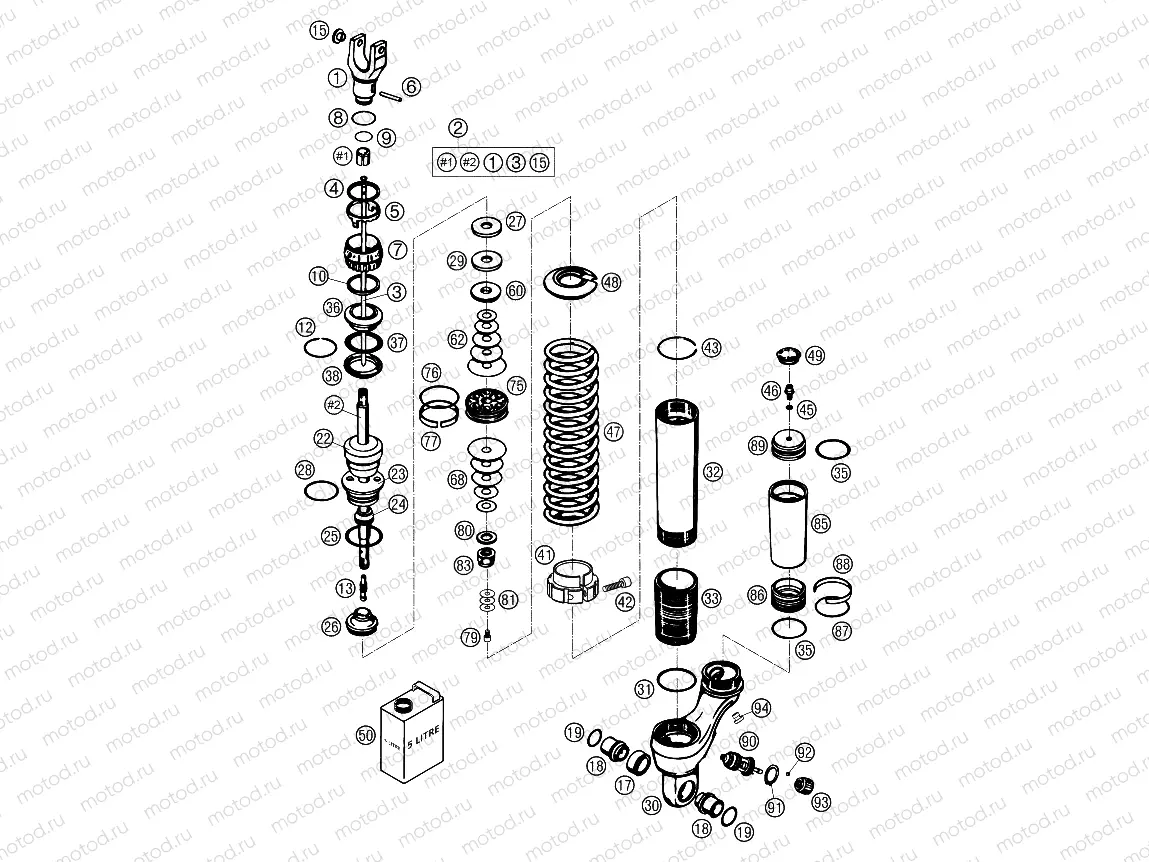

SHOCK ABSORBER DISASSEMBLED

SHOCK ABSORBER DISASSEMBLED
Например: 46811558S
1
46811558S
HOCK ABS. BOTTOM-FORK L75B
2
46811583S
PISTON ROD CPL. D=14 BA M14X1
3
46811405S
NEEDLE CPL. D=14 BA, L=154
4
46811222
O-RING 36X0,5
5
46811263
Rondelle
6
46811261
PIN 4X35
7
46811262
ADJ. KNOB D=41
8
46811500
O-RING NBR 32X1,5
9
46811499
O-ring 21x2 NBR70
10
46811221
Shaft seal 29x35x3
12
46811268
CIRCLIP 22X1,2
13
46811259
NEEDLE SEAT 5X17,25
15
46811205
Bush M10x12/15/13x9,5
17
46811027
Ball joint bearing 15x25x13
18
46811078S
ADAPTOR BUSH CPL. KGW 10X24
19
46811050
SEAL KGW
22
46810171
BUMP RUBBER WP55 WHITE L=20
23
46811045
SCREW CAP M47,4, H=22,5
24
46811044
DUST SEAL 1424
25
46810325
O-ring 35x5 NBR70
26
46811053S2
ADAPTER 46X23 CPL.
27
46811004
SPACER 14X35X5
28
46811042
O-ring 40x2 NBR70 black
29
46811005
Bush 14x35x10
30
46811481
SHOCK ABSORB. TOP H-35/79 84
31
46810016
O-ring 48x2 NBR70 siliconized
32
46810426
TUBE L=205
33
46810346
THREADED BUSH L=60 BLACK
35
46810340
O-ring 45x2 NBR70 siliconized
36
46811561
BUSHING RING D=55X19
37
46811512
O-RING NBR 32X8
38
46811511
SUPPORT RING D=55X7,5
41
46811586
COUNTER NUT
42
0912060253
AH SCREW DIN0912-M 6X25
43
46810010
Round-wire snap ring 49x1,8
45
46810893
O-ring 5,28x1,78 NBR70 black
46
36120151
HS lock screw M5x6
47
91010154
SPRING WP 80-260
48
46810063
SPRING RETAINER D=58,H=13,L=15
49
46811208
Rubber cap do not open 22x5,5 NBR
50
50180751S1
HOCK ABSORBER FLUID 5 LT
60
46811216
REBOUND BUSH PLANE H=6,5
62
46810611
SHIM 12X18X0,15
62
46810508
SHIM 12X24X0,30
62
46810500
SHIM 12X26X0,25
62
46810501
SHIM 12X28X0,25
62
46810493
SHIM 12X30X0,20
62
46810494
Shim 12x32x0,20
62
46810495
Shim 12x34x0,20
62
46810505
SHIM 12X36X0,25
62
46810497
SHIM 12X38X0,20
62
46810498
Shim 12x40x0,20
68
46810508
SHIM 12X24X0,30
68
46810500
SHIM 12X26X0,25
68
46810501
SHIM 12X28X0,25
68
46810502
Shim 12x30x0,25
68
46810494
Shim 12x32x0,20
68
46810608
SHIM 12X24X0,10
68
46810520
SHIM 12X30X0,15
68
46810521
SHIM 12X32X0,15
75
46811218
PISTON 6+6XD=7 BA
76
46810035
O-ring 37x,82x1,78 Viton70 green
77
46811206
Piston ring 43,95x45,95x8
79
46180055
BLEED SCREW M6X0,5
80
46811258
Washer 12x24x2,5
81
40540403
Shim 6x18x0,10
81
40540407
SHIM 6X18X0,15
81
40540450
Shim 6x9,5x0,30
83
46180060
Piston rod nut M12x1
85
46811453
RESERVOIR SCREW L=123 GREY
86
46810322
SEPARATION PISTON D=46
87
46811043
O-Ring (35x5)
88
46810324
Pistonring 42,5x45,5x3,9
89
46811209
RESERVOIR CAP D=46
90
46811331S
CC-COMPRE.DAMPING CONTROL CPL.
91
46810334
Rondelle (Lock)
92
46810333
STEEL-BALL D=4,75
93
46811272S
ADJUSTING KNOB CC-MECH. CPL.
94
50180095
HS cylinder-head screw R1/8 l8
