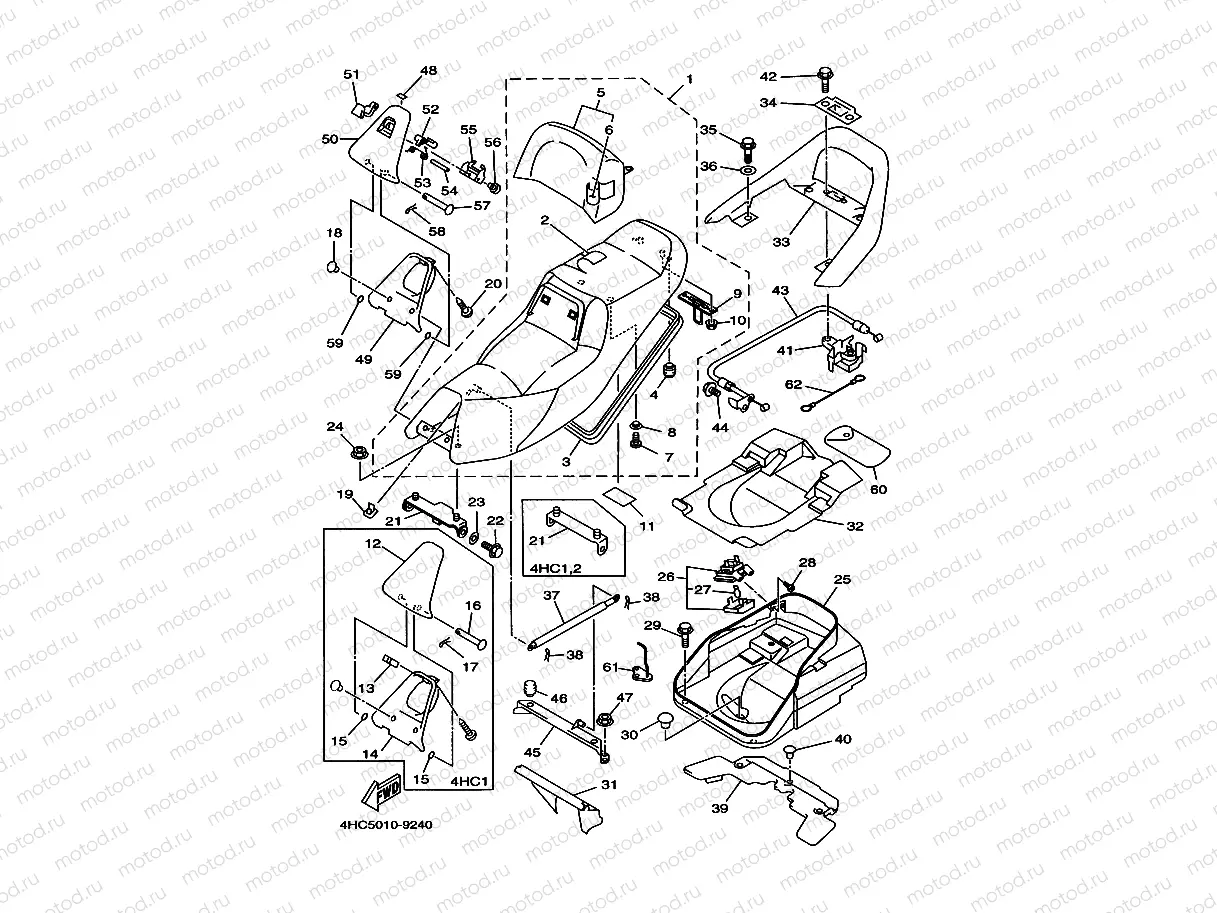

Главная Каталог товаров YAMAHA EPC 125 cm³ - 349 cm³ YAMAHA Majesty 250 YP 250 YAMAHA YP250 MAJESTY 250 (4HC1) 1995 YAMAHA Majesty 250 YP 250 (VIN: 4HC) Sheet

Sheet

Sheet
Например: 4HC-24730-A1
1
4HC-24730-A1
Saddle assy
2
4HC-2470F-A1
OVER, SEAT
3
4HC-2475M-00
SEAL
4
1T4-24741-00
Демпфер (упор)
874 ₽/шт
5
4HC-24790-A1
SEAT BACK ASSY
6
4HC-2477A-02
SEAT COVER ASSY
7
90110-06200
Болт
175 ₽/шт
8
90387-066R8
Втулка
143 ₽/шт
9
3VP-24728-60
.BRACKET, SEAT
10
95780-06500
Гайка
95 ₽/шт
11
3WP-21668-00
LABEL, TIRE
12
4HC-2473T-00
Крышка
3 894 ₽/шт
12
4HC-2473T-01
Груз
3 894 ₽/шт
13
4HC-24618-00
Плата замка
747 ₽/шт
14
4HC-2473F-00
over, Seat Comp
1 033 ₽/шт
14
4HC-2473F-01
over, Seat Comp
1 033 ₽/шт
15
93210-05187
Кольцо уплотнительное
207 ₽/шт
16
90240-05047
Палец
683 ₽/шт
17
90468-10050
Стопор
191 ₽/шт
18
90269-07076
Клипса пластиковая
175 ₽/шт
19
90183-05042
Гайка-скоба
136 ₽/шт
20
97707-50012
Винт
120 ₽/шт
21
4HC-2197J-00
INGE 1
22
90109-063F5
Болт
191 ₽/шт
23
90206-10036
Шайба волнистая
175 ₽/шт
24
90179-08491
Гайка
120 ₽/шт
25
4HC-2473R-00
BOX 1
29
90119-06191
Vis
30
90338-11125
Пробка
191 ₽/шт
31
4HC-2177F-00
ouvrir
32
4HC-24723-00
DAMPER, SEAT
33
4HC-24773-A0-P2
NDLE, SEAT
33
4HC-24773-A0-PA
andle, Seat
53 240 ₽/шт
33
4HC-24773-A0-T9
NDLE, SEAT
34
4HC-2476U-00
Protector 1
2 241 ₽/шт
35
95817-06020
Болт
95 ₽/шт
36
90201-064J1
Шайба
175 ₽/шт
37
4HC-2478G-00
Stopper
11 765 ₽/шт
38
90468-18121
Стопор
120 ₽/шт
39
4HC-21629-00
GUARD, MUD
40
90269-07076
Клипса пластиковая
175 ₽/шт
41
4JP-24780-03
Замок сиденья
5 696 ₽/шт
42
95817-06020
Болт
95 ₽/шт
43
4HC-2478E-00
ABLE, SEAT LOCK
44
98517-05010
Винт
111 ₽/шт
45
4HC-24738-00
Bracket, Seat
5 181 ₽/шт
46
1T4-24741-00
Демпфер (упор)
874 ₽/шт
47
95707-06500
Гайка
95 ₽/шт
48
4HC-2415C-00
LABEL
60
4HC-28100-00
TOOL KIT
62
4HC-21398-00
Крепление
3 179 ₽/шт
