Главная Каталог товаров Harley-Davidson EPC 2013 Harley-Davidson CVO/CUSTOM Harley-Davidson 2013 CVO ROAD KING ANV - FLHRSE5 ANV Harley-Davidson 2013 CVO/CUSTOM SADDLEBAGS (1 OF 2)

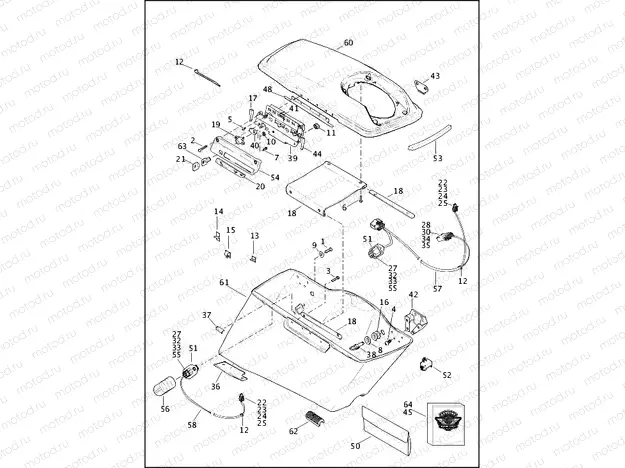

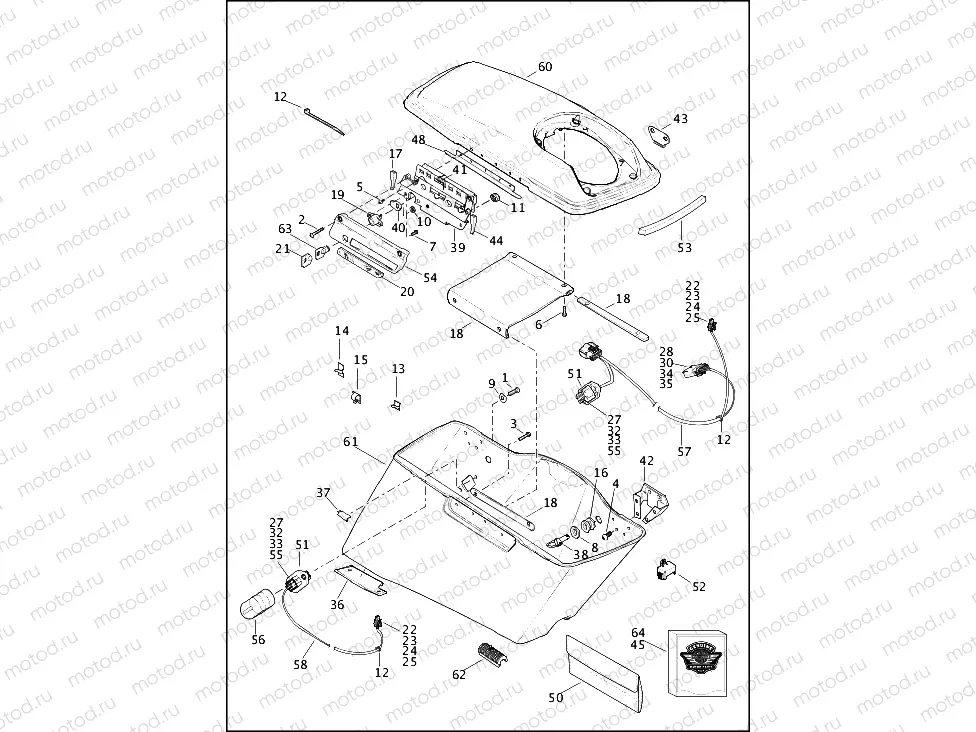

SADDLEBAGS (1 OF 2)

SADDLEBAGS (1 OF 2)

Например: 940

1

940

SCREW, HEX SOCKET BUTTON TORX

2

2524B

Vis

3

3592A

SCREW, #8-32

4

3593

SCREW, SADDLEBAG BRACKET

5

3595

SCREW, SADDLEBAG BRACKET

6

3612

Vis

7

3656

Vis

8

6229W

Rondelle

9

6703

Rondelle

10

7586

Nut

11

7608

Nut

12

10065

CABLE STRAP

13

10102

CLIP, ADHESIVE BACKED, FXDB

14

10103

CLIP, ADHESIVE BACKED, FXDB

15

VINTA-GEPARTS

ochette de joints moteur

16

11468

ISOLATOR SADDLEBAG

17

53482-93

SADDLEBAG RUB BAR, LH

17

53483-93

SADDLEBAG RUB BAR, RH

18

53567-93

TETHER,COVER,S'BAG

18

90200-002

TETHER,RH-S'BAG

19

53710-93

SDL BAG LOCK ASY SET (REQ KEYC

19

71400-067

IGN SWITCH,CONSOLE,LOCK SET

20

59287-92

REFLECTOR, RED, RIGHT

20

59288-92

REFLECTOR, RED, LEFT

20

59289-92

REFLECTOR, AMBER, RIGHT

20

59290-92

REFLECTOR, AMBER, LEFT

21

61081-92

KEY, HEAD COVER SET

22

72063-06

HOUSING, 2-WAY FEMALE

23

72094-06

TERMINAL, FEMALE, 18AWG

24

72096-06

WIRE SEAL, 20AWG, YELLOW

25

72111-06

SECONDARY LOCK, 2-WAY, FEMALE,

26

72146-94

SECONDARY LOCK, 6 PIN

27

72149-94

SECONDARY LOCK, 12 PIN

28

72166-07BK

HOUSING,16-WAY,SCKT/BLACK

29

72167-07BK

HOUSING, 16-WAY PIN, BLACK

30

72168-07

TERMINAL, SOCKET #18-20 AWG

31

72169-07

TERMINAL, PIN #16-20 AWG

32

72190-94

STAMPED & FORMED PIN

33

72195-94

SEAL PIN,4-WAY RECEPTACLE

34

72272-07

TERMINAL, SOCKET #14-16 AWG

35

72473-07

SEAL PIN (PLUG)

36

88335-09

PROTECTOR,LH-S'BAG

36

88336-09

PROTECTOR,RH-S'BAG

37

90115-04

S'BAG PROTECTOR

38

90400-00A

STUD, BAIL HEAD

39

90664-93

SADDLEBAG LATCH,LH

39

90665-93

SADDLEBAG LATCH, RH
