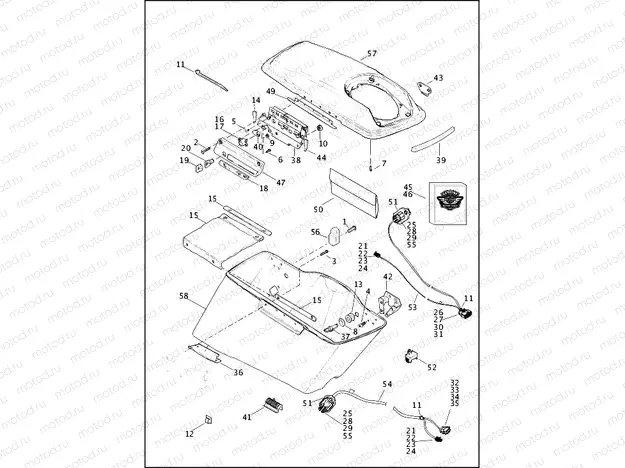

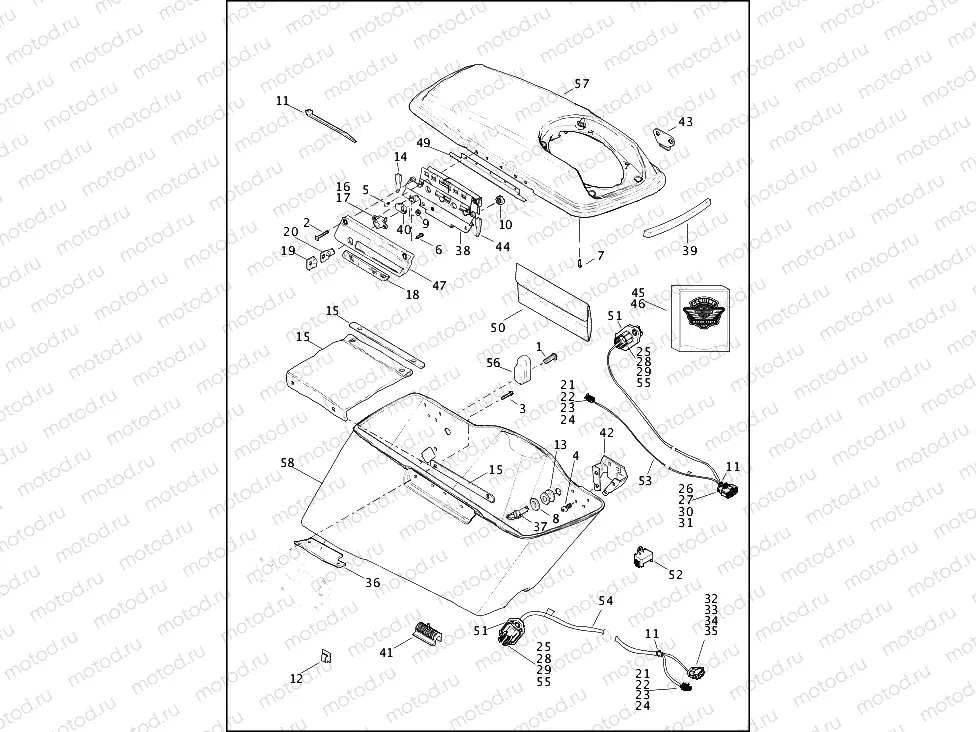

SADDLEBAGS (1 OF 2)

SADDLEBAGS (1 OF 2)

Например: 940

1

940

SCREW, HEX SOCKET BUTTON TORX

2

2524B

Vis

3

3592A

SCREW, #8-32

4

3593

SCREW, SADDLEBAG BRACKET

5

3595

SCREW, SADDLEBAG BRACKET

6

3656

Vis

7

5233

SCREW HI-LO TORX 0799

8

6229W

Rondelle

9

7586

Nut

10

7608

Nut

11

10065

CABLE STRAP

12

VINTA-GEPARTS

ochette de joints moteur

13

11468

ISOLATOR SADDLEBAG

14

53482-93

SADDLEBAG RUB BAR, LH

14

53483-93

SADDLEBAG RUB BAR, RH

15

53567-93

TETHER,COVER,S'BAG

15

90200-002

TETHER,RH-S'BAG

16

53710-93

SDL BAG LOCK ASY SET (REQ KEYC

17

90300-065

LOCKSET, FLTRXSE2, C/CN/D/HA/H

17

90300-066

LOCKSET,FLTRXSE2(HDI/ENGLAND)

17

90300-072

LOCKSET,FLTRXSE2-ANV(C/CN/D/HA

17

90300-073

LOCKSET,FLTRXSE2-ANV(HDI/ENGLA

18

59287-92

REFLECTOR, RED, RIGHT

18

59288-92

REFLECTOR, RED, LEFT

18

59289-92

REFLECTOR, AMBER, RIGHT

18

59290-92

REFLECTOR, AMBER, LEFT

19

61081-92

KEY, HEAD COVER SET

20

KEY (specify key code) (Domestic, Australia, Japan)

20

KEY (specify key code) (England & HDI)

21

72063-06

HOUSING, 2-WAY FEMALE

22

72094-06

TERMINAL, FEMALE, 18AWG

23

72096-06

WIRE SEAL, 20AWG, YELLOW

24

72111-06

SECONDARY LOCK, 2-WAY, FEMALE,

25

72149-94

SECONDARY LOCK, 12 PIN

26

72166-07BK

HOUSING,16-WAY,SCKT/BLACK

27

72168-07

TERMINAL, SOCKET #18-20 AWG

28

72190-94

STAMPED & FORMED PIN

29

72195-94

SEAL PIN,4-WAY RECEPTACLE

30

72272-07

TERMINAL, SOCKET #14-16 AWG

31

72473-07

SEAL PIN (PLUG)

32

74118-98BK

SOCKET HOUSING, BLACK, 8 WAY

33

74158-98

SOCKET SECONDARY LOCK, 8 WAY

34

74191-98

SOCKET, TERMINAL

35

74195-98

SEAL PIN

36

88335-09

PROTECTOR,LH-S'BAG

36

88336-09

PROTECTOR,RH-S'BAG
