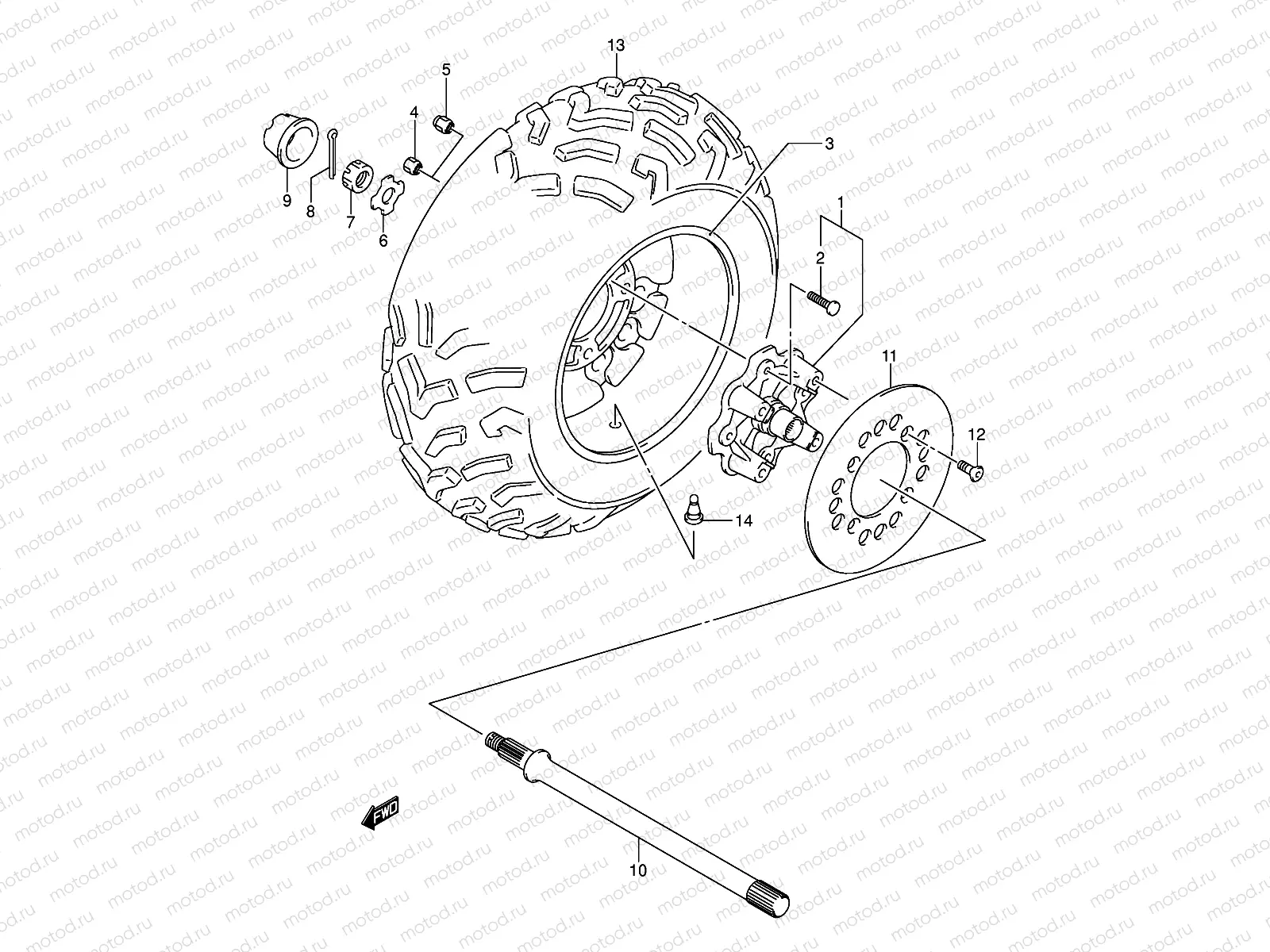

RIGHT REAR WHEEL

RIGHT REAR WHEEL
Например: 64110-38F10
1
64110-38F10
Hub,rear wheel
2
09119-10049-XC0
Vis
3
65311-03G00-12Z
Rim,rr wheel(12
3
RIM, REAR WHEEL (12X7.5AT) (SILVER) [MODEL K4, FOR YFR, MODEL K6 FOR 3WX, MODEL K7 FOR 4YX,YU1]
4
09140-10021
Nut
5
09159-10012
Гайка
5 400 ₽/шт
6
64723-03G00
Washer,hub
6
64723-09F00
Washer,hub
7
09141-18010
Nut
7
09141-20006
NUT, HUB
8
04111-4040A
PIN
820 ₽/шт
9
54725-09F01
Cap,wheel cente
10
AXLE, REAR RH [MODEL K7]
10
64711-03G00
Axle,rear,r (Rear)
11
69211-38F00
Disc,rr.brake
12
09106-08155
BOLT(8X20)
2 390 ₽/шт
13
TIRE, REAR [MODEL K6]
13
TIRE, REAR [MODEL K4/K5]
13
TIRE, REAR (AT25X10-12) (DUNLOP) [MODEL K7]
14
43130-24A00
Ниппель
468 ₽/шт
