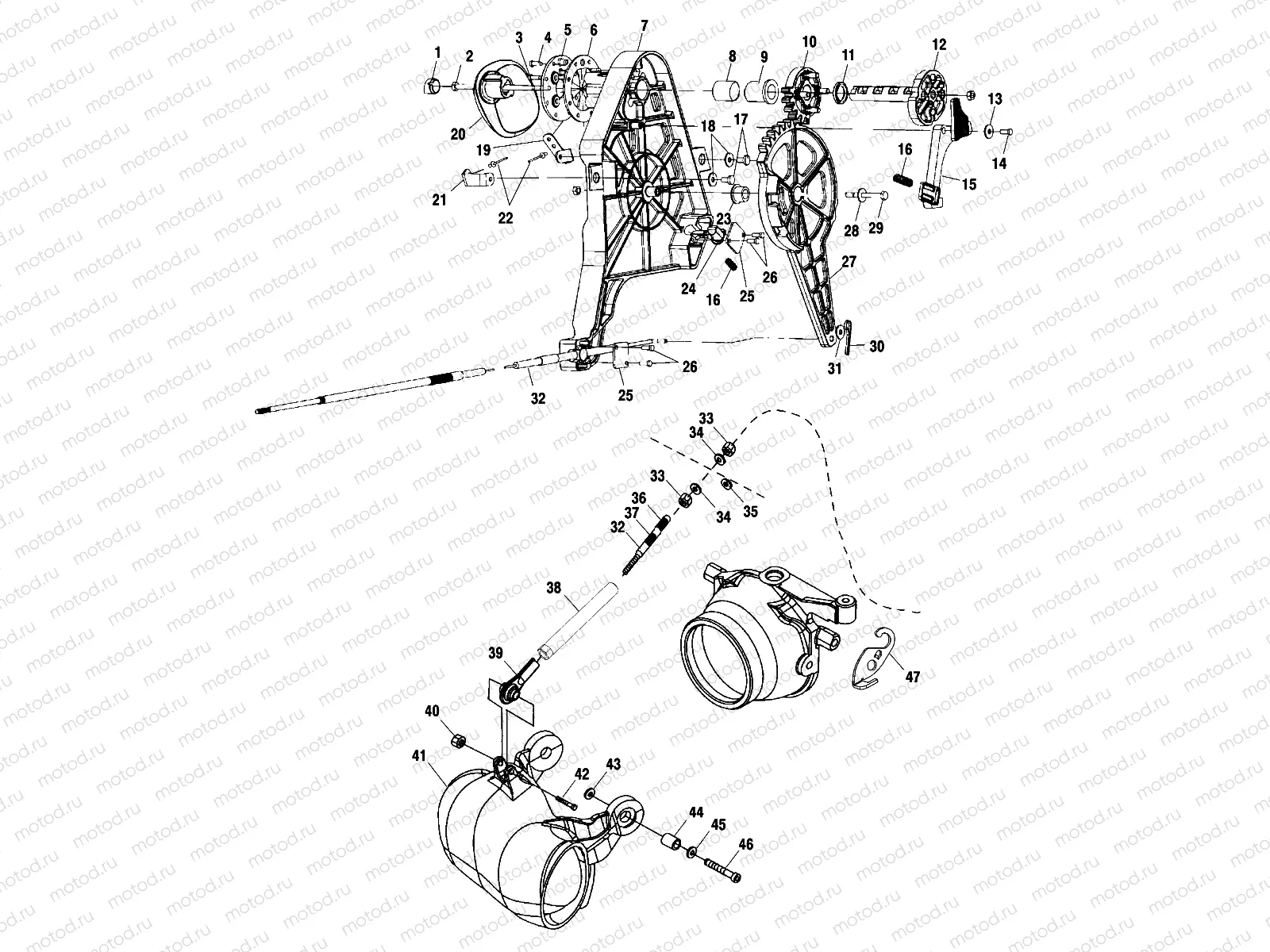

Главная Каталог товаров Polaris EPC 2000 Polaris PWC Polaris 2000 VIRAGE (W005197D) Polaris 2000 PWC REVERSE - W005197D (4955815581B005) | REVERSE - W005197D (4955815581B005)

REVERSE - W005197D (4955815581B005) | REVERSE - W005197D (4955815581B005)

REVERSE - W005197D (4955815581B005) | REVERSE - W005197D (4955815581B005)

Например: 5433677-070

1

5433677-070

CAP,REVERSE HANDLE,BLK

2

7516816

Vis

3

7517669

Vis

4

7661040

RIVET-POP 3/16(10)

5

5433646

FLANGE-BASE,REVERSE

6

5811982

GASKET-REVERSE,MS

7

5434973

PLATE-BASE RVS

8

5433911

BSHG-.750X1.00X1.00,ACETEL

9

5433910

BSHG-FLG,.750X1.00X1.00,ACETEL

10

5433645

PINION-REVERSE

11

5433674

BUSHING-CAN,REVERSE

12

5433675

SHAFT-CAM,REVERSE [No Longer Available]

13

7555839

WASHER, FLAT, S.S.(10)

14

7517331

SCREW(10)

15

5433872

"""ARM REVERSE LOCK"""

16

7041888

SPRING,COMPRESSION

17

7517717

SCR-M6X1.0X12 PH/PAN HD-SS (10

18

7556094

Rondelle

19

5244288

BRKT,REVERSE PLATE,FWD Substituted by 5245635

20

5433605-070

HANDLE-REVERSE,BLACK

21

5244289

BRKT,REVERSE PLATE,REAR

22

7621511

RIVET

23

5433647

BSHG-FLG,.500X.750X.563,AF

24

5433673

PLUNGER-DETENT,REVERSE

25

5240257

PLATE,CABLE

26

7512049

Vis

27

5433954

"""ARM-REVERSE"""

28

7555952

WASHER FLAT

29

7516806

Vis

30

7661010

PIN COTTER

31

7555837

WASHER, FLAT, S.S.(10)

32

7080899

CABLE,REVERSE

33

7542528

NUT (10)

34

1860103

Rondelle

35

7571625

Rondelle (Lock)

36

5411818

SEAL,ROD

37

5411819

SEAL,ROD

38

7080950

ASM-GUIDE TUBE REVERSE .75

39

7061062

ROD,END,1/4-28X.375

40

7547637

NUT-.25-20 HEX NK SS

41

5631036

GATE,REVERSE,DIRECTIONAL Substituted by 5434049

42

7517749

SCREW1/4-20X1.75HX(10)

43

7555866

Rondelle

44

5020683

Entretoise

45

7555874

WASHER FLAT S.S.

46

7515368

BOLT, S.S.(10)

47

5244902

BRKT-REVERSE TOP
