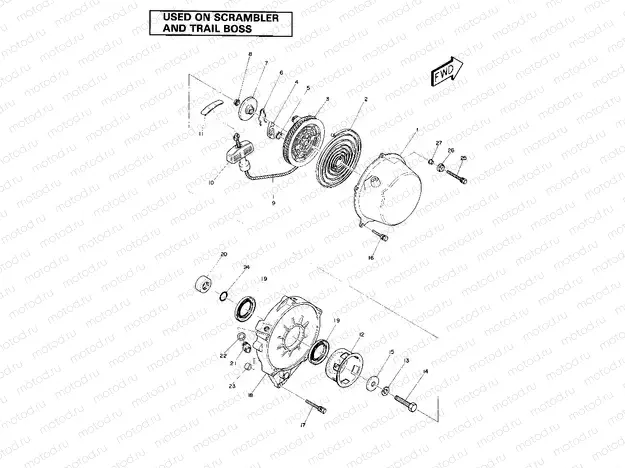

Recoil Starter Assembly (4911991199054A) | Recoil Starter Assembly (4911991199054A)

Recoil Starter Assembly (4911991199054A) | Recoil Starter Assembly (4911991199054A)

Например: 3083924

0

3083924

STARTER RECOIL COMPL.

1

3083654

CASE, STARTER [No Longer Available]

2

3083376

SPRING SPIRAL

3

3023393

ASM-RECOIL

4

3083378

RATCHET

5

3083463

SPRING RETURN

6

3083379

SPRING FRICTION

7

3083464

PLATE FRICTION

8

3083381

NUT FLANGE

8

3083657

ROPE ASM. [Item NotAvailable] (Incl. 9-11)

9

2870621

ROPE 100 FT NYL.STARTER

10

3083659

KNOB STARTER

11

3083660

CAP KNOB

12

3083661

PULLEY, STARTING [No Longer Available]

13

3080281

WASHER, SPRING(10)

14

3083662

Vis

15

3083663

Rondelle

16

3083664

BOLT&WASHER ASSY.

17

3083665

BOLT&WASHER ASSY. [No Longer Available]

18

3083764

HOUSING [No Longer Available] (Incl. 19,23) (Magneto)

19

3083742

SEAL, OIL

20

3083765

Entretoise

21

3083453

PLUG

22

3082717

GASKET-ALUM

23

3083669

BUSHING STARTER

24

3083744

O-Ring

25

3083217

BOLT&WASHER Substituted by 3083729

26

3083731

MOUNTING,RUBBER

27

3083732

Entretoise
