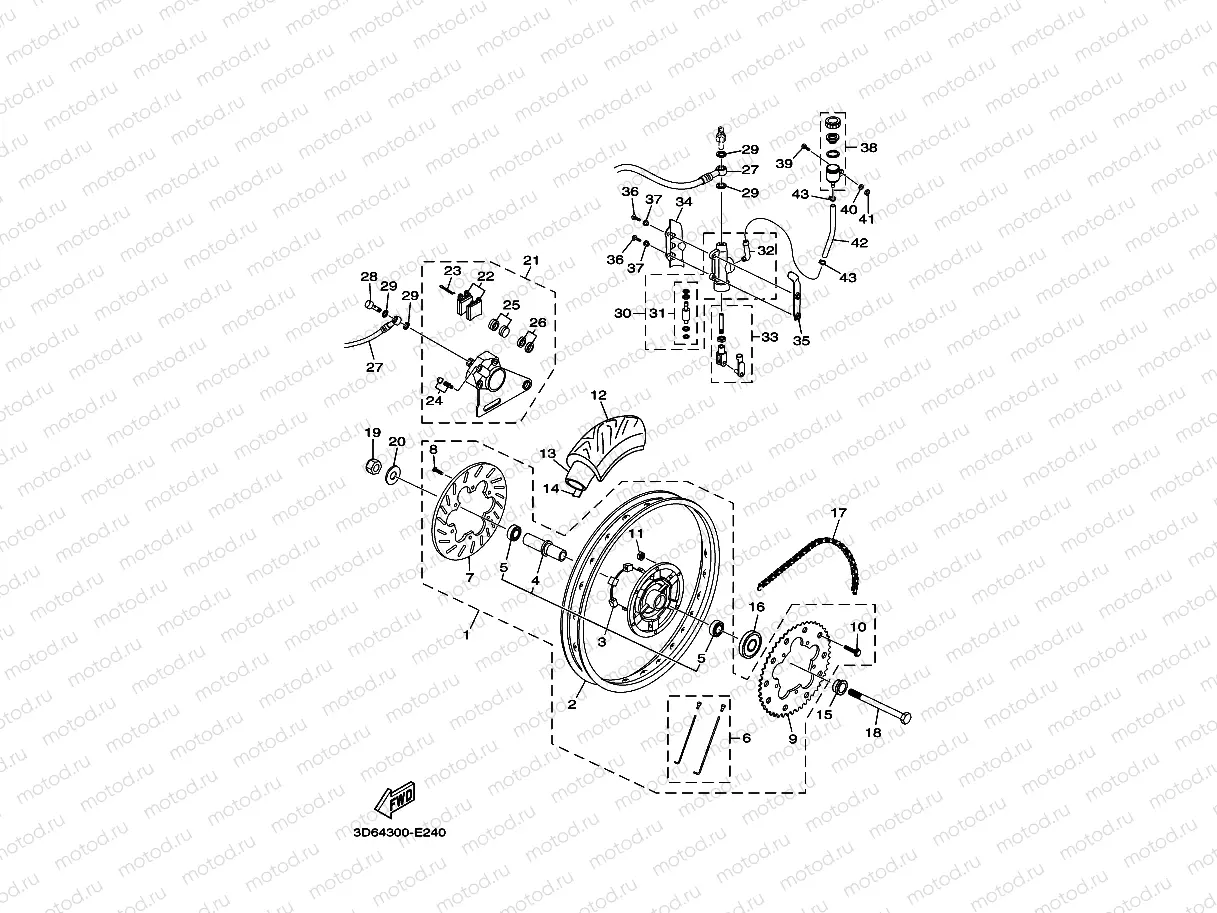

REAR WHEEL & BRAKE SYSTEM

REAR WHEEL & BRAKE SYSTEM
Например: 3D6-F5300-10
1
3D6-F5300-10
REAR WHEEL ASSY
2
1D5-F5344-00
RIM
3
1D4-F5310-00
HUB ASSY
4
1D4-F5383-00
SPACER, BEARING
5
1D4-F582M-00
BEARING
6
1D5-F5304-10
SPOKE SET, REAR (Rear)
7
1D4-F582W-00
isque de frein
8
1D4-F5821-00
Vis
9
3D6-F5445-10
SPROCKET, DRIVEN (48T)
10
1D4-F5818-00
BOLT, CALIPER
11
1D4-F5385-00
NUT, SPROCKET AXLE
12
3D6-F5308-10
REAR TIRE SET (130/70-17)
13
3D6-F510T-00
UBE (4.00-17)
14
1D5-F510U-00
BAND, RIM
15
3D6-F5317-01
Entretoise
16
3D6-F5319-00
SEAL, HUB DUST
17
3D6-F2269-11
Chaîne
18
1D4-F5381-00
AXLE, WHEEL
19
1D4-F2143-00
Nut
20
1D4-F2142-00
WASHER, SHAFT
21
3D6-F580W-00
Rear caliper
22
13C-F5911-00
Plaquette de frein
23
1D4-F5677-00
PIN, HOLD 1
24
1D4-F585H-00
SCREW,SET
25
3D6-F5814-20
PISTON, CALIPER
26
1D5-F5815-00
SEAL, PISTON
27
3D6-F5873-00
urite de frein
28
1D4-F244H-00
BOLT
29
1D4-F5147-00
Rondelle
30
1D4-F583V-00
Brake hydraulic pump
31
1D4-F580E-00
Brake hydraulic pump
32
1D4-F5885-00
JOINT
33
3D6-F5880-00
PUSH ROD COMP.
34
1D4-F586E-00
PROTECTOR, MASTER CYLINDER
35
3D6-F133F-00
BRACKET, MASTER CYLINDER
36
1D4-F4177-00
Vis
37
1D4-F1748-00
Entretoise
38
13D-F5804-00
RESERVE TANK ASSY.
39
13D-F5818-00
BOLT, CALIPER
40
1D4-E2456-00
Rondelle
41
1D4-E4775-00
Nut
42
1D4-F5874-00
pc - HOSE, BRAKE
43
1D4-F1823-00
Collier
