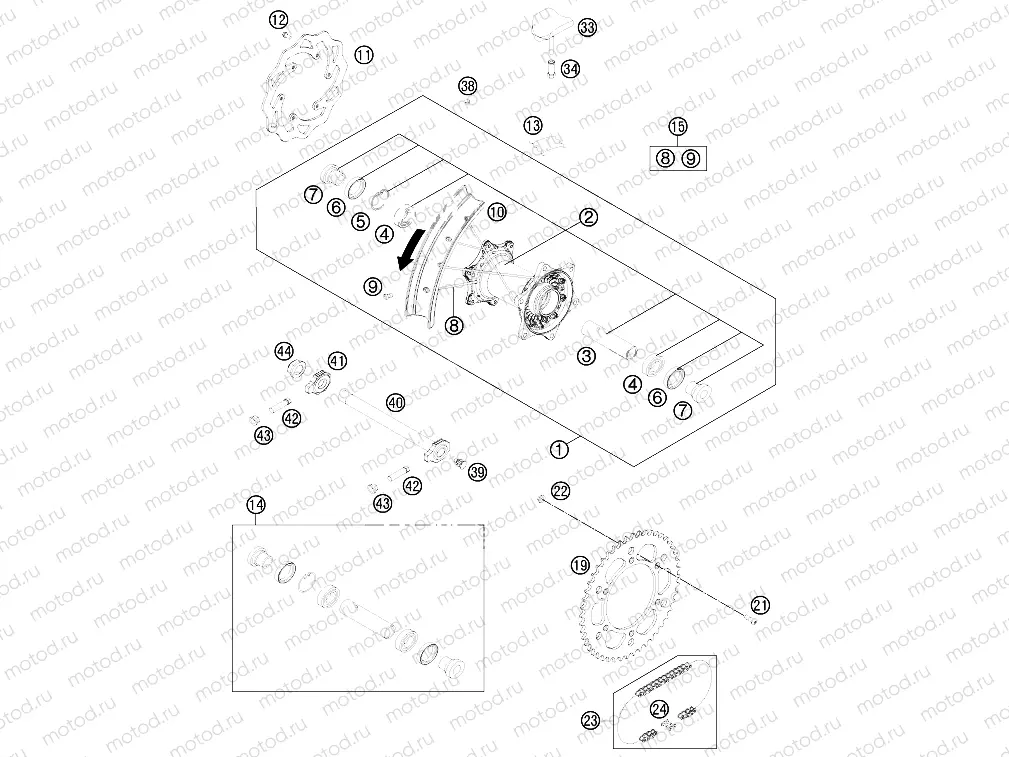

REAR WHEEL

REAR WHEEL

Например: 7711000104430

1

7711000104430

REARWHEEL CPL.2,15X19 EXCEL 11

2

78010010144

REAR WHEEL HUB CPL.

3

77710011000

BEARING DISTANCE TUBE 121,5MM

4

0625060058

Roulement

5

0472047175

CIRCLIP DIN0472-47X1,75

6

0760324771

Joint

7

78010016000

BUSHING FOR HUB 08

8

77110071205

SPOKE M4,5x205-19'' 11

9

77109072000

SPOKE NIPPLE M4,5 AL 11

10

7911007000030

RIM 2,15"X19" EXCEL BLACK

32 361 ₽/шт

11

77310060000

Disque de frein

12

59009062013

Vis (spec)

13

50310073200

RIM BAND 18'' AND 19''

14

78010015000

REAR WHEEL REP. KIT

15

00050000917

SPOKE KIT REAR ''19''

19

5901005104204

Rear sprocket 42t orange

10 058 ₽/шт

19

7771095104504

SPROCKET 45-T

19

7771095104804

SPROCKET 48-T

10 058 ₽/шт

19

7771095104904

SPROCKET 49-T

19

7771095105004

SPROCKET 50-T

19

5901005105104

Rear sprocket 51t orange

10 058 ₽/шт

19

7771095105204

SPROCKET 52-T

21

0019080266S

Vis (M8x26)

22

06923080003

Nut

23

50310165118

CHAIN 5/8X1/4'' MX

24

50310166000

CONNECTING LINK F. 50310165118

33

78110090200

Tyre locker 2,15"

34

50310090050

NUT FOR WHEEL HOLDER '96

38

55003135000

PLUG FOR RIM

39

50210086000

COVERING CAP SFL16

40

77310085044

WHEEL SPINDLE RE. CPL.265MM 07 (Rear)

41

50310084000

CHAIN TENSIONER R/S 2000

42

50304040100

screw M10x1.25x50 WS10

43

58414030000

Nut (M10x1,25)

44

50310099000

HEXAGON NUT M20X1,5 '98 (M20X1,5)
