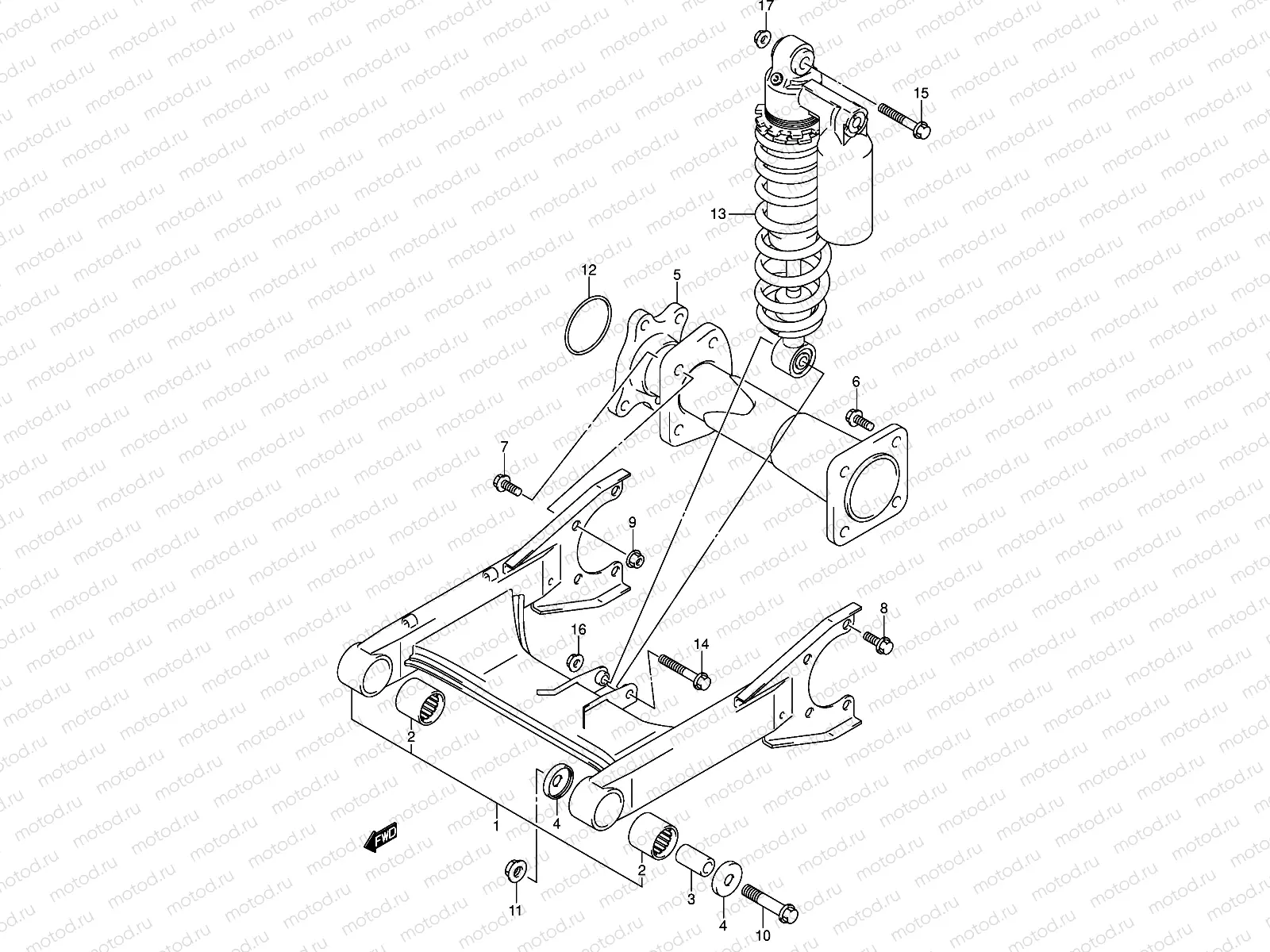

REAR SWINGINGARM (MODEL K4/K5)

REAR SWINGINGARM (MODEL K4/K5)
Например: 61100-21841-YD8
1
61100-21841-YD8
Swinging arm se
1 шт. в узле
2
09263-20120
Bearing(20X27X26)
1 421 ₽/шт
2 шт. в узле
3
61251-21G00
Spacer,rr swgar
2 шт. в узле
4
62624-08D01
Cover
1 292 ₽/шт
4 шт. в узле
5
61300-21G00-YD8
Housing,rear ax
1 шт. в узле
6
09103-10364
Vis
4 шт. в узле
7
09103-10216
Bolt,10x20
4 шт. в узле
8
09103-10313
BOLT, REAR FINAL GEAR (10X30)
4 шт. в узле
9
09159-10115
Гайка
289 ₽/шт
1 шт. в узле
10
09103-12072
Vis
2 шт. в узле
11
09159-12054
Гайка
840 ₽/шт
2 шт. в узле
12
09280-70005
Кольцо уплотнительное
418 ₽/шт
1 шт. в узле
13
ABSORBER ASSY, REAR SHOCK (RED) [MODEL K4, E33]
13
ABSORBER ASSY, REAR SHOCK (YELLOW) [MODEL K5, E33 FOR YU1]
13
62100-21G31-28W
Absorber assy,r
1 шт. в узле
13
62100-21G31-163
Absorber assy,r
1 шт. в узле
13
ABSORBER ASSY, REAR SHOCK (RED) [MODEL K4, E28]
13
ABSORBER ASSY, REAR SHOCK (WHITE) [MODEL K5, E33 FOR 30H]
14
09103-10213
BOLT(10X52)
2 820 ₽/шт
1 шт. в узле
15
09103-12042
Болт
4 070 ₽/шт
1 шт. в узле
16
09159-10115
Гайка
289 ₽/шт
1 шт. в узле
17
08319-3112A
Гайка
211 ₽/шт
1 шт. в узле
