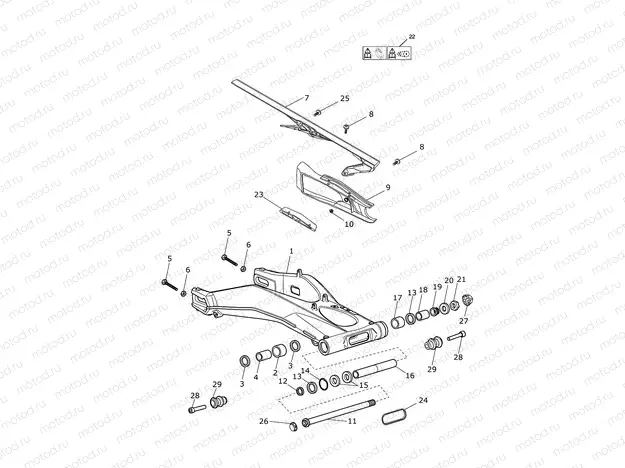

Rear Swingarm

Rear Swingarm

Например: T2050189

1

T2050189

Swingarm Spares Assy

2

T3800177

Bearing, Needle Roller, 17 24

3

T3600066

Oil Seal, 24 17 5

2 шт. в узле

4

T2053130

Sleeve, Ground, 17 10 30

5

T3330729

Screw, H/Hd, M8 x 55, Slv

2 шт. в узле

6

T3350303

Nut, M8, Silver

2 шт. в узле

7

T2050171

Chain Guard

8

T3330727

Vis (M6x20)

2 шт. в узле

9

T2050417

Chain Rubbing Strip

10

T3010061

Flanged Sleeve, M6 x 9 x 3.25

11

T2050460

Spindle, Swingarm

12

T2054063

Spacer, 25 x 17 x 8.5

13

T3600044

Oil Seal, 35 25 4

2 шт. в узле

14

T3500204

Circlip, Int, 35 x 1.5

15

T3800081

Bearing, Ball, 17 35 10

2 шт. в узле

16

T2051520

Spacer, Internal, 22 x184

17

T3800014

Roller bearing

18

T2054344

Sleeve, Ground, 25 x 17 x 37

19

T2051010

Swingarm Pivot Adjuster

20

T3551240

Washer, M16 x 34 x 3

21

T3350155

Locknut, Thin, M16

22

T3900092

Label, Chain & Tyres

23

T2050418

Rubber, Chain Rubbing Strip

24

T2052002

Grommet, Swinging Arm

25

T3330726

Screw, Btn/Hd, M6 x 12, Slv

26

T2051775

Spindle Finisher, S/arm, RH

27

T2051776

Spindle Finisher, S/arm, LH

28

T3051032

Screw, Cap/HD, M8 x 40, Slv

2 шт. в узле

29

T2050520

Paddock Stand Bobbin, Black

2 шт. в узле
