Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI LT-A750 King Quad SUZUKI LT-A750XK8 K8 (P17) SUZUKI (VIN: 5SAAR41A) REAR SUSPENSION ARM

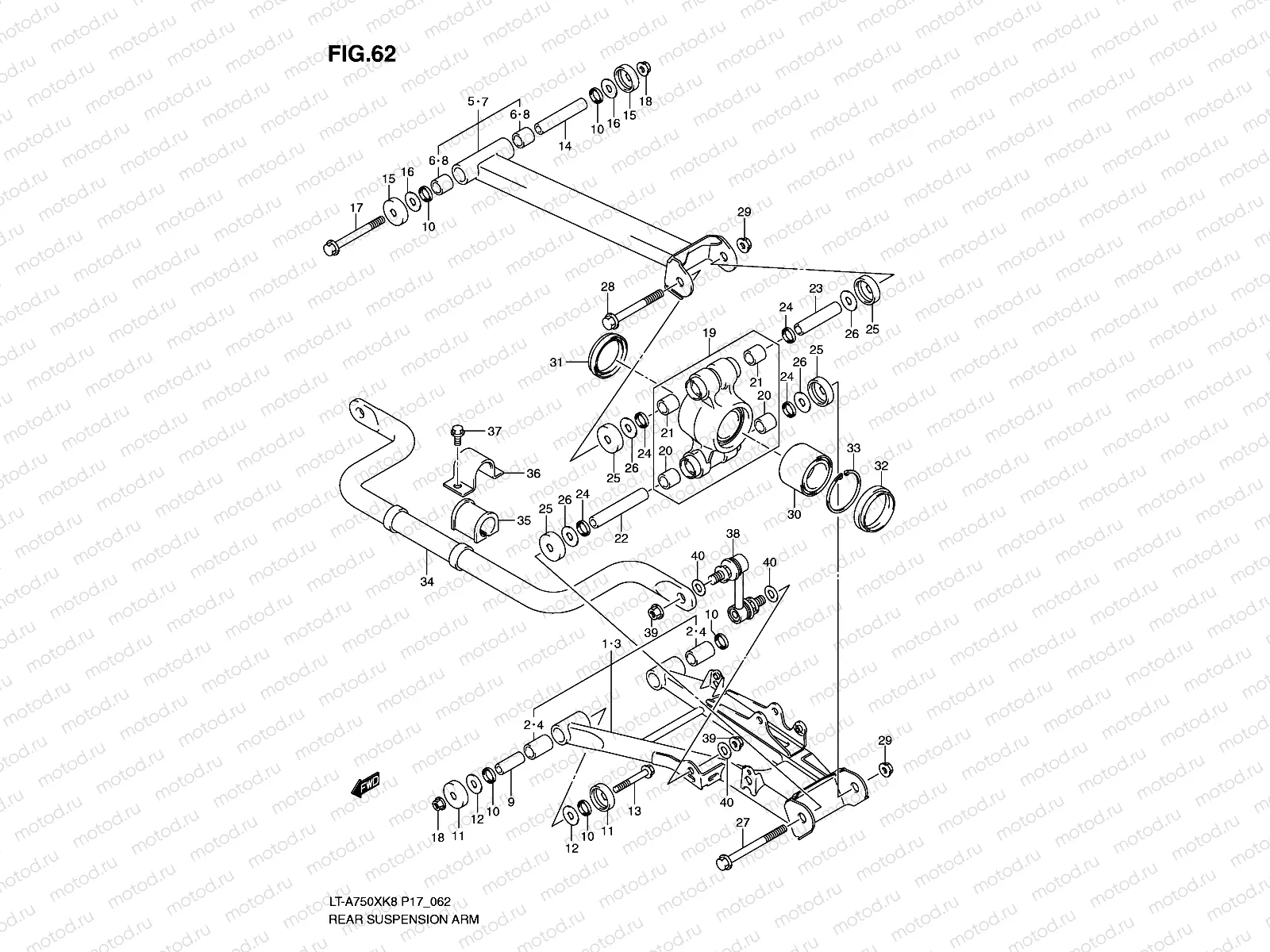

REAR SUSPENSION ARM

REAR SUSPENSION ARM

Например: 61510-31821

1

61510-31821

Arm set,rr susp

2

61551-31G10

Bush,rr knuckle

3

61520-31821

Arm set,rr susp

4

61551-31G10

Bush,rr knuckle

5

61530-31830

Arm set,rr susp

6

51236-31G00

Bush,suspension

7

61540-31830

Arm set,rr susp

8

51236-31G00

Bush,suspension

9

61552-31G10

Spacer,rr spnsn

10

52454-45G00

Seal,spnsn arm

11

51255-18900

Dust seal

12

08211-10281

Washer,thrust

13

09103-10392

BOLT(10X70)

308 ₽/шт

14

61554-31G00

Entretoise

15

51255-31G00

Seal,rr spnsn a

16

08211-10281

Washer,thrust

17

09103-10388

BOLT(10X120)

3 520 ₽/шт

18

09159-10115

Гайка

289 ₽/шт

19

61600-31820

Knuckle set,rr

20

51236-31G00

Bush,suspension

21

51236-31G00

Bush,suspension

21

61551-31G10

Bush,rr knuckle

22

61554-31G00

Entretoise

23

61553-31G10

Spacer,rr knuck

24

52454-45G00

Seal,spnsn arm

25

51255-18900

Dust seal

26

08211-10281

Washer,thrust

27

09103-10388

BOLT(10X120)

3 520 ₽/шт

28

09103-10387

BOLT(10X96)

5 320 ₽/шт

29

09159-10115

Гайка

289 ₽/шт

30

43440-58J01

Bearing,front

31

61615-31G00

Seal,rear hub i

32

61616-31G00

Seal,rear hub o

33

08331-4162A

Circlip

34

61651-31G10

Bar,rr stabiliz

35

61652-34K00

Bush,rr stabili

36

42415-66D00

PLATE, RR STABILIZER

37

09103-08570

Bolt,front Grip

1 840 ₽/шт

38

61660-31G20

Joint comp,rr s

39

09159-10223

Nut

39

08319-3110B

Гайка

1 920 ₽/шт

40

09160-10039

Шайба

119 ₽/шт
