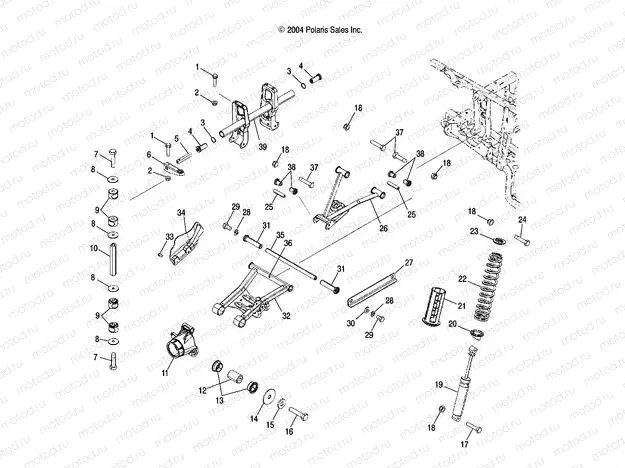

REAR SUSPENSION - A05MH68AC/AS/AT/AU/AW (4994279427D01) | REAR SUSPENSION - A05MH68AC/AS/AT/AU/AW (4994279427D01)

REAR SUSPENSION - A05MH68AC/AS/AT/AU/AW (4994279427D01) | REAR SUSPENSION - A05MH68AC/AS/AT/AU/AW (4994279427D01)

Например: 7518341

1

7518341

BOLT-5/16-18X1-3/4 HXFLNG GR5

2

7542343

NUT FLANGE

3

7555939

Rondelle

4

5438901

BUSHING-STABILIZER TUBE BLK

5

5334114-329

BAR-STABILIZER TUBE E-COAT

6

1543119-067

WELD-ARM STABILIZER BAR BLK

7

7517231

Vis

8

7555761

Rondelle

9

5432598

BUSHING STAB.LINK

10

5020827

ROD-LINKAGE STABILIZER

11

5134206

CARRIER-BEARING WHEEL(MACH)

12

5632291

BUSHING-BRNG CARRIER PM 7/16

13

5438902

BUSHING-CONTROL LOWER BLK

14

7555740

Rondelle

15

7552614

Rondelle (Lock)

16

7517873

BOLT-7/16-14 UNC-2AX2.75 GR5

17

7515415

Vis

18

7542439

Nut (SELF-LOCKING)

19

7043100

SHOCK-RR IRS

19

7041959

SHOCK-RR IRS

20

5631014

CAM SPRING ADJUST 1-3/8

20

5630551

CAM ADJUST SPRING

21

5433551

SLEEVE SHOCK PROTECTOR

22

7042311-067

SPRING-COMP REAR BLK

22

7043091-067

SPRING-COMP REAR 100# 15LG BLK

22

7043091-067

SPRING-COMP REAR 100# 15LG BLK

22

7042311-067

SPRING-COMP REAR BLK

23

5251753

RETAINER-SPRING STEEL

24

7515433

Vis

25

5020826

SHAFT A-ARM SHORT

26

1014321-293

WELD-UPPER CONTROL ARM RH RED

26

1014320-067

WELD-UPPER CONTROL ARM LH BLK

26

1014321-067

WELD-UPPER CONTROL ARM RH BLK

26

1014320-293

WELD-UPPER CONTROL ARM LH RED

27

5245140-067

STRAP-BLK

28

7552603

Rondelle (Lock)

29

7512492

Vis

30

7555832

Rondelle

31

5436973

BUSHING-A-ARM LONG 102.36MM(10

32

1015889-067

WELD-CONTROL LOWER RH BLK

32

1015889-293

WELD-CONTROL LOWER RH RED

32

1015888-293

WELD-CONTROL LOWER LH RED

32

1015888-067

WELD-CONTROL LOWER LH BLK

33

7512084

Vis

34

5434890-1038

SHIELD-CV REAR LH BLK

34

5434891-1038

SHIELD-CV REAR RH BLK

35

5133806

SHAFT-A-ARM

36

7080433

FITTING LUBRICATION THREADED(1

37

7515472

Vis

38

5439270

BUSHING-A-ARM-SHORT BLK

39

1541801-067

STABILIZER SUPPORT BLK
