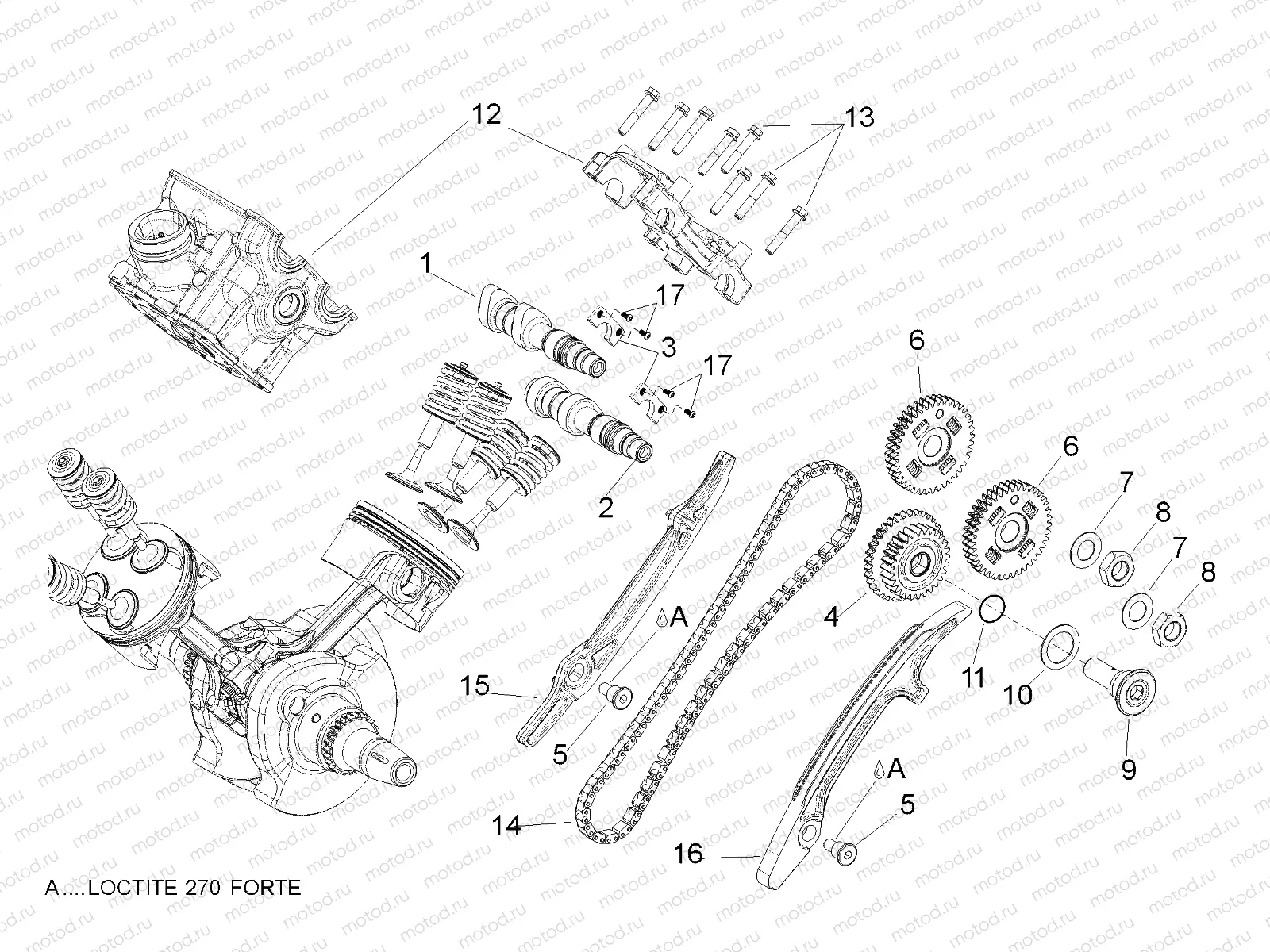

Rear cylinder timing system

Rear cylinder timing system
1
82979R
ear intake camshaft
2
82980R
Camshaft (Rear exhaust)
3
874176
Axial lock plate
4
8745964
Timing system gear cpl.
5
974228
Spacer screw
6
8499104
Rear timing system gear cpl.
7
874744
Thrust washer
8
874752
Nut M15x1 SX
9
874591
Vis (spec)
10
849817
Safety washer
11
873233
Gasket ring
12
83036R4
Cylinder head
12
83038R
Cylinder head
12
83036R4
Cylinder head
13
B016191
30 pc - Vis
13
878439
Torx convex big end screw
14
849827
Chaîne distribution
15
871798
Guide de chaîne
16
871748
Glissiére chaine
17
874185
Vis

Узлы для Dorsoduro 750 APRILIA DORSODURO 750 (VIN: ZD4SM000, ZD4SMA00, ZD4SMC00, ZD4SMC01)
