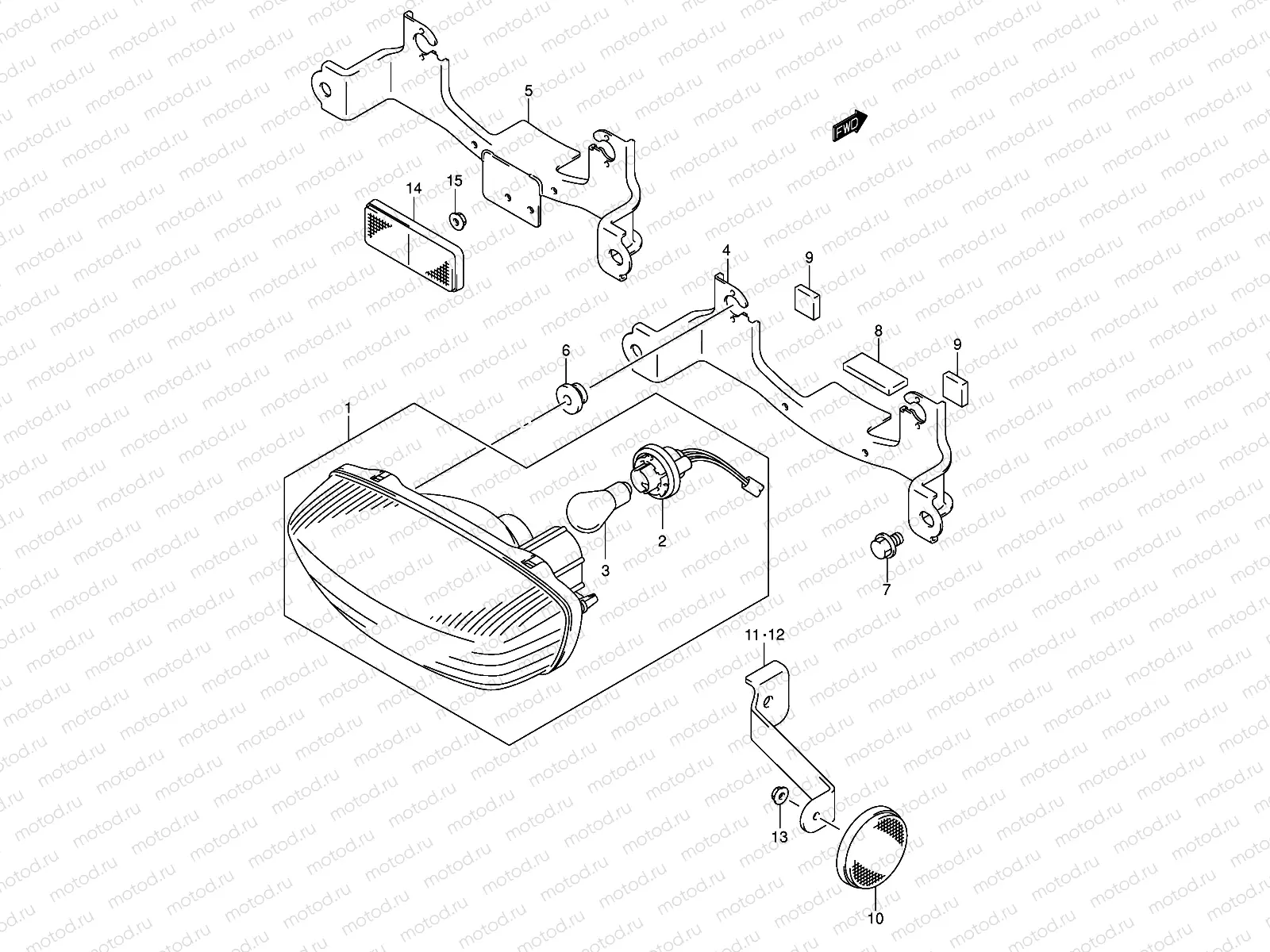

REAR COMBINATION (MODEL K5/K6)

REAR COMBINATION (MODEL K5/K6)
Например: 35710-03G30
1
35710-03G30
Taillight assy.
1 шт. в узле
2
35718-03G30
Socket & bulb
1 шт. в узле
3
40503-00838-069
P21/5w,5w, bay1 (12V 21/5W BAY15d)
1 шт. в узле
4
35726-05G00
BRACKET. REAR COMB LAMP
1 шт. в узле
5
BRACKET, REAR COMB LAMP [E28]
6
09320-06024
Damper
2 шт. в узле
7
01550-08123
BOLT, BRACE REAR
2 шт. в узле
8
33652-05G10
CUSHION,RR LAMP(25X55X8)
168 ₽/шт
1 шт. в узле
9
33652-05G20
CUSHION,RR LAMP(17X17X12)
170 ₽/шт
2 шт. в узле
10
35970-14A10
REFLEX REFLECTOR,RR
1 052 ₽/шт
2 шт. в узле
11
BRACKET, REAR SIDE RR RH [E28]
12
BRACKET, REAR SIDE RR LH [E28]
13
08316-1005A
Гайка
85 ₽/шт
1 шт. в узле
14
35970-07F01
СВЕТООТРАЖАТЕЛЬ БАМПЕРА ЗАДНЕГО
1 173 ₽/шт
1 шт. в узле
15
08316-1005A
Гайка
85 ₽/шт
1 шт. в узле
