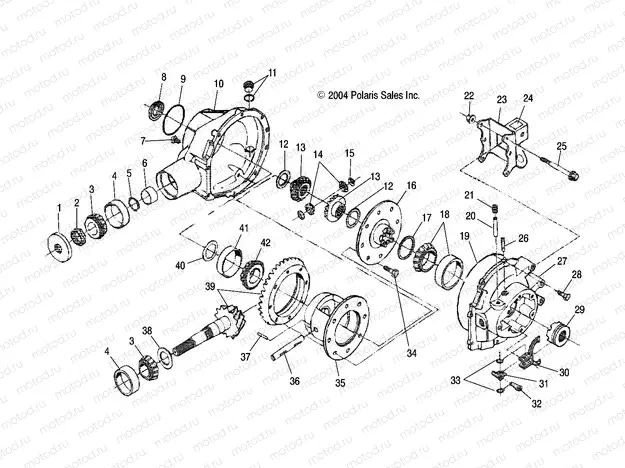

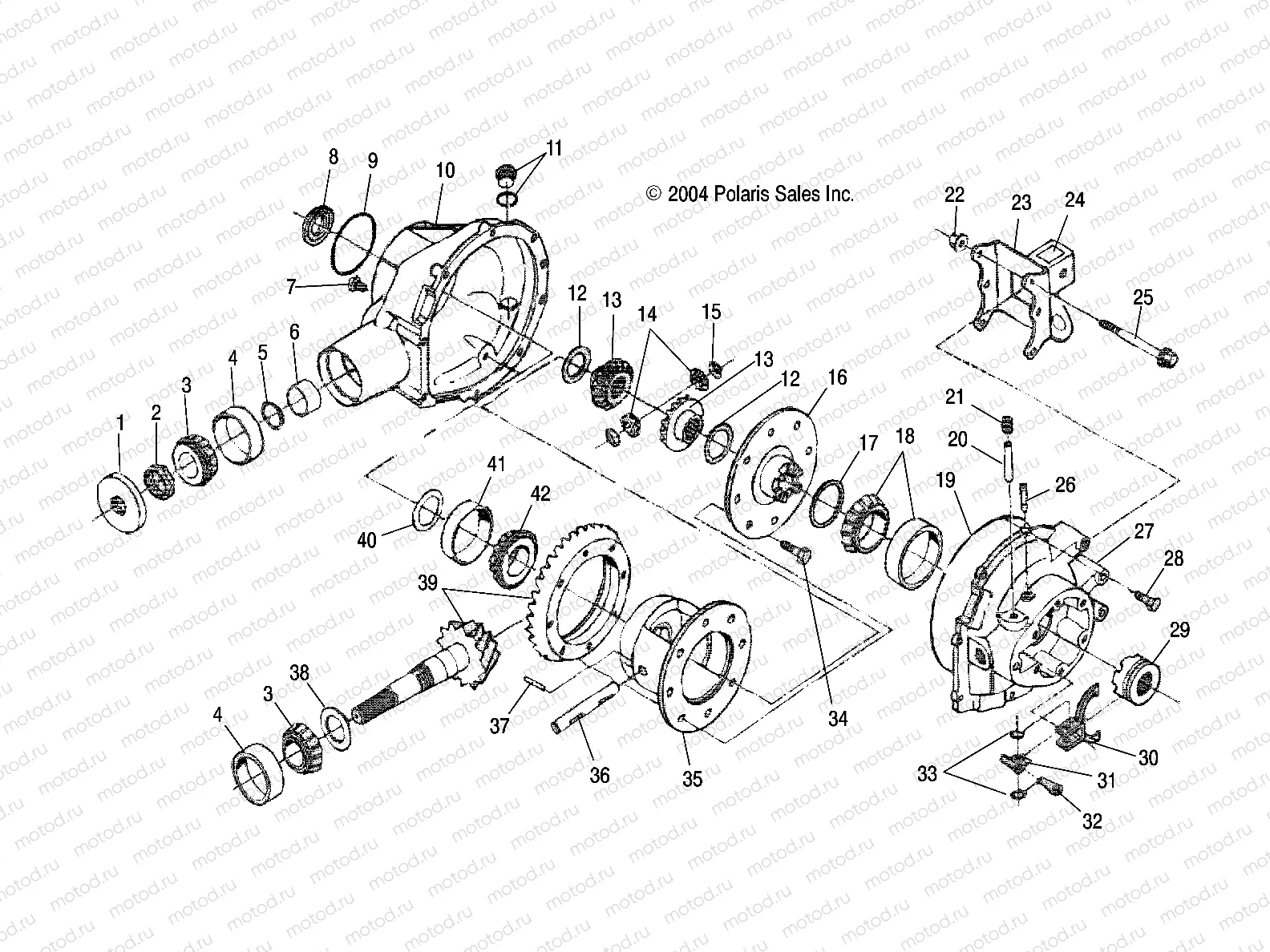

REAR CARRIER - A04JD50AA/AB/CA (4997869786C02) | REAR CARRIER - A04JD50AA/AB/CA (4997869786C02)

REAR CARRIER - A04JD50AA/AB/CA (4997869786C02) | REAR CARRIER - A04JD50AA/AB/CA (4997869786C02)

Например: 3610102

1

3610102

SEAL-OIL PINION 026HH102

2

7547243

NUT-PINION 026HN104

3

3514432

BEARING-CONE PINION 585974

4

3514431

BEARING-CUP PINION 3514431

5

2875332

KIT-PINION SHIM

6

5133762

SPACER-BEARING PINION 026HS102

7

5133731

PLUG-DRAIN

8

3610101

SEAL-OIL SHAFT

9

5412339

O-RING 026HH104

10

5133765

HOUSING-HALF CARRIER 026CH100

11

5133736

PLUG-FILL/CHECK

12

7556268

Washer, Thrust, Side Gear

13

5133767

Gear, Side, Differential

14

5133768

Gear, Pinion, Mate, Differential

15

7556267

Washer, Thrust, Pinion

16

5133758

Cover, Half, Differential Case

17

2875333

KIT-DIFFERENTIAL SHIM

18

3514435

BEARING-TAPERED ROLLER026HD101

19

5412338

O-RING-HOUSING HALVES 026HH103

20

5133755

SHAFT-PIVOT SHIFT YOKE026SS100

21

7518171

SCREW-SET 026HM106

22

7547242

NUT-HEX FLANGED 026HN105

23

1014155

Asm., Hitch

24

7170910

Decal, Hitch

25

7518175

Vis

26

7052334

VENT-TUBE 026HN106

27

5133764

COVER-HALF CARRIER 026CH102

28

7518172

Vis

29

5133757

Gear, Clutch

30

5133759

YOKE-SHIFT 026SV100

31

7042209

SPRING-LEVER SHIFT 026HE100

32

5133760

LEVER-SHIFT 026SV101

33

7042210

SPRING-RETURN SHIFT 026HE101

34

7518173

BOLT-HEX 41221

35

5133777

Case, Half, Differential

36

5133769

PIN-CROSS DIFF 026DP100

37

3234487

PIN-SPRING(500596-15)

38

2875332

KIT-PINION SHIM

39

1341454

ASM-HYPIOD GEAR 0266A100X

40

2875333

KIT-DIFFERENTIAL SHIM

41

3514433

BEARING-DIFF 585911

42

3514434

BEARING-CONE DIFF 550433
