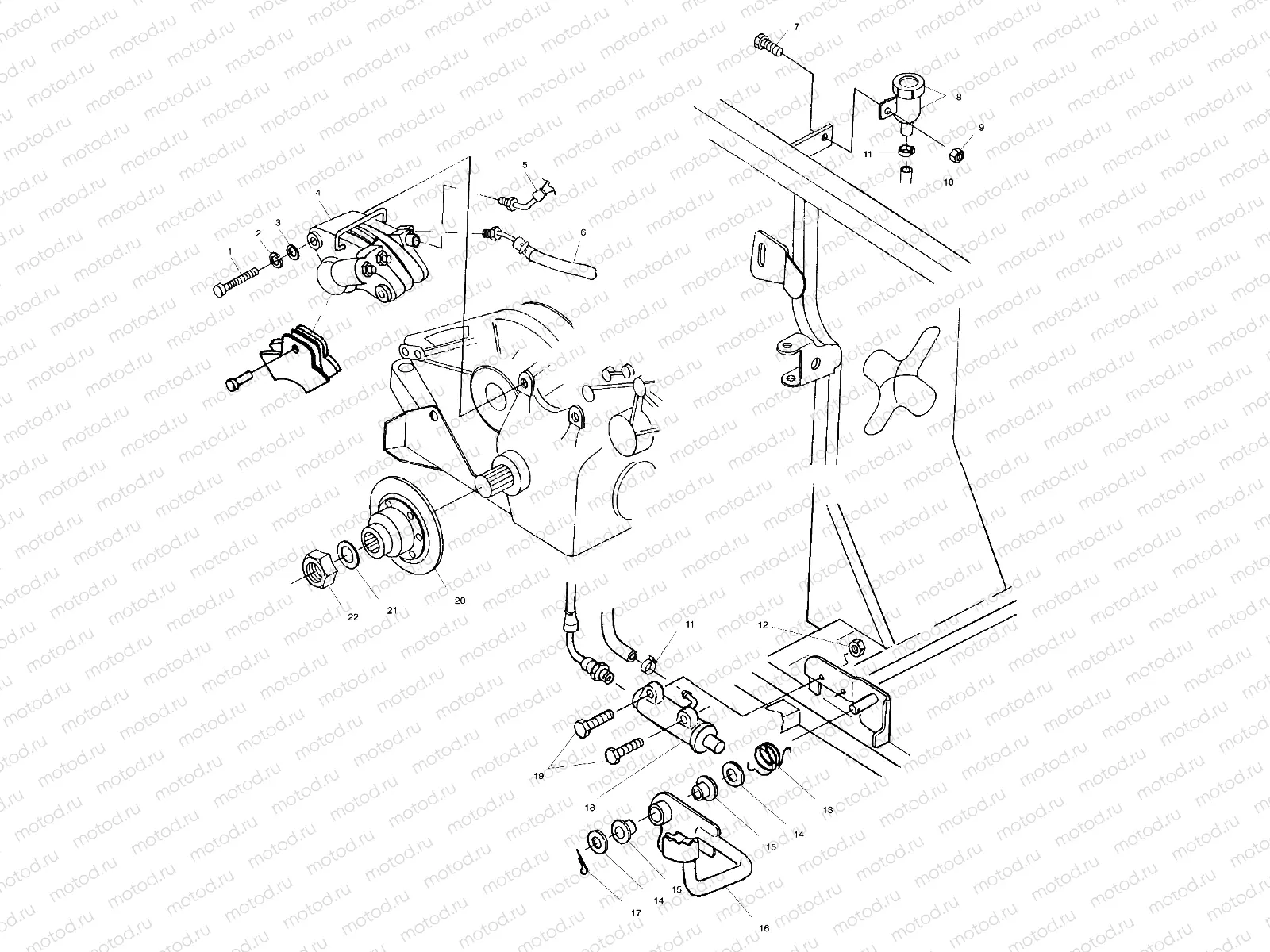

Главная Каталог товаров Polaris EPC 2001 Polaris ATV Polaris 2001 SPORTSMAN 500 DUSE (A01CH50AD) Polaris 2001 ATV REAR BRAKE/FOOT PEDAL - A01CH50AD (4960026002C009) | REAR BRAKE/FOOT PEDAL - A01CH50AD (4960026002C009)

REAR BRAKE/FOOT PEDAL - A01CH50AD (4960026002C009) | REAR BRAKE/FOOT PEDAL - A01CH50AD (4960026002C009)

REAR BRAKE/FOOT PEDAL - A01CH50AD (4960026002C009) | REAR BRAKE/FOOT PEDAL - A01CH50AD (4960026002C009)

Например: 7515497

1

7515497

Vis

2

7552603

Rondelle (Lock)

3

7555806

WASHER FLAT

4

2201428

BLEEDER REPLACEMENT KIT

4

2201181

PISTON STEPPED BORE

4

1910553

ASM-CALIPER BRAKE RR DH1P AFT

4

2201180

Kit de réparation pour de frein

4

2202411

KIT REAR.BRAKEPAD HVY.DUTY

5

1930853

LINE,R.BRAKE,WWOOD

6

1910305

LINE BRAKE CALIPER W/FTNGS.

7

7512240

Vis

8

1930854

RESERVOIR ASM R.BRAKE

9

7542153

NUT NYLOK FLANGED

10

1911267-790

HOSE-RESERVOIR BRAKE 790MM

11

7080003

CLAMP HOSE

12

7542122

NUT-NYLOK

13

7041750

SPRING-TORSION BRAKE

14

7555919

Rondelle

15

5431107

BUSHING PEDAL PIVOT

16

1910280-067

ROD,BRAKE,BLK.

17

7661401

PIN COTTER

18

1911113

ASM-MASTER CYLINDER BRAKE REAR

19

7512247

Vis

20

1910188

DISC ASM BRAKE

21

7571620

WASHER SPRING

22

7547046

NUT NYLOC
