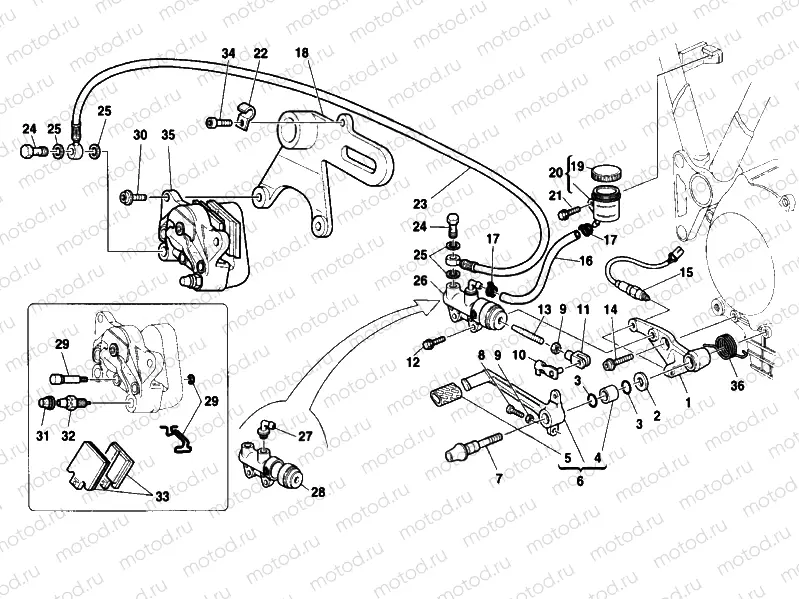

REAR BRAKE SYSTEM » BRAKING SYSTEM

REAR BRAKE SYSTEM » BRAKING SYSTEM
Например: 82910781A
1
82910781A
BRACKET, REAR MASTER CYLINDER
2
85210541B
pc - Rondelle (10.2x20x1)
3
88450441A
Seeger
4
71210341A
pc - BUSH
5
76410112A
COVER PEDAL
6
45720081A
Pédale de frein
7
82110911B
REAR BRAKE PED.CONT.PIN SS/06
8
800067981
.THREADED DOWEL
9
60N115062
pc - Nut
10
82110962A
PERNO FORCELLINA
11
18410051A
.FORK HEADS DIN 71752
12
77210601A
pc - Vis
13
11710252A
BRAKE CONTROL ROD
14
77157542B
pc - Vis
15
53940035B
Commutateur de feu-stop
16
87710661A
PIPE
17
74140431A
Collier
18
82510181A
CALIPER HOLDER BRACKET
19
89340241A
.TANK CAP
20
58540311A
RESERVOIR, BRAKE FLUID
21
77250968B
pc - Vis (M6x10)
22
82710871B
.PLATE
23
61940162B
Durite de frein
24
77913662AB
. SCREW, SPECIAL
25
85250241A
Rondelle
26
62540061A
Brake hydraulic pump
27
63140081A
.JOINT, HOSE
28
62640131A
.DUST COVER
29
61240161A
.PAD PINS OVERHAUL KIT
30
77157238B
pc - Vis
31
61240081A
.DUST PLUG
32
63140161A
.FRONT CALIPER DRAIN SCREW
33
61340211A
Plaquette de frein
34
77150638B
pc - Vis
35
61140082A
Rear caliper
36
79910831B
Spring
37
82110521AB
.PIN PEDAL
