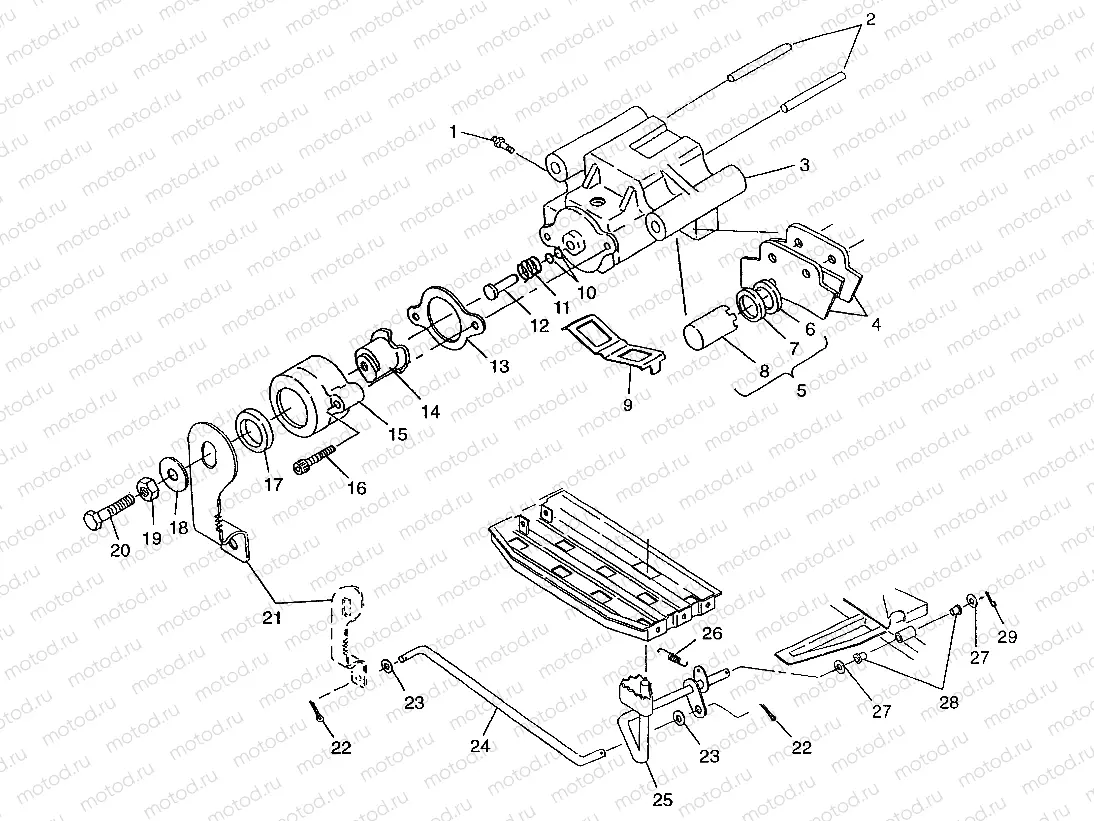

Главная Каталог товаров Polaris EPC 1997 Polaris ATV Polaris 1997 MAGNUM 2X4 (W97AA42A) Polaris 1997 ATV REAR BRAKE Magnum 2X4 W97AA42A (4940704070C001) | REAR BRAKE Magnum 2X4 W97AA42A (4940704070C001)

REAR BRAKE Magnum 2X4 W97AA42A (4940704070C001) | REAR BRAKE Magnum 2X4 W97AA42A (4940704070C001)

REAR BRAKE Magnum 2X4 W97AA42A (4940704070C001) | REAR BRAKE Magnum 2X4 W97AA42A (4940704070C001)

Например: 7080352

1

7080352

SCREW BLEEDER

2

7661820

Dowel pin

3

9990005

Crankcase, RH

4

2200464

KIT REAR.BRAKEPAD MED.DUTY

4

2200899

KIT REAR.BRAKEPAD HVY.DUTY

5

2200463

KIT PISTON&SEAL

7

LR--

CALIPER, BRAKE, RH

9

5240993

SPRING,ANTI-RATTLE (Extruded)

10

5411432

O RING

11

7041219

SPRING BRAKE COMP.

12

5020666

PIN,BRAKE CALIPER

13

5830009

GASKET BRAKE

14

5630651

RAMP,MOVE.BRAKE(D/C)

15

5630652

RAMP,STAT.BRAKE(D/C)

16

7512173

SCREW(10)

17

3610026

SEAL BRAKE

18

7555828

WASHER SPRING

19

7542129

Nut

20

7515145

Vis

21

5240624

ARM,BRAKE CALIPER

22

7661203

PIN COTTER

23

7555806

WASHER FLAT

24

5224531

ROD, BRAKE

25

1910144-067

FOOTBRAKE,BLK.

26

7042029

Spring

27

7555919

Rondelle

28

5431107

BUSHING PEDAL PIVOT

29

7661401

PIN COTTER
