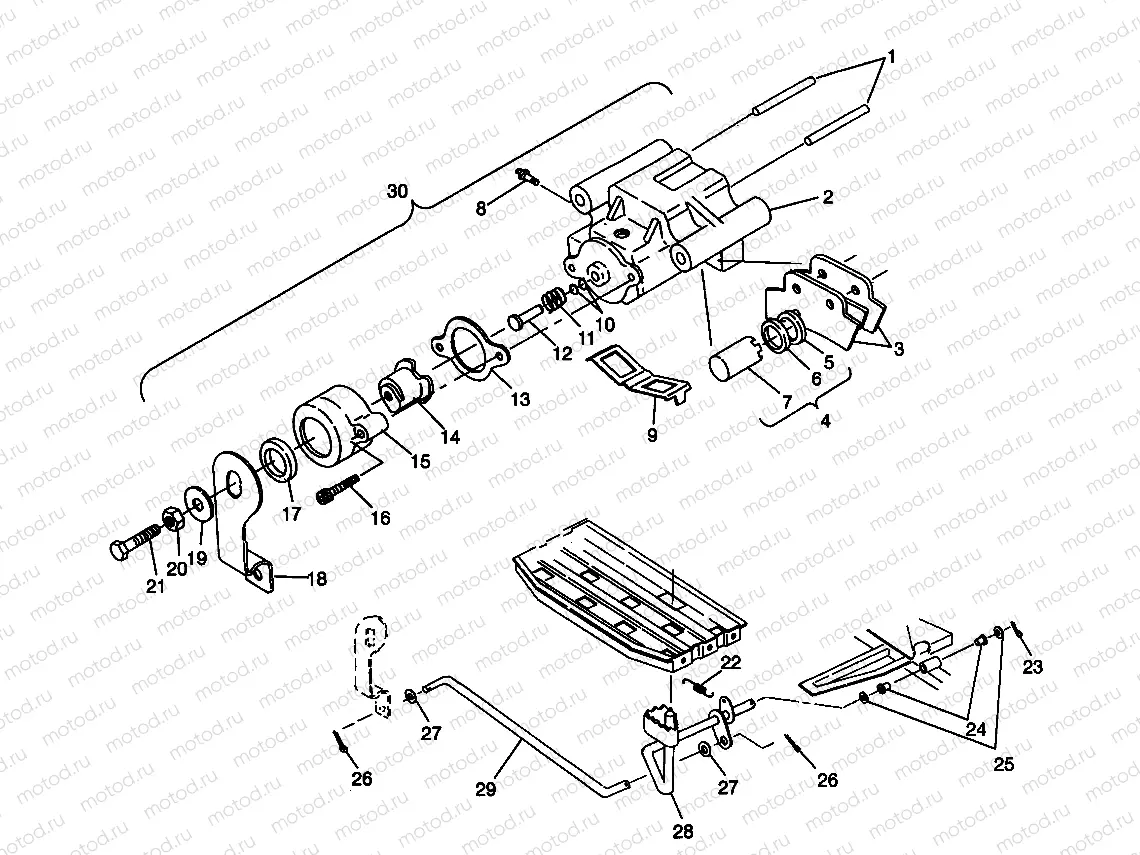

Главная Каталог товаров Polaris EPC 1995 Polaris ATV Polaris 1995 TRAIL BLAZER (W957221) Polaris 1995 ATV REAR BRAKE ASSEMBLY Trail Blazer W957221 (4930363036B014) | REAR BRAKE ASSEMBLY Trail Blazer W957221 (4930363036B014)

REAR BRAKE ASSEMBLY Trail Blazer W957221 (4930363036B014) | REAR BRAKE ASSEMBLY Trail Blazer W957221 (4930363036B014)

REAR BRAKE ASSEMBLY Trail Blazer W957221 (4930363036B014) | REAR BRAKE ASSEMBLY Trail Blazer W957221 (4930363036B014)

Например: 7661820

1

7661820

Dowel pin

2

9990005

Crankcase, RH

2

9990005

Crankcase, RH

3

2200464

KIT REAR.BRAKEPAD MED.DUTY

4

2200463

KIT PISTON&SEAL

5

LR--

CALIPER, BRAKE, RH

7

2200463

KIT PISTON&SEAL

8

7080352

SCREW BLEEDER

9

5240993

SPRING,ANTI-RATTLE (Extruded)

9

5222232

SPRING,ANTI-RATTLE

10

5411432

O RING

11

7041219

SPRING BRAKE COMP.

12

5020666

PIN,BRAKE CALIPER

13

5830009

GASKET BRAKE

14

9990000

Suspension, Rear

15

9990000

Suspension, Rear

16

7512173

SCREW(10)

17

3610026

SEAL BRAKE

18

5240624

ARM,BRAKE CALIPER

19

7555828

WASHER SPRING

20

7542129

Nut

21

7515145

Vis

22

7042029

Spring

23

7661401

PIN COTTER

24

5431107

BUSHING PEDAL PIVOT

25

7558702

WASHER THRUST

26

7661203

PIN COTTER

27

7555806

WASHER FLAT

28

1910144-067

FOOTBRAKE,BLK.

29

5224531

ROD, BRAKE

30

1910180

CALIPER ASM,R.BRAKE Substituted by 1910224 (Extruded) (Incl. 1-21)

30

1910156

CAL.ASM,REAR BRAKE Substituted by 1910180 (Incl. 1-22)
