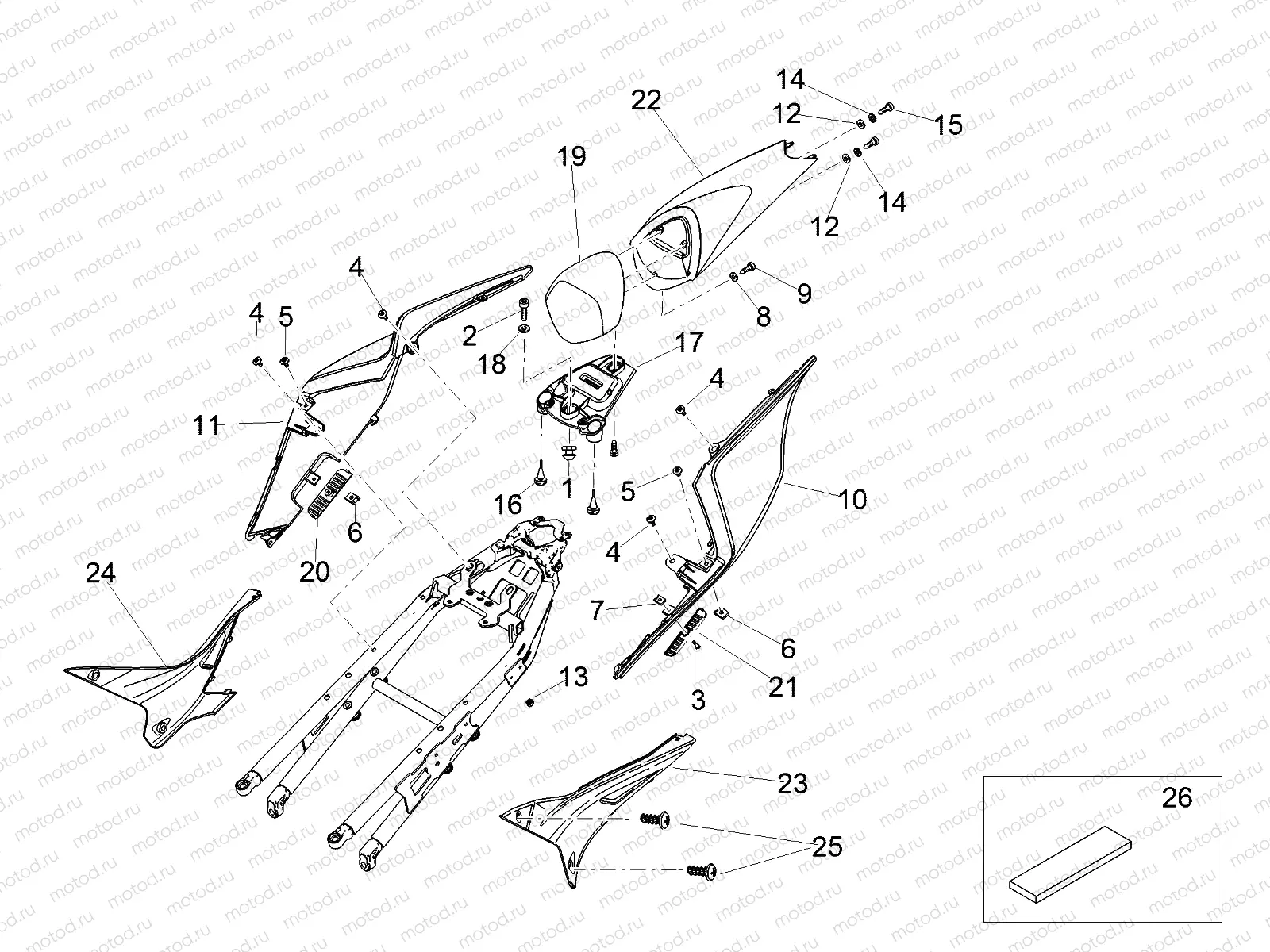

Rear body I

Rear body I
Например: 893259
1
893259
Pin
2
AP8152043
Vis
3
AP8121184
0 pc - Vis
4
AP8152302
Vis
5
AP8150538
pc - Vis (M5x10)
6
AP8102375
Clip nuts (M5)
7
AP8102381
pc - Clip M4 (M4)
8
AP8144565
pc - Nylon washer
9
AP8150421
pc - Vis
10
2H003015000EU
Lleft tail fairing pulsar grey version
11
2H003014000EU
Right tail fairing pulsar grey version
12
AP8120592
pc - Rondelle
13
AP8152299
0 pc - Nut
14
AP8150450
pc - Washer for shafts D5 (D5)
15
AP8150413
Vis
16
AP8220238
6 pc - Damper
17
858838
Saddle cover base
18
AP8150158
pc - Rondelle (4,3x9x0,8)
19
893112
Cushion
20
893108
Net panel (r)
21
893109
Net panel (l)
22
2H003016000EU
Saddle cover, grey
23
2B003815
LH side panel
24
2B003816
RH side panel
25
896174
Vis
26
AP8120657
Hose clamp 4.5X280
