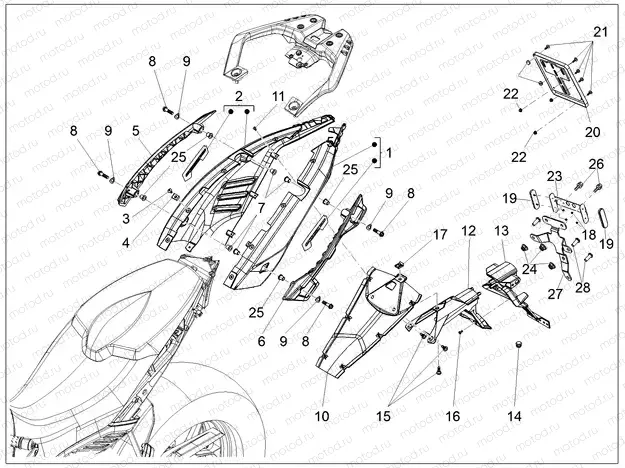

Rear body

Rear body
Например: 2H000062000BM
1
2H000062000BM
LH rear fairing, white
1
2H000125000XRC
LH rear fairing, red
1
2H000104000YE5
LH rear fairing, grey
2
2H000124000XRC
rear fairing, red
2
2H000061000BM
RH rear fairing, white
2
2H000103000YE5
RH rear fairing, grey
3
896174
Vis
4
248419
0 pc - Clip nuts
5
B044849
Right bags coupling
6
B044850
Left bags coupling
7
AP8125882
Entretoise
8
AP8152187
0 pc - Vis
9
AP8150502
Rondelle
10
B04485100YE5
Saddle mounting closing
10
B04485100XRC
Painted red saddle mounting closing
10
B04485100BM
Saddle mounting closing
11
AP8150444
pc - Vis
12
858840
Upper Number plate holder
13
858842
Lower Number plate holder
14
894657
Couvrir
15
575249
Vis (M6x16)
17
AP8102375
Clip nuts (M5)
18
AP8150204
Nut
19
AP8124718
pc - Rear reflector, red
20
AP8149034
Number plate support
21
AP8152298
Vis
22
AP8152306
Nut
23
AP8134677
Reflector support
24
AP8152299
0 pc - Nut
25
2B000291
Entretoise
26
AP8152108
pc - Vis
27
894899
Maintenance
28
AP8152117
Vis
