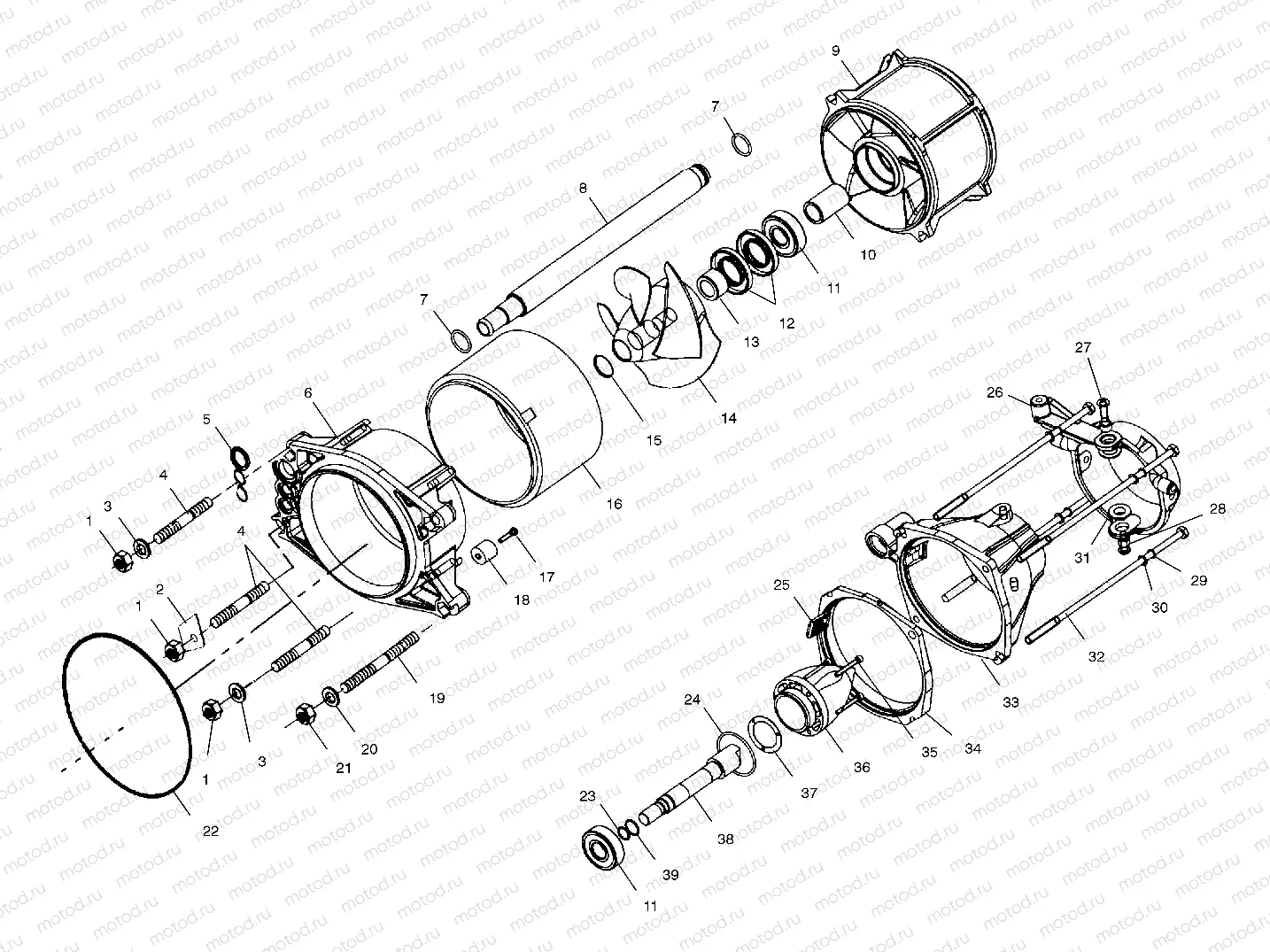

Главная Каталог товаров Polaris EPC 2002 Polaris PWC Polaris 2002 VIRAGE TXI (W025198C) Polaris 2002 PWC PROPULSION - W025198C/D/I (4971357135B02) | PROPULSION - W025198C/D/I (4971357135B02)

PROPULSION - W025198C/D/I (4971357135B02) | PROPULSION - W025198C/D/I (4971357135B02)

PROPULSION - W025198C/D/I (4971357135B02) | PROPULSION - W025198C/D/I (4971357135B02)

Например: 7542455

1

7542455

NUT,HEX,S.S.(10)

2

5244556

BRKT,STEERING CABLE NUT

3

7555853

WASHER,FLAT, S.S.(10)

4

5132355

STUD,MOUNT,PUMP,1.38 INT.

5

5411107

SEAL WATER PIPE

6

5131573

HSG,PUMP,W/O RING,INT STUD

7

5410735

O RING

8

5432269

PIPE,WATER,ENG.(X-PUMP)

9

5132088

STATOR,SS,ASIA TREND

10

5010294

Entretoise

11

3514008

Roulement

12

3610043

SEAL,BRG,STATOR

13

5134505

SPACER-IMPELLER SS

14

5131366

IMPELLER,17-23,3 BLADE,SS

15

5410731

O-Ring

16

5134562

EXTENSION-PUMP SS

17

7522019

SCREW(10)

18

5630598

ANODE-ZINC Substituted by 2200745

19

5132111

STUD MOUNT PUMP LONG INT.

20

7552607

Rondelle (Lock)

21

7542454

NUT HEX S.S.

22

5410652

O-RING PUMP HSG/HULL

23

5410817

O-RING,(10)

24

5410819

O-Ring

25

5431523

SCREEN ENG.INLET

26

5130999

NOZZLE,STRG,SLT

27

7515366

BOLT S.S.

28

5130938

Entretoise

29

7552610

Rondelle (Lock)

30

7555835

WASHER, FLAT, S.S.,(10)

31

5431518

BRG,STRG.NOZZLE,(10)

32

7515389

Vis

33

5131569

NOZZLE,STAT.,0X4 WEDGE

34

5432841

WEDGE,PUMP,0X4,MOLDED

35

7512064

SCREW(10)

36

5431519

CONE, PUMP

37

5811984

SEAL,TAILCONE

38

5132674

SHAFT-STUB

39

5410818

O-Ring
