Главная Каталог товаров Polaris EPC 2001 Polaris PWC Polaris 2001 GENESIS (W015099D) Polaris 2001 PWC PROPULSION - W015099D (4964866486B004) | PROPULSION - W015099D (4964866486B004)

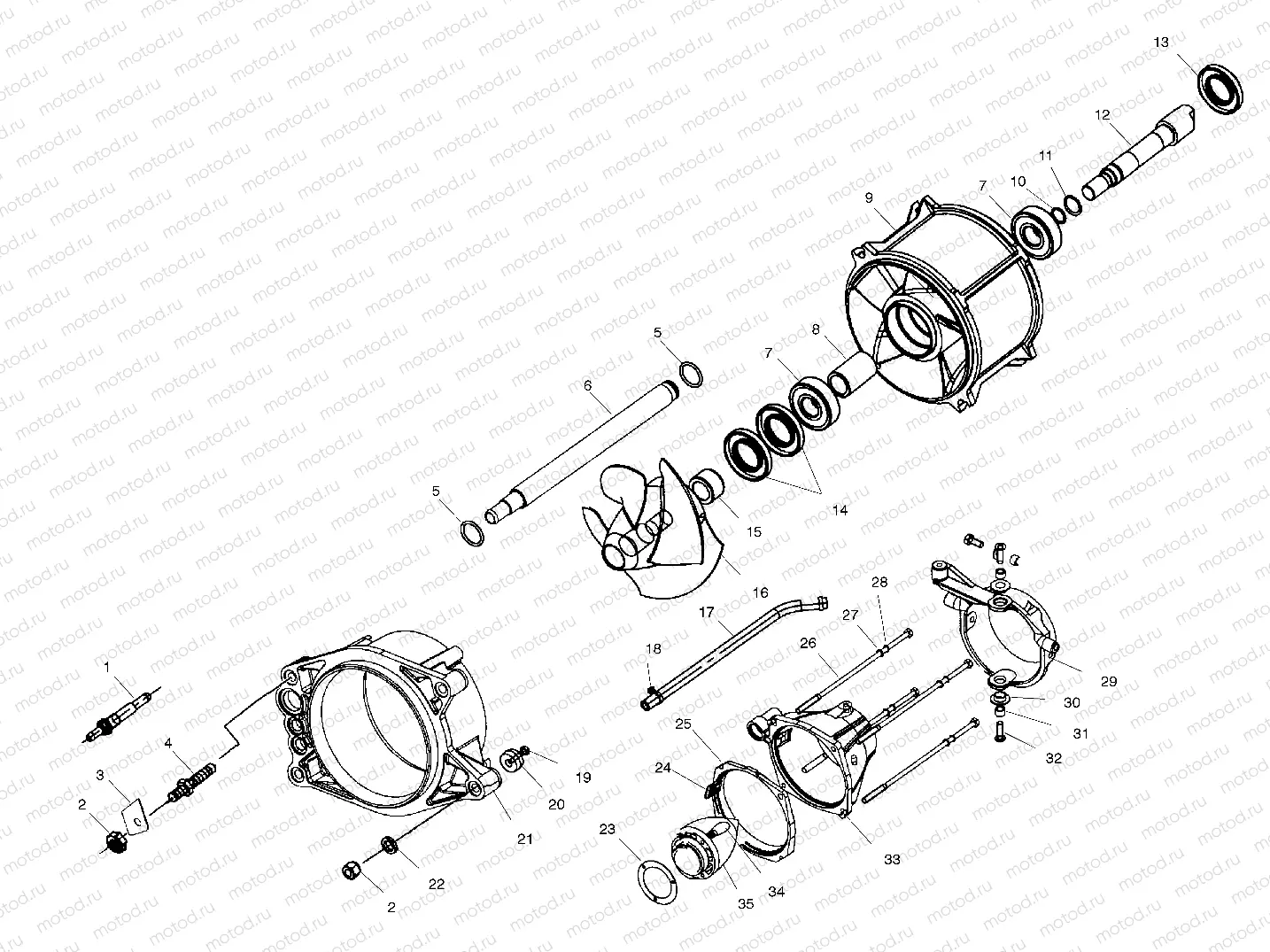

PROPULSION - W015099D (4964866486B004) | PROPULSION - W015099D (4964866486B004)

PROPULSION - W015099D (4964866486B004) | PROPULSION - W015099D (4964866486B004)

Например: 5431990

1

5431990

PIPE,WATER,BILGE Substituted by 5020835

2

7542455

NUT,HEX,S.S.(10)

3

5244556

BRKT,STEERING CABLE NUT

4

5132111

STUD MOUNT PUMP LONG INT.

5

5410735

O RING

6

5433334

PIPE WATER ENGINE 7.4 INCH

7

3514008

Roulement

8

5010294

Entretoise

9

5132088

STATOR,SS,ASIA TREND

10

5410817

O-RING,(10)

11

5410818

O-Ring

12

5132674

SHAFT-STUB

13

5410819

O-Ring

14

3610043

SEAL,BRG,STATOR

15

5134505

SPACER-IMPELLER SS

16

5131366

IMPELLER,17-23,3 BLADE,SS

17

8450054-100

HOSE,WATER

18

7080138

CABLE TIE

19

7522019

SCREW(10)

20

5630598

ANODE-ZINC Substituted by 2200745

21

5131574

"""HSG PUMP W/RING INT STUD"""

22

7555966

Rondelle

23

5811984

SEAL,TAILCONE

24

5431523

SCREEN ENG.INLET

25

5432841

WEDGE,PUMP,0X4,MOLDED

26

7517654

Vis

27

7555835

WASHER, FLAT, S.S.,(10)

28

7552610

Rondelle (Lock)

29

5130999

NOZZLE,STRG,SLT

30

5431518

BRG,STRG.NOZZLE,(10)

31

5130938

Entretoise

32

7515366

BOLT S.S.

33

1350038

NOZZLE ASM,0X4 WEDGE

34

5431519

CONE, PUMP

35

7512064

SCREW(10)
