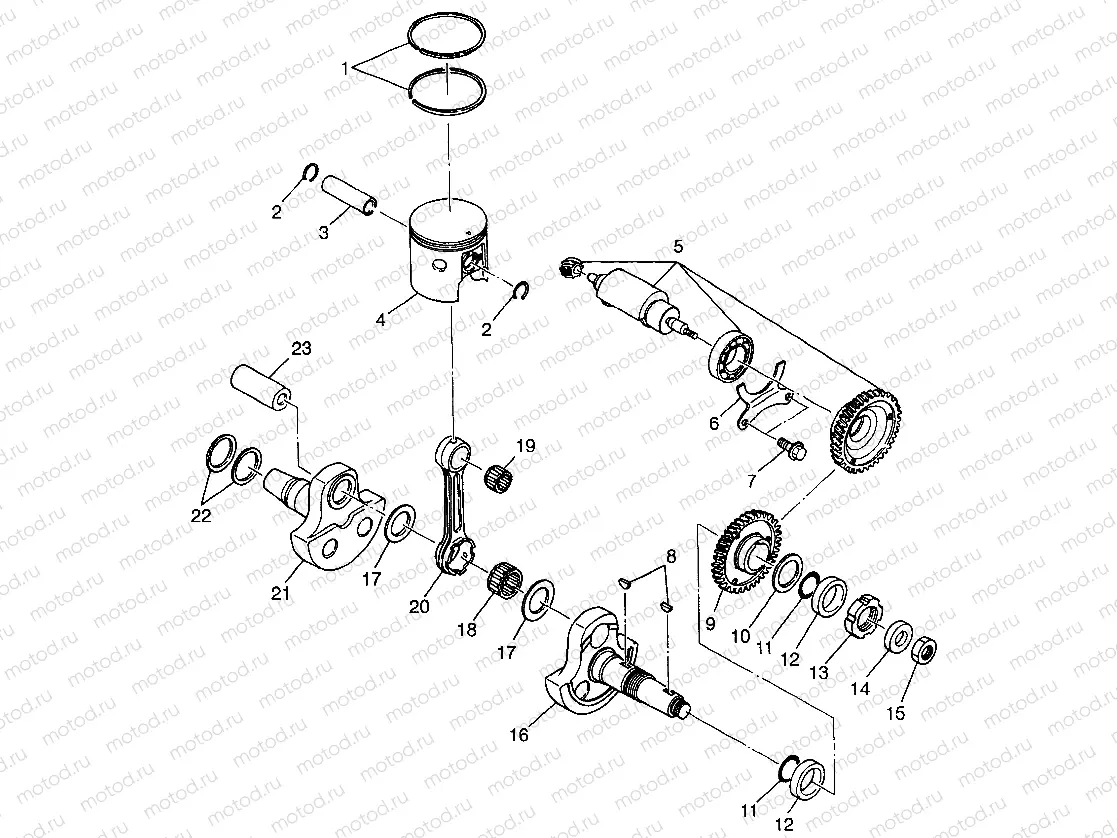

Главная Каталог товаров Polaris EPC 1997 Polaris ATV Polaris 1997 SPORTSMAN 400L (W97AC38C) Polaris 1997 ATV PISTON and CRANKSHAFT Sportsman 400L W97AC38C (4939673967C014) | PISTON and CRANKSHAFT Sportsman 400L W97AC38C (4939673967C014)

PISTON and CRANKSHAFT Sportsman 400L W97AC38C (4939673967C014) | PISTON and CRANKSHAFT Sportsman 400L W97AC38C (4939673967C014)

PISTON and CRANKSHAFT Sportsman 400L W97AC38C (4939673967C014) | PISTON and CRANKSHAFT Sportsman 400L W97AC38C (4939673967C014)

Например: 3084739

0

3084739

RING PISTON (.50MM O/S)

1

3084737

RING PISTON STD.

1

3084738

RING PISTON (.25MM O/S)

2

3084167

CLIP PISTON PIN

3

3083838

Piston pin

4

3085887

Piston (0.25MM O/S)

4

3085886

PISTON STANDARD

4

3085888

Piston (0.50MM O/S)

5

3087042

BALANCER

6

3086768

PLATE

7

3086769

Vis

8

3081543

KEY WOODRUFF

9

3084156

GEAR DRIVE

10

3086764

WASHER-GUIDE

11

3084160

O-Ring

12

3086763

Entretoise

13

3086762

NUT SLIT

14

3086767

Rondelle

15

3083905

NUT LOCK

16

3084776

CRANKSHAFT ASM.

16

3084149

CRANKSHAFT #1,MAG SIDE

17

3084155

SPACER CRANK PIN

18

3084154

BEARING LARGE END

19

3084168

BEARING SMALL END

20

3084153

ROD CONNECTING

21

3084777

CRANKSHAFT #2,PTO SIDE

22

3086765

SPACER-1 0.2MM

22

3086766

SPACER-2

23

3084152

PIN CRANK #1
