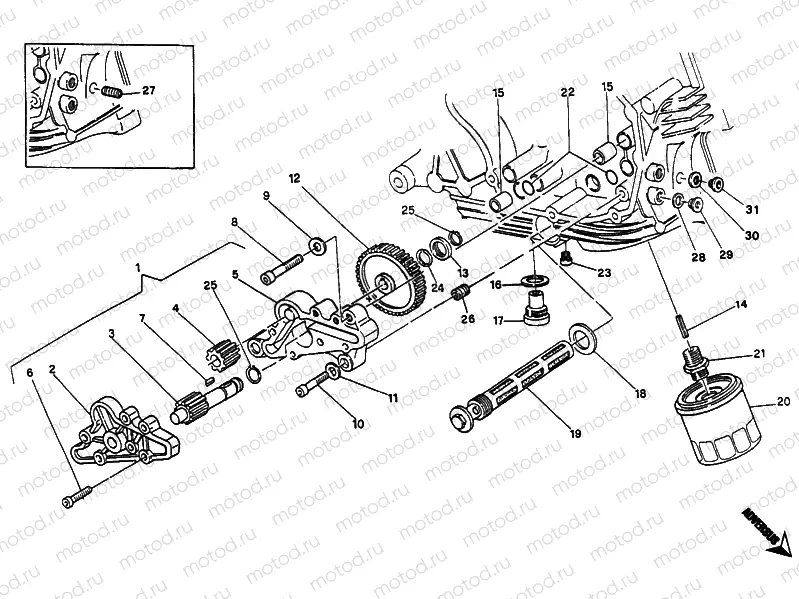

OIL PUMP - FILTER » LUBRICATION SYSTEM

OIL PUMP - FILTER » LUBRICATION SYSTEM
Например: 17420383D
1
17420383D
Pompe à huile
2
24711041A
Oil pump cover
3
17410021A
GEAR, OIL PUMP DRIVE
4
87310371A
.THREADED PLUG M32X1.5
5
25020303A
OIL PUMP BODY
6
77950201A
Vis
7
68010011B
2 pc - .WOODRUFF KEY 4X4X8
8
77151292B
.SCREW M8X40
9
85310021A
pc - Rondelle (spring)
10
77110518B
pc - Vis
11
85310041A
.SPRING WASHER 6 MM
12
17410252A
OIL PUMP GEAR
13
71010011A
SPINDLE, TAPER
14
88640371A
pc - O-Ring
15
075949280
Dowel pin
16
22032083A
Rondelle
17
78020471A
Vis de vidange d'huile (Magnetic)
18
85250051A
Rondelle
19
89420091A
STRAINER, OIL
20
44440039A
Filtre à huile
21
81510281A
BOLT UNION
22
88641321A
O-Ring
23
77911982A
.THREADED PLUG M15X1
24
88440421A
.SPRING RING
25
88450361A
pc - Seeger
26
067049310
BUSH
27
77911622A
5 pc - Vis
28
85211951A
Rondelle
29
59310181A
BY-PASS VALVE
30
79910551A
BYPASS SPRING
31
78010181A
.BYPASS CAP
32
85211201A
Joint - vis de vidange d'huile
33
77950191A
Vis
