Главная Каталог товаров Triumph EPC 2013 Triumph Tiger 800 > 674841 TIGER 800XC Triumph 2013 (VIN: SMTTRE06) Oil pump drive

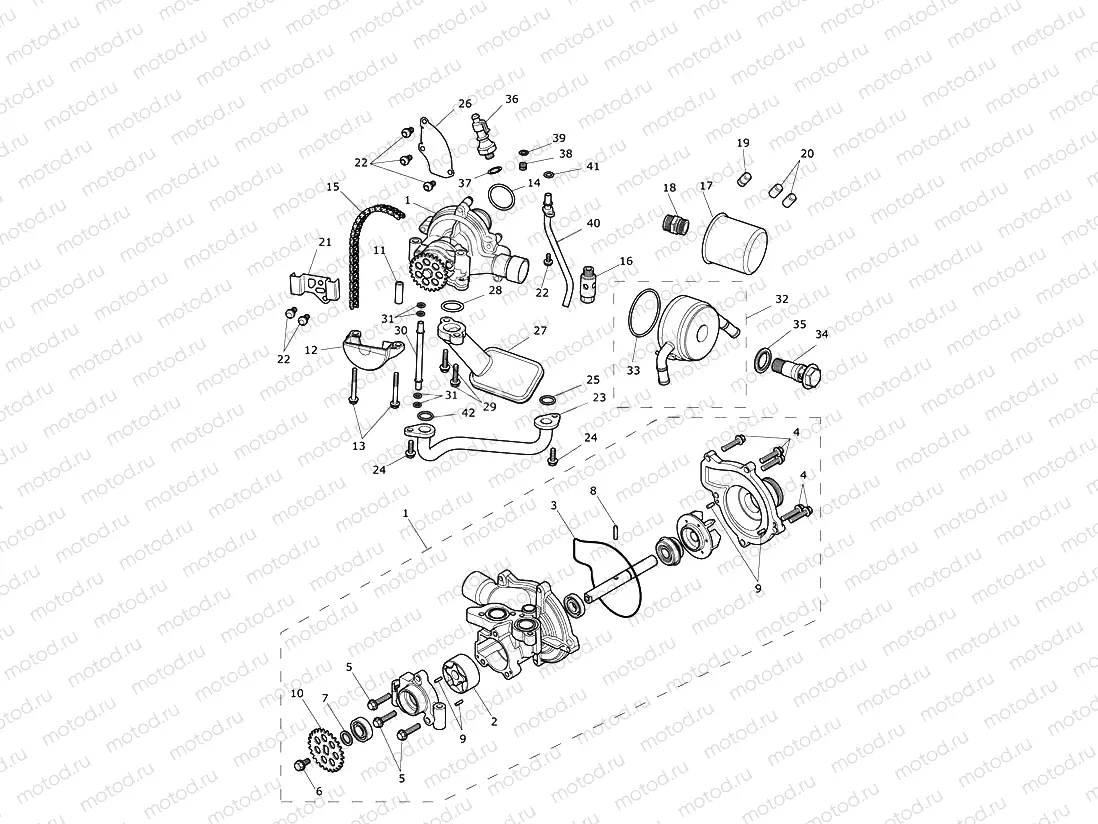

Oil pump drive

Oil pump drive
Например: T1211395
1
T1211395
Pump Assembly, Oil & Water
2
T1210169
Rotor Set, Oil
3
T1210171
Seal, O-Ring, Cover, Water Pum
4
T1210172
Bolt, RHHF, M6 x 25, Raw
5 шт. в узле
5
T1210173
Bolt, RHHF, M6 x 35, Raw
3 шт. в узле
6
T1210174
Bolt, HHF, M6 x 12, Raw
7
T1210176
Spacer, Sprocket
8
T3000053
Drive Pin, Oil Rotor
9
T3000049
Dowel, Dia 3x10
4 шт. в узле
10
T1210175
Sprocket, Drive, Oil/Water Pum
11
T3000034
Dowel, Hollow, Split Dia 8 x 3
12
T1210123
Aux Drive Chain Guard
13
T3200123
Bolt, RHHF, M6 x 50, Encaps
2 шт. в узле
14
T3600127
O Ring, 31.6x2.4
15
T1210121
Chaîne - pompe à huile
16
T1211065
Pressure Relief Valve
17
T1210443
Filtre à huile (Multipack 80)
17
T1210440
Filtre à huile (Multipack 24)
17
T1218001
Filtre à huile
18
T1210438
Oil Filter Adaptor
19
T1211012
Sleeve, Oil Jet, Piston, 1.2mm
20
T1211000
Sleeve, Oil Jet, Piston
2 шт. в узле
21
T1210023
Retainer Plate, Aux Drive Chai
22
T3331042
Screw, Pan/Hd, Tx, M6 x 12, En
6 шт. в узле
23
T1210193
Pipe, Oil Feed
24
T3205064
Vis
2 шт. в узле
25
T3600191
O Ring, 16 x 2
26
T1210194
Baffle Plate, Crankcase Breath
27
T1210191
Oil Pick Up
28
T3600106
O-Ring, 16 x 2
29
T3200134
Bolt, RHHF, M6x25, Encaps
2 шт. в узле
30
T1210128
Pump Drain Tube
31
T3600109
O Ring, ID 5.6 x 2.3
4 шт. в узле
32
T1210213
Heat Exchanger, Stainless Stee
33
T3600250
O Ring, 59.5 x 3.0
34
T1210158
Heat Exchanger Bolt
35
T1210157
Seal, Heat Exchanger
36
T1210091
Oil Pressure Switch, M10
37
T3550546
Washer, Cu, OD 16 x ID 10.2/
38
T1210000
Restrictor, Oil, Gearbox
39
T3600126
O Ring, ID 7.1 x 1.6
40
T1210192
Pipe, Breather Drain
41
T3600153
O-Ring
42
T3600132
O Ring 20 x 2.62
