Главная Каталог товаров Triumph EPC 1999 Triumph LEGEND TT Triumph 1999 Mudguards/Chainguard/Battery

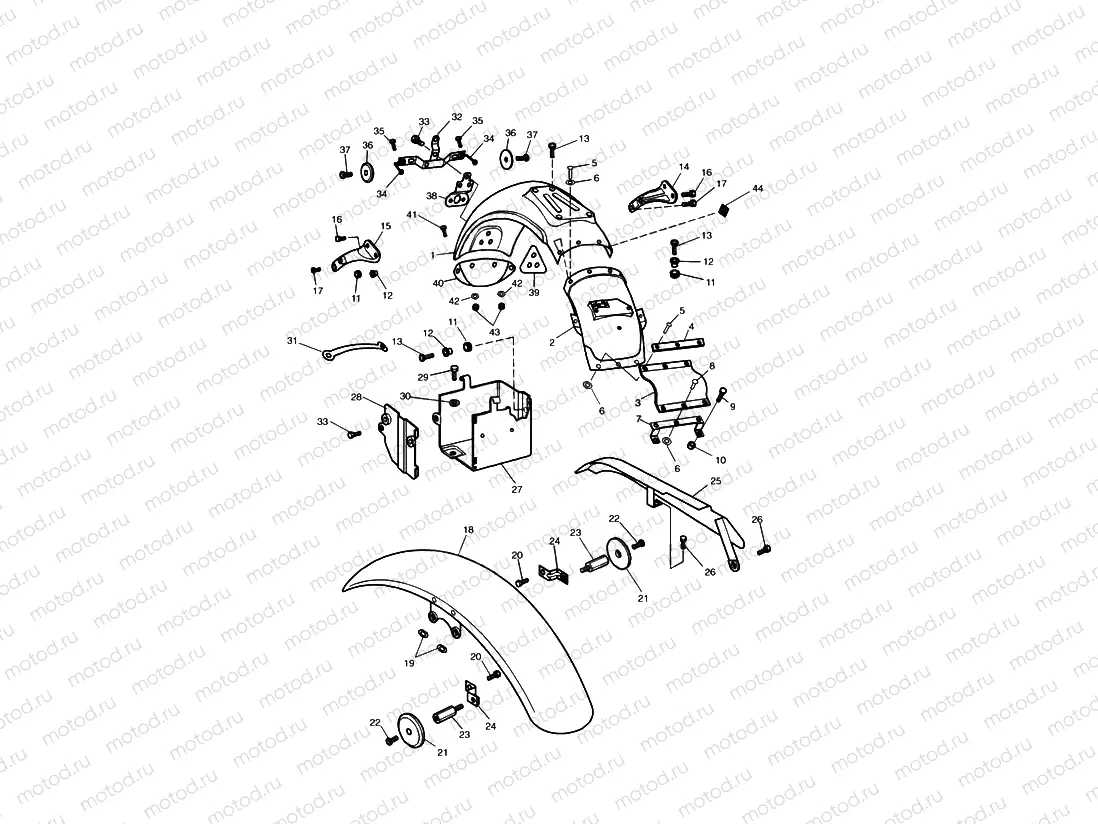

Mudguards/Chainguard/Battery

Mudguards/Chainguard/Battery

Например: Rear mudguard

1

Rear mudguard

1

Rear mudguard

1

Rear mudguard

1

Rear mudguard

1

Rear mudguard

2

T2301235

Couvrir

3

T2300359

Mudguard flap

4

T2300330

Clamp plate

5

T2307377

Pop Rivet, Dia 4.8

7 шт. в узле

6

Washer

7

2300310-T0301

Bracket

8

T3330061

Rivet

3 шт. в узле

9

T3205254

Bolt, HHF, Lghtd, M8 x20, Slv

2 шт. в узле

10

T3350004

Locknut, Flanged, M8 x 1.25

2 шт. в узле

11

T3020153

Grommet, 13 x 3 x 10

5 шт. в узле

12

T3010702

Flanged Sleeve, 6.4 x 10 x 8.5

5 шт. в узле

13

T3331234

Screw, Torx, P/H, M6 x 20, Slv

7 шт. в узле

14

T2700532

Bracket lh

15

T2700244

Bracket rh

16

T3205156

Bolt, HHF, Lghtd, M8 x 18, Slv

4 шт. в узле

17

T3330727

Vis (M6x20)

2 шт. в узле

18

T2301226-CL

Front mudguard

18

T2301226-CN

Front mudguard

18

Front mudguard

18

T2301226-PP

Front mudguard

18

T2301226-JM

Front mudguard

19

T3550255

Rondelle

4 шт. в узле

20

T3201228

Bolt, HHF, M8 x 14, Slv

4 шт. в узле

21

T2700283

Amber reflector

2 шт. в узле

22

T3330648

Screw, Pan/Hd, Tx, M5 x 20, Sl

2 шт. в узле

23

T2080538

Extension piece

2 шт. в узле

24

T2070854

Bracket, Hose, Front

2 шт. в узле

25

Chainguard

26

T3330727

Vis (M6x20)

2 шт. в узле

27

T2500092

Battery box assembly

28

T2500071

Door

29

T3331044

Screw, Pan/Hd, Tx, M6 x 16, Sl

2 шт. в узле

30

T3551283

Washer, M10, 10.5x18x1.6, Slv

2 шт. в узле

31

T2501740

Battery Strap

32

Bracket

33

T3205063

Bolt, HHF, Lghtd, M6 x 16, Slv

3 шт. в узле

34

T2300424

Bracket

2 шт. в узле

35

T3330085

Screw, Torx

2 шт. в узле

36

T2700284

Reflex Reflector

2 шт. в узле

37

T3330635

Screw, M5 X 16, Plastic

2 шт. в узле

38

T2300630

Bracket

39

T2300422

Support plate

40

Extension

41

T3330696

Screw, But/Hd, M5 X 16, Slv

2 шт. в узле

42

T3551178

Washer, M5 x 15 x 1.6

2 шт. в узле

43

Nut

44

T2301262

Pad

2 шт. в узле
