Главная Каталог товаров KTM EPC 2012 KTM Street KTM 2012 Travel KTM 2012 Street 990 ADVENTURE WHITE ABS CKD (9840L6C) [BR] KTM MASK, FENDERS

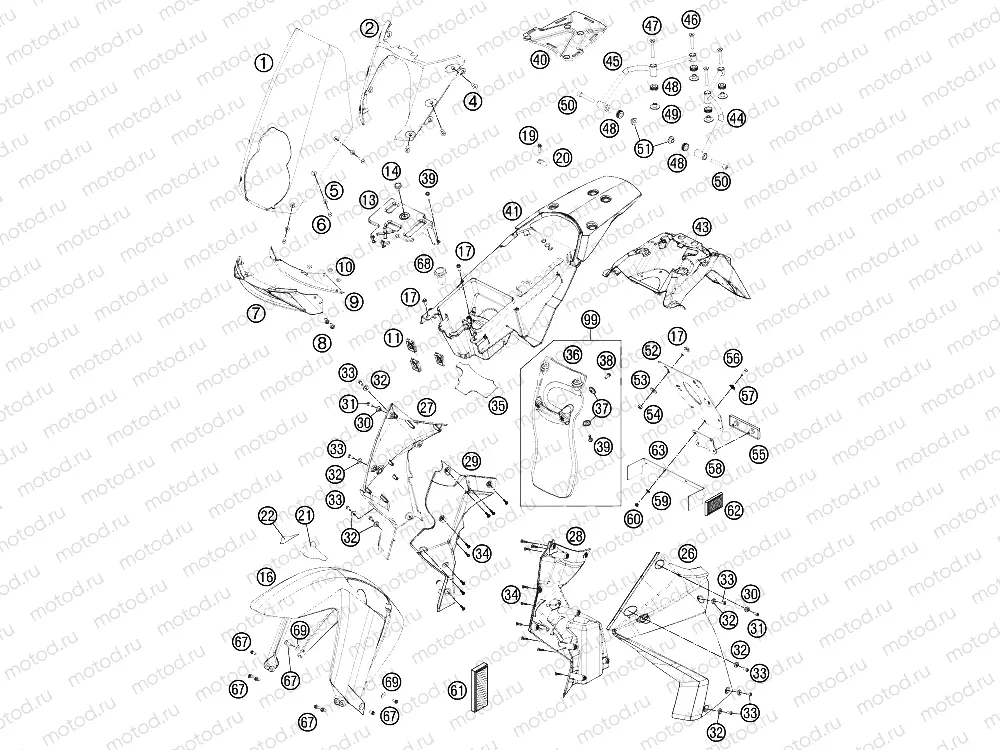

MASK, FENDERS

MASK, FENDERS

Например: 60008008000

1

60008008000

FAIRING SCREEN 03

2

60008001100

HEAD LIGHT MASK 07

4

60008008050

blind plug nut M5 WN16A

5

60008046000

SPECIAL WASHER D=12MM 03

6

0019050121

COUNTERSUNK SCREW ISA25 M5X12

7

60008011000

AIR INTAKE 03

8

0024060106

Vis

9

60008011060

AIR INTAKE GRILL 03

10

60008011050

SPRING NUT 012410 03

11

60108017010

RUBBER SLEEVE 30X40 MM 06

13

60108017000

COVER F. STORAGE COMP. REAR 06

14

60006001021

DISTANCE RUBBER AIRBOX 03

16

6010801000028A

Fender front white 09

23 947 ₽/шт

17

0024060156

Vis

19

0081050181

SCREW FOR PLASTIC K50X18 T20

20

57013070000

PVC-CLAMP 7/16'' HEYCO 3377

21

60108010060

PROTECTIVE FILM L/S 06

22

60108010070

PROTECTIVE FILM R/S 06

26

6000805000028A

Side cover l/s white 09

43 469 ₽/шт

27

6000805100028A

Side cover r/s white 09

43 469 ₽/шт

28

60008050150

INNER COVER LEFT 07

29

60008051150

INNER COVER RIGHT

30

60008052000

BUSH F. SIDE COVER 03

31

0984060163

Vis (M6x16)

32

60008045000

SPECIAL WASHER D=16,5MM 03

33

0012060123

AH SCREW DIN6912 M6X12

34

0081050121

EJOT PT screw K50x12

35

60008013160

THER.PROT.FOIL REAR FENDER 07

36

60006010100

SPLASHBACK 08

37

72210079000

BUCKET

38

0025060166

Vis

39

0017060205

Vis

40

6001201000001S

Baggage rack lc8 07

11 761 ₽/шт

41

6010801310033

Rear fender black 09

5 464 ₽/шт

43

60108015000

LICENSE NUMBER CARRIER 06

44

60012008000

HANDLE L/S 03

45

60012009000

HANDLE R/S 03

46

0991080503

FLAT HEAD SCREW DIN7991-M 8X50

47

0991080653

FLAT HEAD SCREW DIN7991-M 8X65

48

41001052000

Damper (D=12 mm)

49

60012008003

COLLAR BUSHING 8,2X12X28X9 03

50

0912080553

AH SCREW DIN912 M8X55

51

60012008002

COLLAR BUSHING 8,2X12X20X9 03

52

60012081300

Licence fitting

53

0021060003

Rondelle

54

0985060003

SELF LOCK. NUT DIN0985-M 6

55

58412080400

Rear reflector red (red)

56

0966050163

OVAL HEAD SCREW DIN0966-M 5X16

57

40006006000

WASHER 6MM

58

58412080050

BRACKET FOR REFLECTOR

59

0125050003

WASHER DIN0125-A 5,3

60

0985050003

SELF LOCKING NUT DIN0985-M 5

61

60012080100

SIDE REFLECTOR YELLOW "CEV"

62

16512180100

SIDE REFLECTOR RED REAR

63

62512081000

BRACKET SIDE REFLECTOR 06

67

0024060136

Vis

68

50206020000

RUBBER GRIMMET SLOTTED

69

60007020040

PLASTIC WASHER 03

99

60006010110

SPLASH PROTECTOR KIT ADV
