Главная Каталог товаров Triumph EPC 2020 Triumph TIGER 1200 XCX Triumph 2020 Main Frame & Fittings

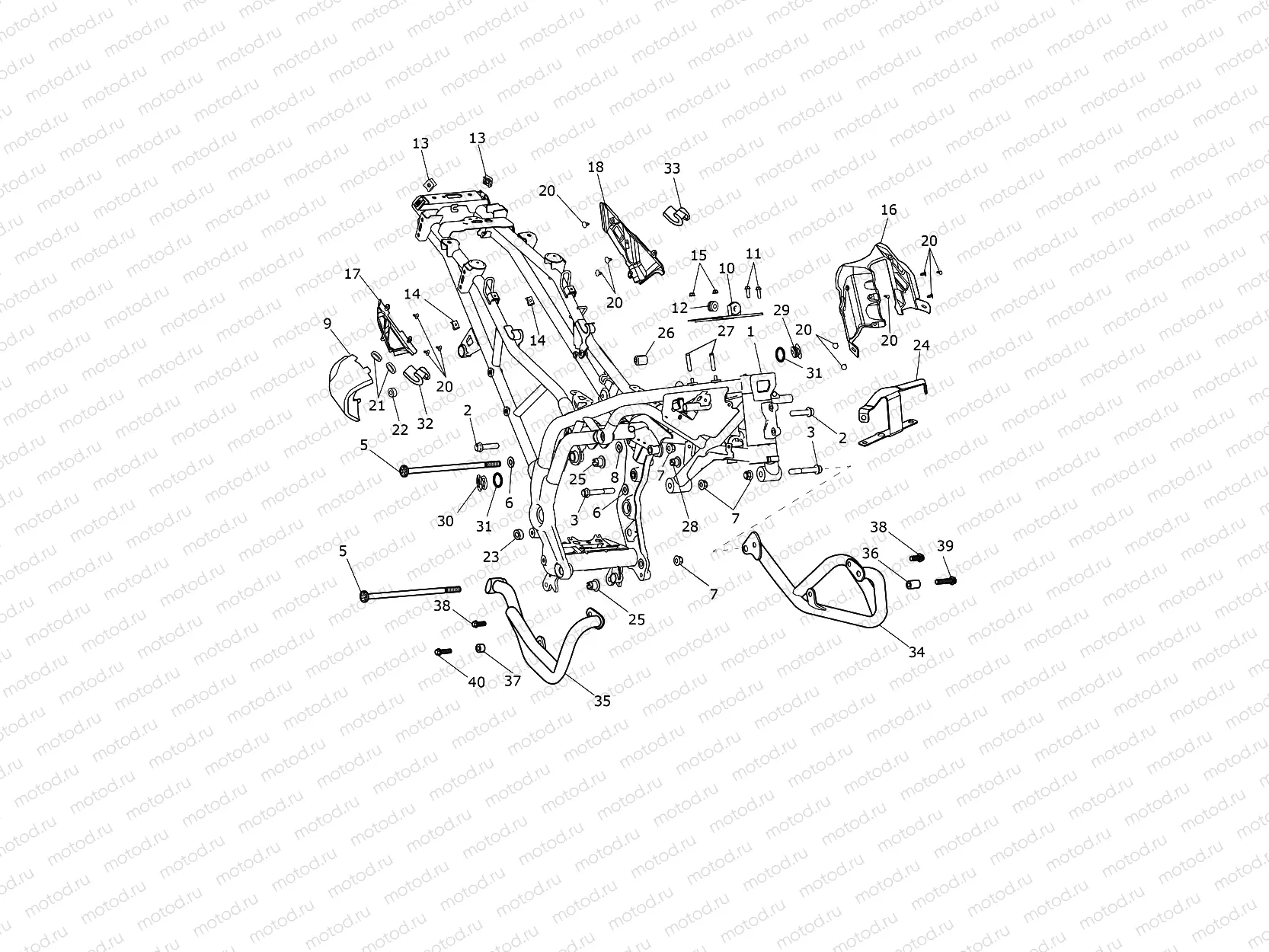

Main Frame & Fittings

Main Frame & Fittings

Например: T2071304

1

T2071304

Frame Assembly, Spares, Canada

1

T2071303

Frame Assembly, Spares, Americas

1

T2071302

Frame Assembly, Spares

1

T2071305

Frame Assembly, Spares, Autralia

2

T3334692

Screw, Torx, M12 x 50

2 шт. в узле

3

T3151120

Bolt, M12 x 75

2 шт. в узле

5

T3334662

Screw, Torx, M12 x 265

6

T3550570

Washer, Hardened, 26 x 12.5 x

3 шт. в узле

7

T3350234

Locknut, Flgd, M12 x 1.25

5 шт. в узле

8

T2077820

Spacer, Engine Mount, M12

9

T2070569

Swingarm Position Sensor Cover

10

T2075851

Pressing, Headstock Brace, Top

11

T3202304

Bolt, RHHF, M6 x 20, Slv

2 шт. в узле

12

T3020300

Grommet, Dia 19.5 x 4 Panel

13

T3350111

Nut, Captive, M6

14

T3350123

Nut, Captive, M5, Non-Secured

2 шт. в узле

16

T2303385

Headstock Infill, Moulding

17

T2070214

Frame Infill, RHS

18

T2070654

Frame Infill, LHS

20

T3701170

Plastic Rivet, Screw Type

12 шт. в узле

21

T3020330

Grommet, Rectangular

2 шт. в узле

22

T3020085

Grommet, Dia 18x1x9

8 шт. в узле

23

T2050517

Adjuster, Swingarm Pivot

2 шт. в узле

24

T2303368

Bracket, Headstock Infill

25

T2071980

Adjuster, Frame, M12

2 шт. в узле

26

T2056500

Bush, Rubber Mount, 10.2 x 27

27

T3100020

Stud, M6

28

T2050483

Frame Adapter, M30

29

T2076468

Bung, Tube, Upper Cross Beam,

30

T2076469

Bung, Tube, Upper Cross Beam,

31

T3600267

O Ring, ID 26.65 x Dia 2.62

2 шт. в узле

32

T2305281

Seat Mtg, RHS

33

T2305282

Seat Mtg, LHS

34

T2071182

Protector Bar, LH

35

T2071183

Protection Bar, RH

36

T2076740

Spacer, 8.4 x 17.8 x 25, Alumi

37

T2076745

Spacer, 8.4 x 17.8 x 13, Alumi

38

T3205781

Bolt, HHF, Lghtd, M8 x 1.25 x

2 шт. в узле

39

T3205486

Bolt, HHF, Lghtd, M8 x 45, Slv

40

T3205868

Bolt, HHF, Lghtd, M8 x 33, Slv

41

T3450567

Plug, Barrel, 12.8, Black

2 шт. в узле
