Главная Каталог товаров Triumph EPC 2017 Triumph TIGER EXPLORER XCX 740277 > Triumph 2017 (VIN: SMTF47XB) Main Frame & Fittings

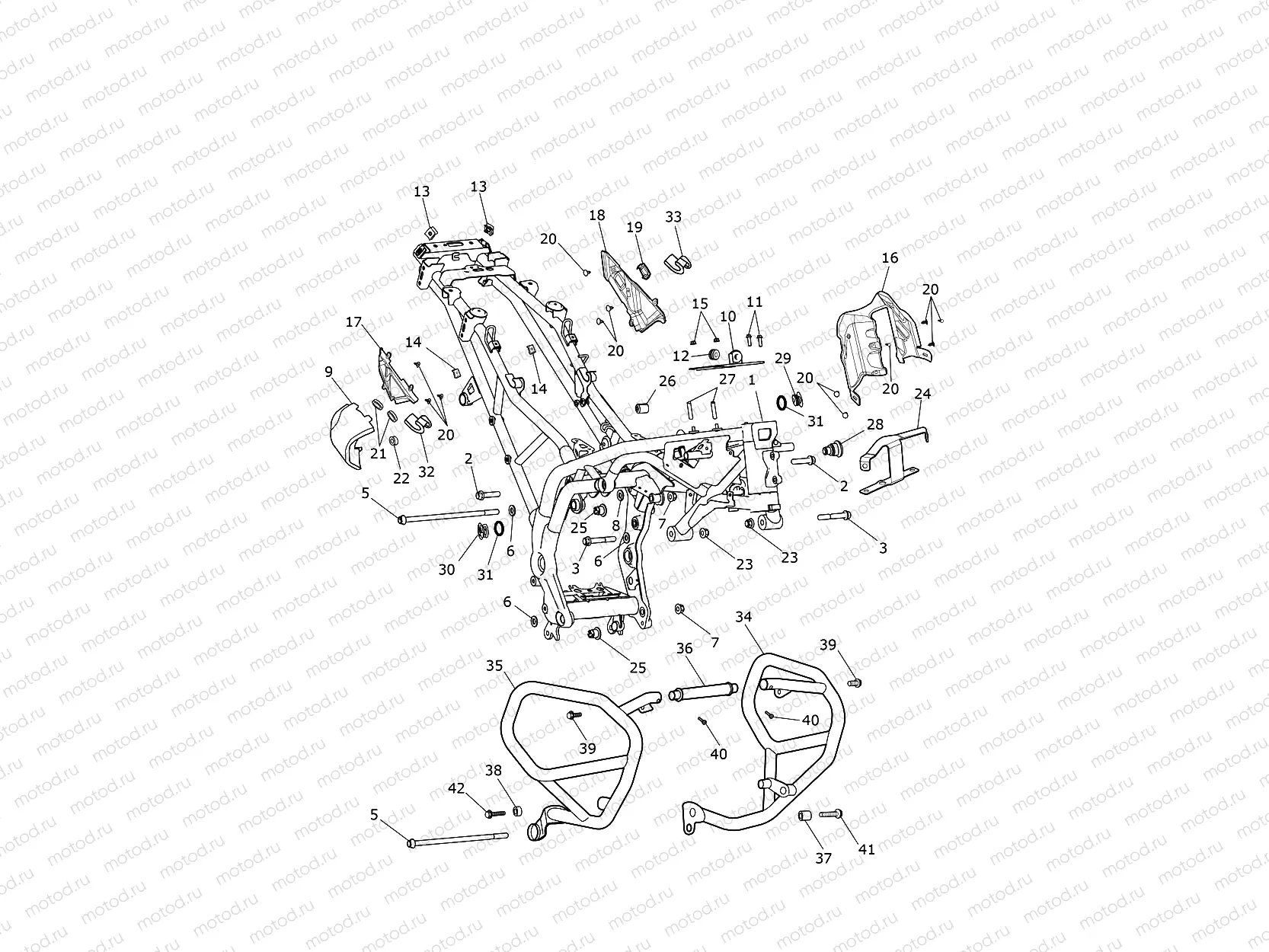

Main Frame & Fittings

Main Frame & Fittings
Например: T2070611
1
T2070611
Frame Assembly Spares
1
T2070897
Frame Assembly Spares, Austral
1
T2070613
Frame Assembly Spares, America
1
T2070626
Frame Assembly Spares, Canada
2
T3334692
Screw, Torx, M12 x 50
2 шт. в узле
3
T3151120
Bolt, M12 x 75
2 шт. в узле
5
T3334662
Screw, Torx, M12 x 265
2 шт. в узле
6
T3550570
Washer, Hardened, 26 x 12.5 x
3 шт. в узле
7
T3350234
Locknut, Flgd, M12 x 1.25
2 шт. в узле
8
T2077820
Spacer, Engine Mount, M12
9
T2070569
Swingarm Position Sensor Cover
10
T2075851
Pressing, Headstock Brace, Top
11
T3202304
Bolt, RHHF, M6 x 20, Slv
2 шт. в узле
12
T3020300
Grommet, Dia 19.5 x 4 Panel
13
T3350111
Nut, Captive, M6
2 шт. в узле
14
T3350123
Nut, Captive, M5, Non-Secured
2 шт. в узле
15
T3350003
Locknut, Flanged, M6 x 1.0
2 шт. в узле
16
T2303385
Headstock Infill, Moulding
17
T2070214
Frame Infill, RHS
18
T2070146
Frame Infill, LHS
19
T2307136
Blank Plug, Switch
20
T3701170
Plastic Rivet, Screw Type
12 шт. в узле
21
T3020330
Grommet, Rectangular
2 шт. в узле
22
T3020085
Grommet, Dia 18x1x9
23
T3350234
Locknut, Flgd, M12 x 1.25
2 шт. в узле
24
T2303368
Bracket, Headstock Infill
25
T2071980
Adjuster, Frame, M12
2 шт. в узле
26
T2056500
Bush, Rubber Mount, 10.2 x 27
27
T3100020
Stud, M6
2 шт. в узле
28
T2050666
Pivot Pin, M30
29
T2076468
Bung, Tube, Upper Cross Beam,
30
T2076469
Bung, Tube, Upper Cross Beam,
31
T3600267
O Ring, ID 26.65 x Dia 2.62
2 шт. в узле
32
T2305281
Seat Mtg, RHS
33
T2305282
Seat Mtg, LHS
34
T2076730
Protector Bar, Engine, LH
35
T2076735
Protector Bar, Engine, RH
36
T2076966
Link Bar
37
T2076740
Spacer, 8.4 x 17.8 x 25, Alumi
38
T2076745
Spacer, 8.4 x 17.8 x 13, Alumi
39
T3205781
Bolt, HHF, Lghtd, M8 x 1.25 x
2 шт. в узле
40
T3051055
Screw, Cap/Hd, M5 x 10, Slv, E
2 шт. в узле
41
T3205486
Bolt, HHF, Lghtd, M8 x 45, Slv
42
T3205868
Bolt, HHF, Lghtd, M8 x 33, Slv
