Главная Каталог товаров Triumph EPC 2008 Triumph BONNEVILLE T100 EFI Triumph 2008 Main Frame & Fittings

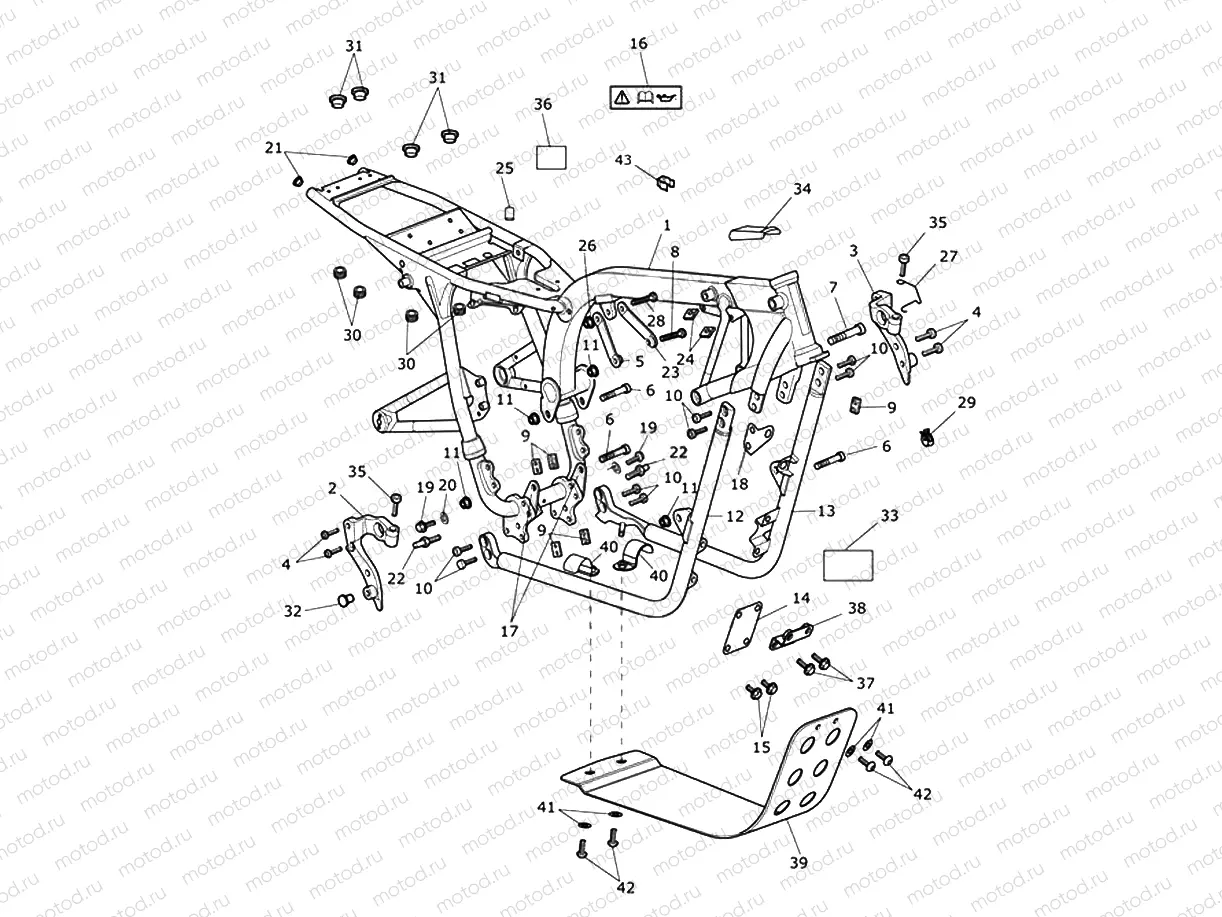

Main Frame & Fittings

Main Frame & Fittings
Например: T2075298
1
T2075298
Frame Assy, World
1
T2070797
Frame Assy, TH, 90% Gloss
1
T2075315
Frame Assy, California
1
T2070698
Frame Assy, TW, 90% Gloss
1
T2070696
Frame Assy, California, 90% Gl
1
T2070697
Frame Assy, Canada, 90% Gloss
1
T2070694
Frame Assy, Americas, 90% Glos
1
T2070693
Frame Assy, World, 90% Gloss
1
T2075303
Frame Assy, Americas
1
T2075304
Frame Assy, Canada
1
T2075341
Frame Assy, TW
2
T2075061
Outrigger
3
T2075062
Outrigger
4
T3050402
Screw, Cap HD, M10 x 23, Slv
4 шт. в узле
5
T2075057
Bracket
6
T3334635
Screw, HHF, M12 x 1.25 x 130
2 шт. в узле
7
T3151011
Bolt, HHF, M12 x 172, 10.9, Sl
2 шт. в узле
7
T3332528
Bolt, TX, M12 x 170, 10.9, Slv
2 шт. в узле
8
T3151021
Bolt, HHF, M12 x 55, 10.9, Slv
9
T2075055
Bracket, M10
5 шт. в узле
10
T3050227
Screw, Cap/Hd, M10 x 1.25 x 35
11
T3350234
Locknut, Flgd, M12 x 1.25
6 шт. в узле
12
T2075271
Cradle, RH, Painted
12
T2070679
Cradle, RH, Painted, 90% Gloss
13
T2070692
Cradle, LH, Painted, 90% Gloss
13
T2075241
Cradle, LH, Painted
14
T2075056
Plate stiffener
15
T3205156
Bolt, HHF, Lghtd, M8 x 18, Slv
2 шт. в узле
16
T3900136
Label, Engine Oil
17
T2075008
Engine mounting
2 шт. в узле
18
T2075034
Bracket
19
T3332162
Screw, M10 X 30, Enc
2 шт. в узле
20
T3555009
Washer, 10.5 x 21 x 1.22
2 шт. в узле
21
T3450060
Cap
2 шт. в узле
22
T2074993
Mounting pin
2 шт. в узле
23
T2075068
Bracket
24
T3351002
Nut, Captive, U-Type, M5, Slv
2 шт. в узле
25
T1241012
Cap, Vacuum Connection
26
T3350004
Locknut, Flanged, M8 x 1.25
6 шт. в узле
27
T2082120
Guide Wire
28
T3202319
Bolt, HHF, M8 x 35, Slv
29
T3700108
Clip, Cable, 14.3 x 10
2 шт. в узле
30
T3021100
Grommet, Dia 13 x 1.8
4 шт. в узле
31
T3010702
Flanged Sleeve, 6.4 x 10 x 8.5
4 шт. в узле
32
T3450015
Plug, M10
33
T3900169
Label, Frame modification
34
T2072702
Rubbing Strip
35
T3050227
Screw, Cap/Hd, M10 x 1.25 x 35
36
T3900634
Label, ECE
37
T3205254
Bolt, HHF, Lghtd, M8 x20, Slv
2 шт. в узле
37
T3205156
Bolt, HHF, Lghtd, M8 x 18, Slv
2 шт. в узле
38
T2075154
Bracket Assy, Front, Skid Plat
39
T2075156
Skid Plate
40
T2075158
Bracket Assy, Rear, Skid Plate
2 шт. в узле
41
T3550184
Washer, Hardened, 8.2 x 18.7 x
4 шт. в узле
42
T3335011
Screw, But/Hd, Tx, M8 x 20
4 шт. в узле
43
T3700233
Clip, Brake Hose
