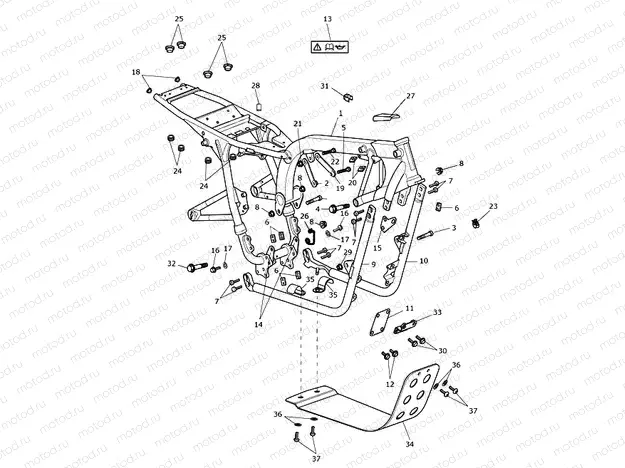

Main Frame & Fittings 606027

Main Frame & Fittings 606027
Например: T2070796
1
T2070796
Frame Assy, Australia, 90% Glo
1
T2070791
Frame Assy, TW, 90% Gloss
1
T2070784
Frame Assy, California, 90% Gl
1
T2070783
Frame Assy, Americas, 90% Glos
1
T2075316
Frame Assy, California
1
T2070789
Frame Assy, Canada, 90 % Gloss
1
T2075309
Frame Assy, Canada
1
T2070779
Frame Assy, World, 90% Gloss
1
T2075307
Frame Assy, World
1
T2075308
Frame Assy, Americas
1
T2075342
Frame Assy, TW
2
T2075057
Bracket
3
T3334635
Screw, HHF, M12 x 1.25 x 130
2 шт. в узле
4
T3332528
Bolt, TX, M12 x 170, 10.9, Slv
5
T3151021
Bolt, HHF, M12 x 55, 10.9, Slv
6
T2075055
Bracket, M10
5 шт. в узле
7
T3050227
Screw, Cap/Hd, M10 x 1.25 x 35
10 шт. в узле
8
T3350234
Locknut, Flgd, M12 x 1.25
5 шт. в узле
9
T2070679
Cradle, RH, Painted, 90% Gloss
9
T2075271
Cradle, RH, Painted
10
T2070692
Cradle, LH, Painted, 90% Gloss
10
T2075241
Cradle, LH, Painted
11
T2075056
Plate stiffener
12
T3205156
Bolt, HHF, Lghtd, M8 x 18, Slv
2 шт. в узле
13
T3900136
Label, Engine Oil
14
T2075008
Engine mounting
2 шт. в узле
15
T2075034
Bracket
16
T3332162
Screw, M10 X 30, Enc
2 шт. в узле
17
T3555009
Washer, 10.5 x 21 x 1.22
2 шт. в узле
18
T3450060
Cap
2 шт. в узле
19
T2075068
Bracket
20
T3351002
Nut, Captive, U-Type, M5, Slv
2 шт. в узле
21
T3350004
Locknut, Flanged, M8 x 1.25
22
T3202319
Bolt, HHF, M8 x 35, Slv
23
T3700108
Clip, Cable, 14.3 x 10
2 шт. в узле
24
T3021100
Grommet, Dia 13 x 1.8
4 шт. в узле
25
T3010702
Flanged Sleeve, 6.4 x 10 x 8.5
4 шт. в узле
26
T2072323
Guide, Brake Pipe Rear
27
T2072702
Rubbing Strip
28
T1241012
Cap, Vacuum Connection
29
T3350234
Locknut, Flgd, M12 x 1.25
5 шт. в узле
30
T3205254
Bolt, HHF, Lghtd, M8 x20, Slv
2 шт. в узле
31
T3700233
Clip, Brake Hose
32
T3151011
Bolt, HHF, M12 x 172, 10.9, Sl
33
T2075154
Bracket Assy, Front, Skid Plat
34
T2075156
Skid Plate
35
T2075158
Bracket Assy, Rear, Skid Plate
2 шт. в узле
36
T3550184
Washer, Hardened, 8.2 x 18.7 x
4 шт. в узле
37
T3335011
Screw, But/Hd, Tx, M8 x 20
4 шт. в узле
