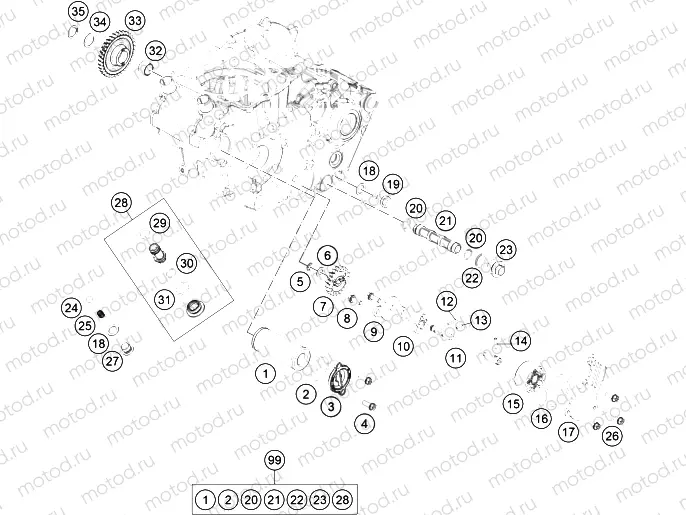

LUBRICATING SYSTEM|Engine|38

LUBRICATING SYSTEM|Engine|38
Например: 77338005100
1
77338005100
Filtre à huile
2
07703305178
O-Ring
3
77338041200
OIL FILTER COVER 08
4
0025050166
Vis
5
0799060000
TAB WASHER DIN6799-RS 6,0
6
58038007755
STOP DISK 8,1 X 15 X 0,5
7
79538001018
Oil pump gear wheel, 18 teeth
8
0025060166S
Vis
9
79438003000
OIL PUMP COVER
10
59038011112
Pompe à huile (12 mm)
11
79438002000
OIL PUMP SHAFT
12
0402251980
NEEDLEROL.DIN5402 NRA 2,5X19,8
13
0402251180
NEEDLE ROLLER DIN5402 2,5X11,8
14
0402041580
needle roller NRB 4x15.8 G2
15
61238011100
ROTOR SET 22MM
16
0770440020
O-RING 44,00X2,00 VITON
17
79438004100
OIL PUMP COVER
18
58038022000
Rondelle
19
58030021100
Vis de vidange d'huile
20
07701250151
O-RING 12,5X1,5 VITON V75
21
59038016200
Filtre à huile
22
0770020170
O-Ring
23
59038017100
Vis de vidange d'huile
24
0401090003
BALL DIN5401-9
25
79438026000
PRESSURE SPRING
26
0984050143S
CYL. SCREW DIN6912 M5X14 8.8
27
78036024000
PLUG SCREW SAS M12X1,5
28
78138015001
OIL SCREEN CPL.
29
0770012021
O-RING 12X2 VITON GREEN
30
0770125015
O-Ring
31
0770170200
O-Ring (17x2)
32
79438001010
NEEDLE BEARING INNER RING
33
79438001033
IDLER WHEEL 33T
34
0988162205
THRUST WASH. DIN0988-16X22X0,5
35
0471150010
CIRCLIP DIN0471-15X1
99
79438015010
OILFILTER SERVICEKIT SX-F
