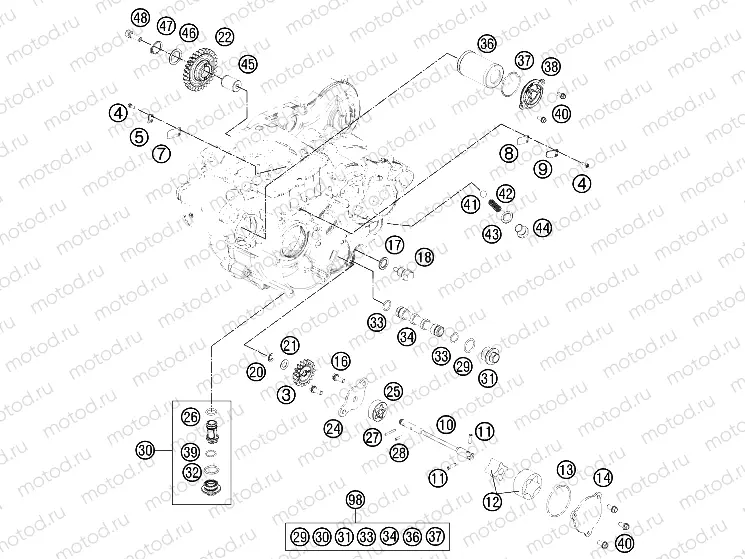

LUBRICATING SYSTEM

LUBRICATING SYSTEM
Например: 78038001017
3
78038001017
OIL PUMP GEAR 17 T
4
0458030080
CYLIND.SCREW M3X8 ISO 14580 SS
5
75030003050
STOP SHEET MEMBRANE 07
7
75030003051
MEMBRANE 07
8
81205027003
MEMBRAN CRANKCASE
9
81205027004
TAB WASHER MEMBRAN CSC
10
78138102000
OIL PUMP SHAFT SP-DP
11
0402041580
needle roller NRB 4x15.8 G2
12
61238111000
ROTOR-SET CPL. 22MM
13
0770440020
O-RING 44,00X2,00 VITON
14
78038004000
OIL PUMP COVER SUCTION PUMP
16
0025060166S
Vis
17
58038022000
Rondelle
18
58030021100
Vis de vidange d'huile
20
0799060000
TAB WASHER DIN6799-RS 6,0
21
58038007755
STOP DISK 8,1 X 15 X 0,5
22
78138001029
IDLER GEAR 1 29Z
24
78138003000
OIL PUMP COVER
25
59038011012
OILPUMP ROTOR 12MM G-95R/003
26
0770012021
O-RING 12X2 VITON GREEN
27
0402251980
NEEDLEROL.DIN5402 NRA 2,5X19,8
28
0402251180
NEEDLE ROLLER DIN5402 2,5X11,8
29
0770020170
O-Ring
30
78138015001
OIL SCREEN CPL.
31
59038017100
Vis de vidange d'huile
32
0770170200
O-Ring (17x2)
33
07701250151
O-RING 12,5X1,5 VITON V75
34
59038016200
Filtre à huile
36
77038005044
Filtre à huile
37
07700390261
O-Ring (39,34x2,62)
38
75038041200
OILFILTER CAP
39
0770125015
O-Ring
40
0025050166
Vis
41
0401090003
BALL DIN5401-9
42
58038023300
PRESSURE SPRING L=25MM D=1MM
43
58038022000
Rondelle
44
78036024000
PLUG SCREW SAS M12X1,5
45
78040028000
BUSHING PIN
46
0988172405
SHIM WASHER DIN0988-17X24X0,5
47
0471170010
CIRCLIP DIN0471-17X1
48
0912060208
AH SCREW DIN0912-M 6X20 SS
98
78938015010
OILFILTER SERVICEKIT SX-F 15
