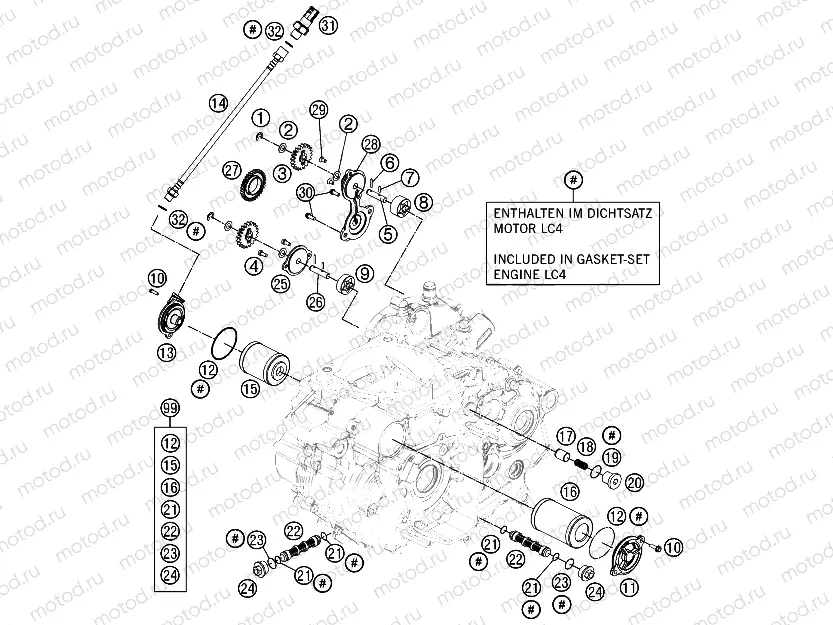

LUBRICATING SYSTEM

LUBRICATING SYSTEM
Например: 0799060000
1
0799060000
TAB WASHER DIN6799-RS 6,0
2
58038007755
STOP DISK 8,1 X 15 X 0,5
3
75038001020
OIL PUMP GEAR 20-T
4
073801050105S
Oval head screw ISR M5x10-10.9 ISR25
5
75038002000
OIL PUMP SHAFT 07
6
0402251980
NEEDLEROL.DIN5402 NRA 2,5X19,8
7
0402251180
NEEDLE ROLLER DIN5402 2,5X11,8
8
77038011100
OIL PUMP ROTOR COMPL. 15MM
9
59038011110
OIL PUMP ROTOR COMPL. 10MM
10
0025050166
Vis
11
75038041200
OILFILTER CAP
12
07700390261
O-Ring (39,34x2,62)
13
76038041000
OILFILTER COVER
14
76038034000
Oil pipe
15
75038046100
Filtre à huile
16
58038005100
Filtre à huile
17
58038028000
VALVE PISTON D=10MM
18
58538023000
OIL PRES.SPRING 5 BAR RED 2001
19
58038022000
Rondelle
20
0908120153
threaded plug DIN 908 M12x1.5
21
07701250151
O-RING 12,5X1,5 VITON V75
22
59038016200
Filtre à huile
23
0770180020
O-Ring
24
59038017100
Vis de vidange d'huile
25
75038003000
OIL PUMP COVER 07
26
75038004000
OIL PUMP SHAFT 07
27
75032050001
OIL PUMP DRIVE WHEEL 07
28
76038003000
OIL PUMP COVER
29
0019050163S
INT. TORX FLAT HEAD M5X16 8.8
30
0025060166S
Vis
31
61238091000
oil pressure switch ''BITRON''
32
0603100141
Rondelle
99
75038046110
OILFILTER SERVICEKIT 690 12-14
