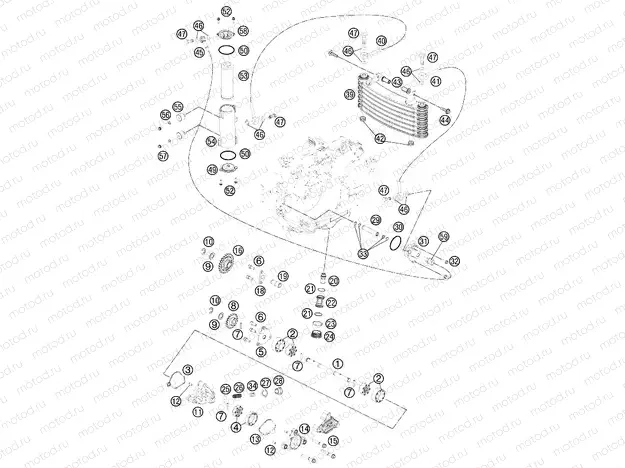

LUBRICATING SYSTEM

LUBRICATING SYSTEM
Например: 77338002100
1
77338002100
OIL PUMP SHAFT
2
77338107100
Pompe à huile
3
77338012000
GASKET PRESSURE PUMP CASE
4
77338207100M01
PRESSURE PUMP PEEK D=9MM
5
77338004100
PUMP COVER 07
6
0912050123
AH SCREW DIN0912-M 5X12
7
0402031580
NEEDLE ROLLER DIN5402 3X15,8
8
77338001100
OIL PUMP GEAR 18-T
9
77338023000
WASHER 10,2X18X1
10
0799080000
retaining washer DIN 6799 - 8
11
77338010100
PRESSURE PUMP CASE
12
0402040980
NEEDLE ROL.DIN5402 NRB 4X9,8
13
77338112000
GASKET PRESSURE PUMP COVER
14
77338013100
PRESSURE PUMP COVER
15
0025060406
Vis
16
77338000150
OILPUMP IDLER GEAR 24-T.
18
77338061050
Rondelle (Lock)
19
77338061000
BEARING BOLT
20
77338022000
OIL INTAKE SNORKEL
21
0770023015
O-RING 23,00X1,50 NBR 70
22
77338016100
OIL SCREEN CPL.
23
0770300020
O-Ring (30x2,0 FPM)
24
77338019100
PLUG SCREW
25
0401100000
BALL D=10 DIN 5401
26
77338026100
COIL SPRING
27
0603142016
CU-SEAL RING 14X20X1,5 LC8 02
28
60038033050
PLUG SCREW M14X1,5 ALU AH
29
76338051000
CONNECTING TUBE
30
07703305178
O-Ring
30
0770275025
O-RING 27,5X2,5 NBR
31
76338050000
OIL LINE CONNECTOR
32
0025060166
Vis
33
0770012021
O-RING 12X2 VITON GREEN
34
76338027000
SWIVEL PRESSURE REGULATOR
39
76238000000
Refroidisseur d’huile
40
76338035000
OIL PIPE RIGHT
41
76338034000
OIL PIPE LEFT
42
31008060000
rubber grommet D=8mm open
43
76212090070
INSULATED SCREW JOINT M6
44
0014060203
Vis
45
76338036000
OIL PIPE BELOW
46
0603100141
Rondelle
47
0076431001900
Banjo bolt, type A DIN 7643-3 DN4 M10x1
49
59038041000
OIL FILTER COVER RACING
50
07700390261
O-Ring (39,34x2,62)
52
0025050166
Vis
53
61338015200
Filtre à huile
54
76338043000
OIL FILTER CASE
55
76303004000
SILENTBLOCK 20X10 M6X10
56
50233041000
pc - Rondelle (Lock)
57
0025060086
Vis
58
76338141000
OILFILTER CAP
59
76338037000
ADAPTER ALU METRIC
