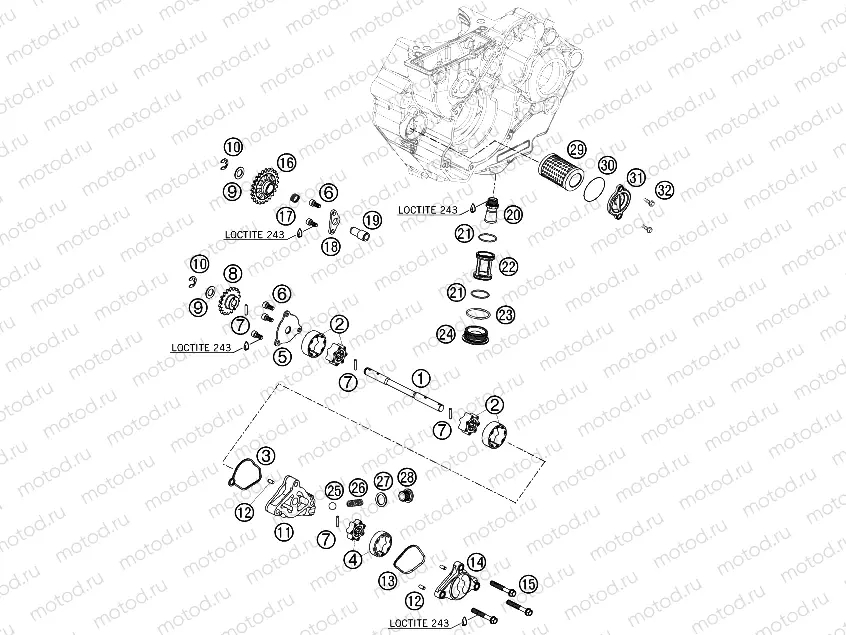

LUBRICATING SYSTEM

LUBRICATING SYSTEM
Например: 77338002000
1
77338002000
% OIL PUMP SHAFT
2
77338107100
Pompe à huile
3
77338012000
GASKET PRESSURE PUMP CASE
4
77338207100
Pompe à huile
5
77338004100
PUMP COVER 07
6
0912050123
AH SCREW DIN0912-M 5X12
7
0402031580
NEEDLE ROLLER DIN5402 3X15,8
8
77338001100
OIL PUMP GEAR 18-T
9
77338023000
WASHER 10,2X18X1
10
0799080000
retaining washer DIN 6799 - 8
11
77338010100
PRESSURE PUMP CASE
12
0402040980
NEEDLE ROL.DIN5402 NRB 4X9,8
13
77338112000
GASKET PRESSURE PUMP COVER
14
77338013100
PRESSURE PUMP COVER
15
0025060406
Vis
16
77338000150
OILPUMP IDLER GEAR 24-T.
17
0405101310
Needle bearing (10x13x10)
18
77338061050
Rondelle (Lock)
19
77338061000
BEARING BOLT
20
77338022000
OIL INTAKE SNORKEL
21
0770023015
O-RING 23,00X1,50 NBR 70
22
77338016100
OIL SCREEN CPL.
23
0770300020
O-Ring (30x2,0 FPM)
24
77338019100
PLUG SCREW
25
0401100000
BALL D=10 DIN 5401
26
77338026100
COIL SPRING
27
0603142016
CU-SEAL RING 14X20X1,5 LC8 02
28
60038033050
PLUG SCREW M14X1,5 ALU AH
29
77338005100
Filtre à huile
30
0770034015
O-RING 34X1,5 VITON
31
77338041100
% OIL FILTER COVER
32
0025060166
Vis
