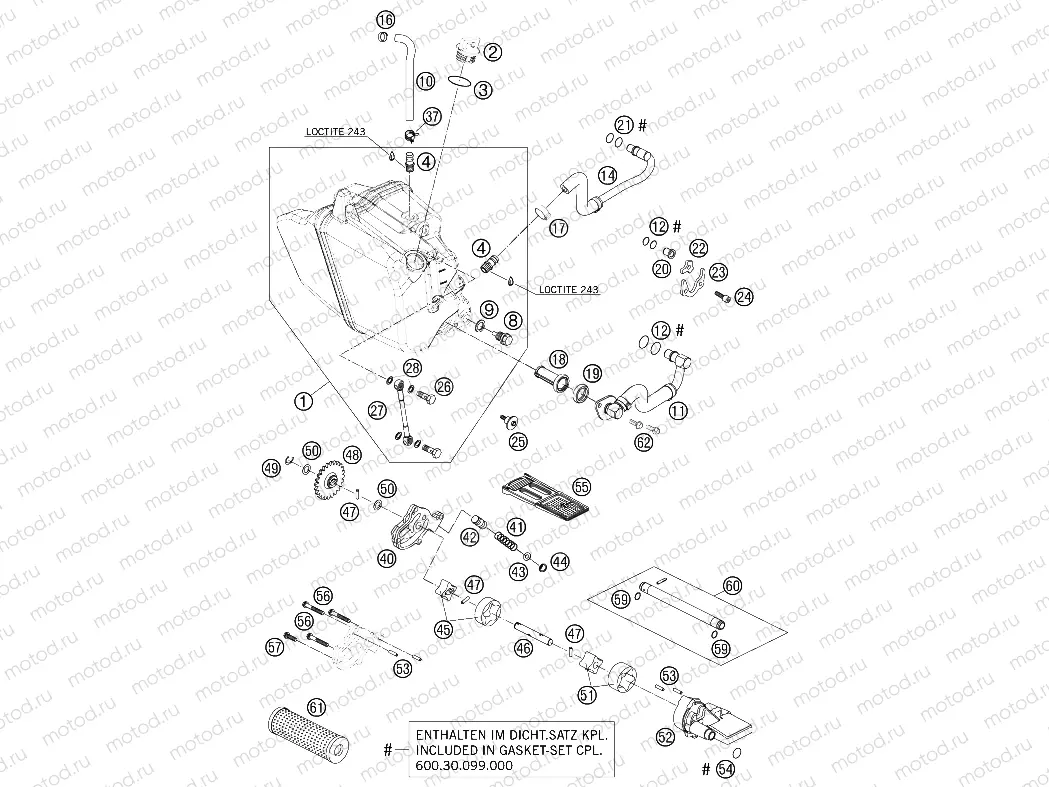

LUBRICATING SYSTEM

LUBRICATING SYSTEM
Например: 62538081033
1
62538081033
% OIL TANK CPL. 05
2
58030020100
Bouchon de remplissage d’huile
3
0770191015
O-Ring
4
59030022100
BLEEDER FLANGE M12X1,5 WS=13
8
58030021100
Vis de vidange d'huile
9
58038022000
Rondelle
10
62538034030
PREFORMED HOSE 9X15 05
11
62538060000
SUCTION PIPE 05
12
0770090021
O-RING 9X2 VITON
14
62538061000
RETURN OIL PIPE 06
16
00050170706
VARIABLE ONE-EAR CLAMP 17,0MM
17
00050185706
VARIABLE ONE-EAR CLAMP 18,5MM
18
60038017000
OIL SCREEN FINISHED 03
19
60038018000
GASKET FOR OIL FILTER HNBR 03
20
60038024000
PLUG 10MM LC8 03
21
0770110021
O-RING 11X2 VITON
22
60038037000
RETAINING PLATE 2 LC8 03
23
60038036000
RETAINING PLATE 1 LC8 03
24
0912060203
AH SCREW DIN0912-M 6X20
25
60038083000
SCREW OIL TANK FIXING 03
26
58038029000
BANJO BOLT M8X1
27
61038084100
OIL RISING PIPE CPL.
28
0603082121
SEAL RING CU DIN7603- 8X12X1
37
00049160121
CLAMP STD DN16
40
60038010000
PRESSURE PUMP CASE 03
41
60038026000
CONTROL SPRING LC8 3,5 BAR
42
60038128000
CONTROL PISTON
43
0988060121
WASHER 6X12X1 HRC 40-45
44
0472012010
CIRCLIP DIN0472 J12
45
60038011000
ROTOR-SET PRESSURE PUMP 03
46
60038002000
OIL PUMP SHAFT 03
47
0402041580
needle roller NRB 4x15.8 G2
48
60038001024
OIL PUMP GEAR 24-T 03
49
0799080000
retaining washer DIN 6799 - 8
50
60038007010
washer 10x16x0.5
51
60038009000
ROTOR-SET 19MM 03
52
60038008000
SUCTION PUMP CASE 03
53
0402040980
NEEDLE ROL.DIN5402 NRB 4X9,8
54
0770133024
O-RING 13,3X2,4 VITON
55
60038016000
OIL SCREEN 03
56
0025060406
Vis
57
0025060256
Vis
59
0770010010
o-ring 10.00x1.00 NBR70
60
60030065100
OIL INJECTION TUBE GEAR 05
61
61338015200
Filtre à huile
62
0025060106
Vis
