Главная Каталог товаров APRILIA Motor EPC RST FUTURA APRILIA Motor 2002 APRILIA RST FUTURA RST 1000 Futura APRILIA RST FUTURA (VIN: ZD4PW) Ignition unit

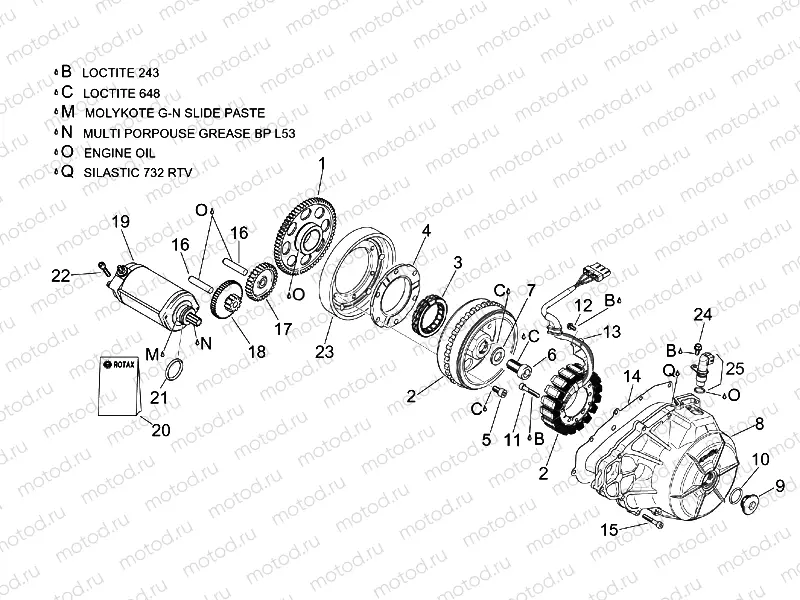

Ignition unit

Ignition unit
Например: 2R000113
1
2R000113
Sprag clutch gear z=64
2
AP0295835
Ignition unit 12V-420W
3
AP0659110
Clutch, one way
4
AP0659550
Sprag clutch housing
5
2R000271
Vis
6
2R000261
Vis
7
AP0627270
Rondelle
8
AP0211655
Ignition cover
9
AP0241631
Cover m24x1,5
10
AP0430782
pc - O-Ring (23,3x2,4)
11
AP0241816
Vis (M6x40)
12
AP0941935
Self-tap screw M5x12
13
AP0251160
Cable protection
14
AP0650341
Gasket - generator cover
15
AP0241811
Vis
16
AP0229301
in M6x50
17
AP0634605
Idle gear
18
AP0634740
Double gear
19
AP0685965
Moteur de démarreur
20
AP0294354
Starter motor revision kit
21
AP0250140
O-ring 24,4x3,1
22
AP0840882
Vis
23
AP0265040
Flywheel rotor
24
AP0240385
Vis
25
AP8124865
Drive shaft pos.sensor
