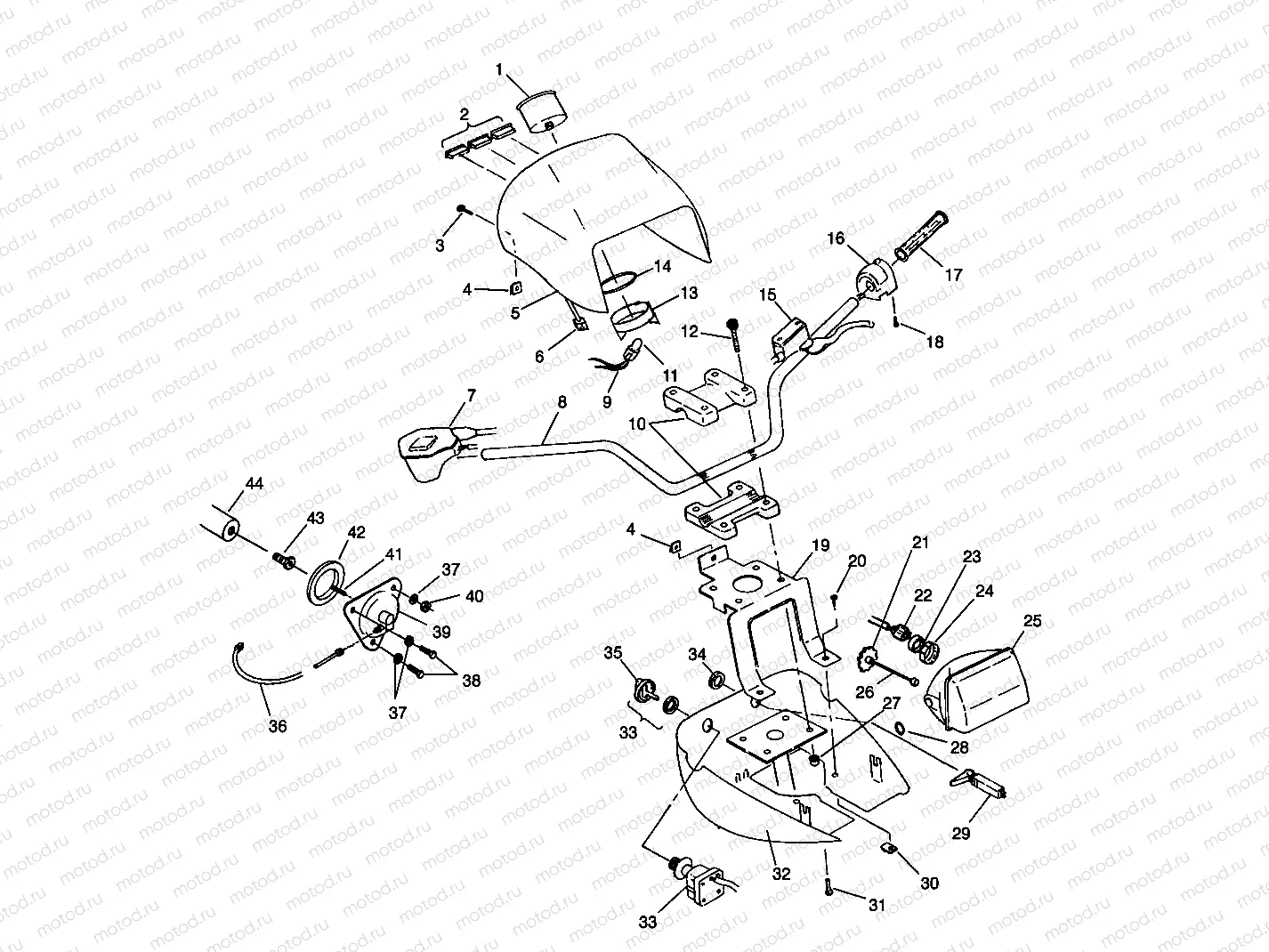

HANDLEBAR and HEADLIGHT POD (400) XPRESS 400 W969540 (4935923592B011) | HANDLEBAR and HEADLIGHT POD (400) XPRESS 400 W969540 (4935923592B011)

HANDLEBAR and HEADLIGHT POD (400) XPRESS 400 W969540 (4935923592B011) | HANDLEBAR and HEADLIGHT POD (400) XPRESS 400 W969540 (4935923592B011)
1
3280326
SPEEDOMETER 3 ATV ASM.
2
4040054
INDICNEUT./REV.
2
4040052
INDICLOW OIL&HI-BEAM.
2
4040053
INDICHOT TEMPERATURE
3
7511881
Vis
4
7670086
NUT
5
5431812-215
POD,H/L,UP,BLU-GRN.
6
2460556
HARNESS WIRE UPR.INDIC(2X4)
7
2010159
THROTTLE CONTROL ASM
8
5242987-067
TUBE-HANDLEBAR BLK
9
2460387
HARNESS, SPEEDO
10
5630616-067
BLOCK,H'BAR RETAINER,BLK
11
4030015
BULB TAILLIGHT/TACH/SPEEDO (10
12
7515188
SCREW(10)
13
3280175
CLAMP,BACK,SPEEDO.
14
3280174
GASKET,SHOCK MT.
16
4110193
SWITCH HI/LOW/OFF LH H BAR
17
5433834-070
GRIP-HNDLBAR 7/8 ID BLACK
18
2010055
Vis
19
5244969-329
BRKT-POD MOUNTING E-COAT
21
4032079
KNOB ADJUSTING
22
2460555
HARNESS WIRE LWR.INDIC(2X4)
23
5411120
BOOT HEADLIGHT
24
4032077
COLLAR LOCK
25
2870448
BULB QUARTZ.H/L H4 60/55W
25
4032075
ASM HEADLIGHT W/ADJUST ROD-KNO
26
4032078
ROD ADJUSTING
27
7542122
NUT-NYLOK
28
5410163
O RING
29
2200188
KIT-CHOKE CONTROL
29
7080579
CABLE CHOKE CONTROL
30
7670089
NUT U-TYPE
31
7522021
Vis
32
5431811-143
POD,H/L,LOW,LT GRAY
33
4110194
SWITCH IGNITION
34
7080229
Nut
35
5433534
KEY COVER-KEYSWITCH
36
3280216
Câble de compteur de vitesse
37
7555725
Rondelle
38
7515378
BOLT(10)
39
3280218
ADAPTER,DRIVE(1:1.0)
40
7542324
Nut (SELF-LOCKING)
41
3280217
KEY,SPEEDO.DRIVE
42
3280164
SEAL,ANGLE DRIVE
43
5020741
BUSHING,SPEEDO.DRIVE
44
LR--
CALIPER, BRAKE, RH
