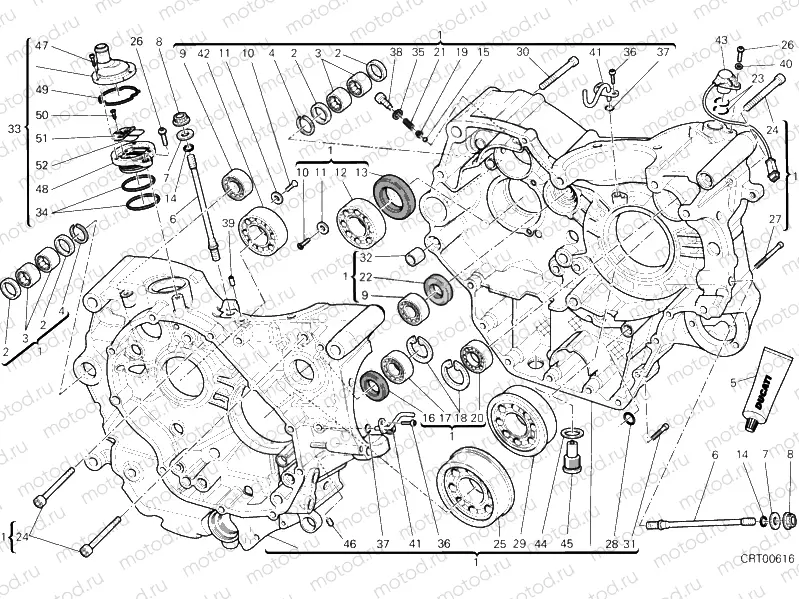

HALF-CRANKCASES PAIR » ENGINE CASE

HALF-CRANKCASES PAIR » ENGINE CASE
Например: 22522731A
1
22522731A
COMPLETE HALF-CRANKCASES PAIR
2
93041271A
pc - . SEAL RING 20X26X4
3
764000004
Needle bearing
4
88440531A
pc - .SPRING RING
5
942470014
Gasket - silicone sealant
6
76610551D
Stud bolt
7
85610642A
Rondelle
8
74810501A
pc - Nut (M10)
9
70240331A
Roulement
10
720941616
.SCREW TSPEI M6X12
11
85611481A
Rondelle
12
70240131A
Roulement
13
93040221A
.SEAL, OIL 35X52X7
14
88641181A
O-Ring
15
84740061A
.BALL
16
93041233A
Joint
17
757941542
Roulement
18
735033380
Seeger
19
83110151A
PLATE
20
70250081A
Roulement
21
79940121A
Spring
22
93040932A
.SEAL, OIL 17X25X4
23
88640331A
O-Ring
24
77151363B
Vis
25
70240931A
.BEARING 35X85X23
26
77550211B
Vis (M6x16)
27
77150808B
Vis
28
88641321A
O-Ring
29
70240921A
.BEARING 35X78X19
30
77151398B
Vis
31
77150723B
Vis
32
71110951A
Dowel pin
33
59320621B
REATHER VALVE
34
46320222A
pc - O-Ring
35
85212461A
Rondelle (BRASS 6x13x2 MM)
36
77510311B
Vis (M5x10)
37
88650131A
pc - . O-RING 3.68X1.78
38
77916501AE
Vis (spec)
39
86010051B
DOWEL
40
85310031A
Rondelle (spring)
41
87511801A
JET, PISTON COOLING
42
70250193A
.BEARING
43
55241321C
.SENSOR, TIMING & RPM
44
85250421A
Rondelle
45
89320062A
Vis de vidange d'huile
46
77950621A
.THREADED DOWEL M10X1
47
77150068B
Vis
48
59310601B
HOLDER READ VALVE
49
78811151A
Gasket
50
77250341B
SCREW, TAPPING 3.5X12
51
82716031A
Entretoise
52
81110021A
REED VALVE ASSY
53
68050101A
KEY 2X2X10
