Главная Каталог товаров DUCATI EPC 2021 DUCATI Scrambler ICON DUCATI 2021 HALF-CRANKCASES PAIR

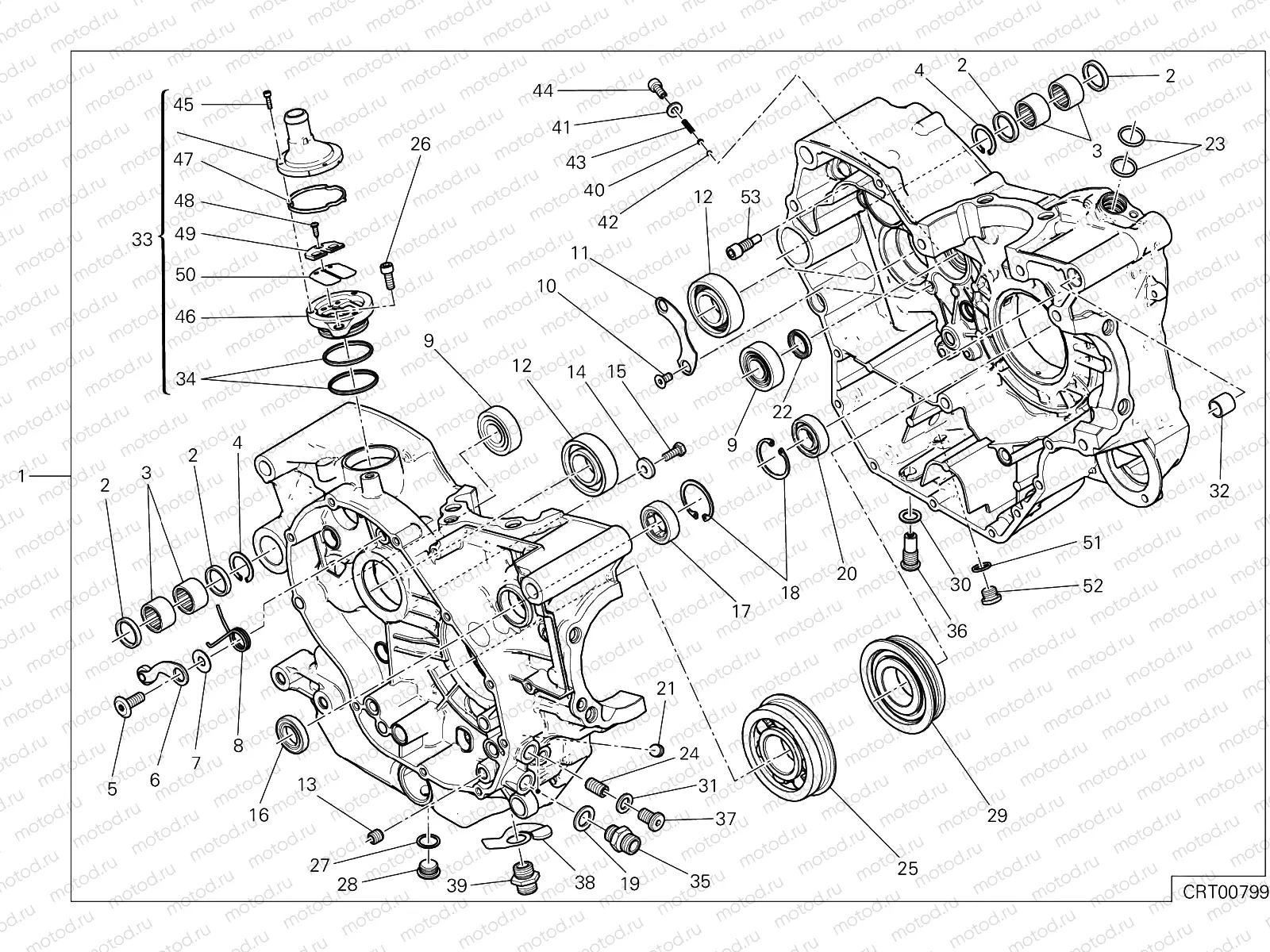

HALF-CRANKCASES PAIR

HALF-CRANKCASES PAIR
Например: 225P0073A
1
225P0073A
COMPLETE HALF-CRANKCASES PAIR
1 шт. в узле
2
93041271A
pc - . SEAL RING 20X26X4
22 шт. в узле
3
764000004
Needle bearing
8 шт. в узле
4
88440531A
pc - .SPRING RING
22 шт. в узле
5
77910391A
Vis (M8x21,5)
8 шт. в узле
6
45520181A
GEAR FIXING CLICK ASSEMBLY
13 шт. в узле
7
85210532A
Rondelle
13 шт. в узле
8
79910491A
2 pc - SPRING, RETURN
8 шт. в узле
9
70240401A
Roulement
22 шт. в узле
10
720941616
.SCREW TSPEI M6X12
22 шт. в узле
11
036749275
PLATE, RETAINER
22 шт. в узле
12
751202567
Roulement
22 шт. в узле
13
067049310
BUSH
13 шт. в узле
14
71311401A
Entretoise
22 шт. в узле
15
77052508B
Vis
22 шт. в узле
16
93041631B
.SEAL RING
7 шт. в узле
17
757941542
Roulement
22 шт. в узле
18
735033380
Seeger
22 шт. в узле
19
78710111A
pc - Rondelle (ALU, 14x22x2)
22 шт. в узле
20
70250081A
Roulement
22 шт. в узле
21
77950621A
.THREADED DOWEL M10X1
22 шт. в узле
22
93040932A
.SEAL, OIL 17X25X4
13 шт. в узле
23
88640331A
O-Ring
22 шт. в узле
24
77840041A
5 pc - .THREADED DOWEL M10X1
8 шт. в узле
25
70240931A
.BEARING 35X85X23
22 шт. в узле
26
77150658B
Vis
22 шт. в узле
27
85211201A
Joint - vis de vidange d'huile
8 шт. в узле
28
77911982A
.THREADED PLUG M15X1
13 шт. в узле
29
70240921A
.BEARING 35X78X19
22 шт. в узле
30
85250421A
Rondelle
22 шт. в узле
31
85211951A
Rondelle
8 шт. в узле
32
71110951A
Dowel pin
22 шт. в узле
33
59320621B
REATHER VALVE
22 шт. в узле
34
46320222A
pc - O-Ring
2 шт. в узле
35
81510221A
NIPPLE, HOSEM14X1.5
22 шт. в узле
36
89320062A
Vis de vidange d'huile
37
77911622A
5 pc - Vis
38
79920771C
BYPASS SPRING
39
81510281A
BOLT UNION
40
83110151A
PLATE
41
85212461A
Rondelle (BRASS 6x13x2 MM)
43
79940121A
Spring
44
77916501AE
Vis (spec)
45
77150068B
Vis
46
59310601B
HOLDER READ VALVE
47
78811151A
Gasket
48
77250341B
SCREW, TAPPING 3.5X12
49
82716031A
Entretoise
50
81110021A
REED VALVE ASSY
51
85250261A
pc - Rondelle
52
77910262A
.SCREW M12X1
53
77919881A
Vis (spec)
