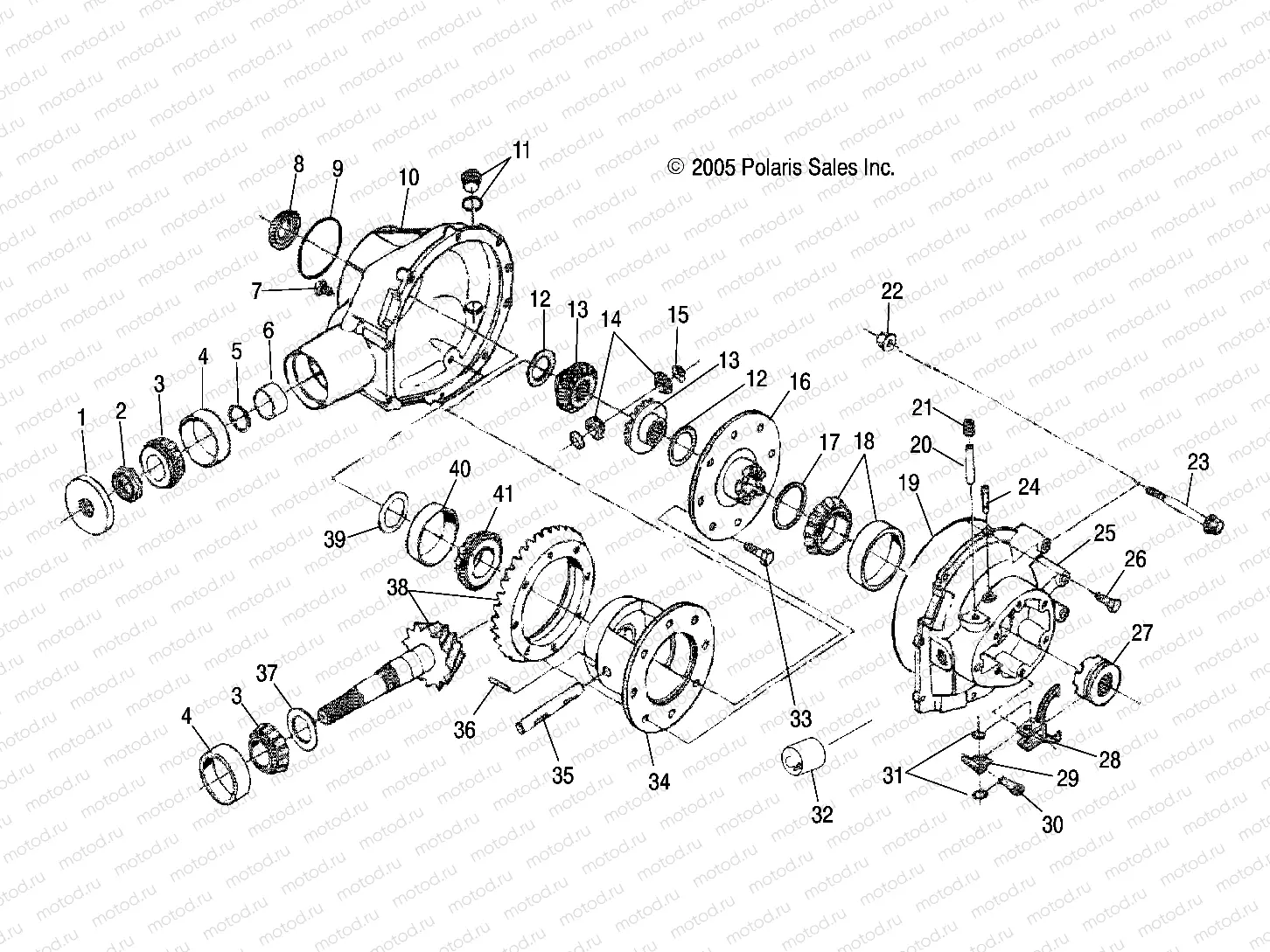

GEARCASE | GEARCASE, REAR (BUILT BEFORE 1/15/07) - R07RB50AA/RH50AA (4999202119920211D02)

GEARCASE | GEARCASE, REAR (BUILT BEFORE 1/15/07) - R07RB50AA/RH50AA (4999202119920211D02)

Например: 2875333

0

2875333

KIT-DIFFERENTIAL SHIM

0

1341514

ASM-GEARCASE REAR DIFF

0

2875332

KIT-PINION SHIM

1

3610102

SEAL-OIL PINION 026HH102

2

7547243

NUT-PINION 026HN104

3

3514432

BEARING-CONE PINION 585974

4

3514431

BEARING-CUP PINION 3514431

5

2875332

KIT-PINION SHIM

6

5133762

SPACER-BEARING PINION 026HS102

7

5133731

PLUG-DRAIN

8

3610146

SEAL-OIL SHAFT 026HH115

9

5412339

O-RING 026HH104

10

5134905

COVER-HALF CARRIER 026CH104

11

5133736

PLUG-FILL/CHECK

12

7556346

WASHER-THRST SIDE GEAR026HS108

13

5134904

GEAR-SIDE DIFF 026GD100

14

5134903

GEAR-PINION MATE DIFF 51451

15

7556347

WASHER-THRUST PINION 34096

16

5133758

Cover, Half, Differential Case

17

2875333

KIT-DIFFERENTIAL SHIM

18

3514435

BEARING-TAPERED ROLLER026HD101

19

5412338

O-RING-HOUSING HALVES 026HH103

20

5133755

SHAFT-PIVOT SHIFT YOKE026SS100

21

7518171

SCREW-SET 026HM106

22

7547242

NUT-HEX FLANGED 026HN105

23

7518175

Vis

24

7052334

VENT-TUBE 026HN106

25

5133764

COVER-HALF CARRIER 026CH102

26

7518172

Vis

27

5137196

GEAR-CLUTCH

28

5133759

YOKE-SHIFT 026SV100

29

7042209

SPRING-LEVER SHIFT 026HE100

30

5133760

LEVER-SHIFT 026SV101

31

7042210

SPRING-RETURN SHIFT 026HE101

32

2411634

SOLENOID-DIFF.LOCK

33

7518173

BOLT-HEX 41221

34

5134901

CASE-HALF DIFF 026DC105

35

5134902

PIN-CROSS DIFF 026DP101

36

3234487

PIN-SPRING(500596-15)

37

2875332

KIT-PINION SHIM

38

2205481

K-HYP ASSY(026KG102)

39

2875333

KIT-DIFFERENTIAL SHIM

40

3514433

BEARING-DIFF 585911

41

3514434

BEARING-CONE DIFF 550433
