Главная Каталог товаров Polaris EPC 2000 Polaris ATV Polaris 2000 SPORTSMAN 500 RSE (A00CH50AJ) Polaris 2000 ATV GEARCASE (Cases and Snorkel) - A00CH50AK (4954805480D007) | GEARCASE (Cases and Snorkel) - A00CH50AK (4954805480D007)

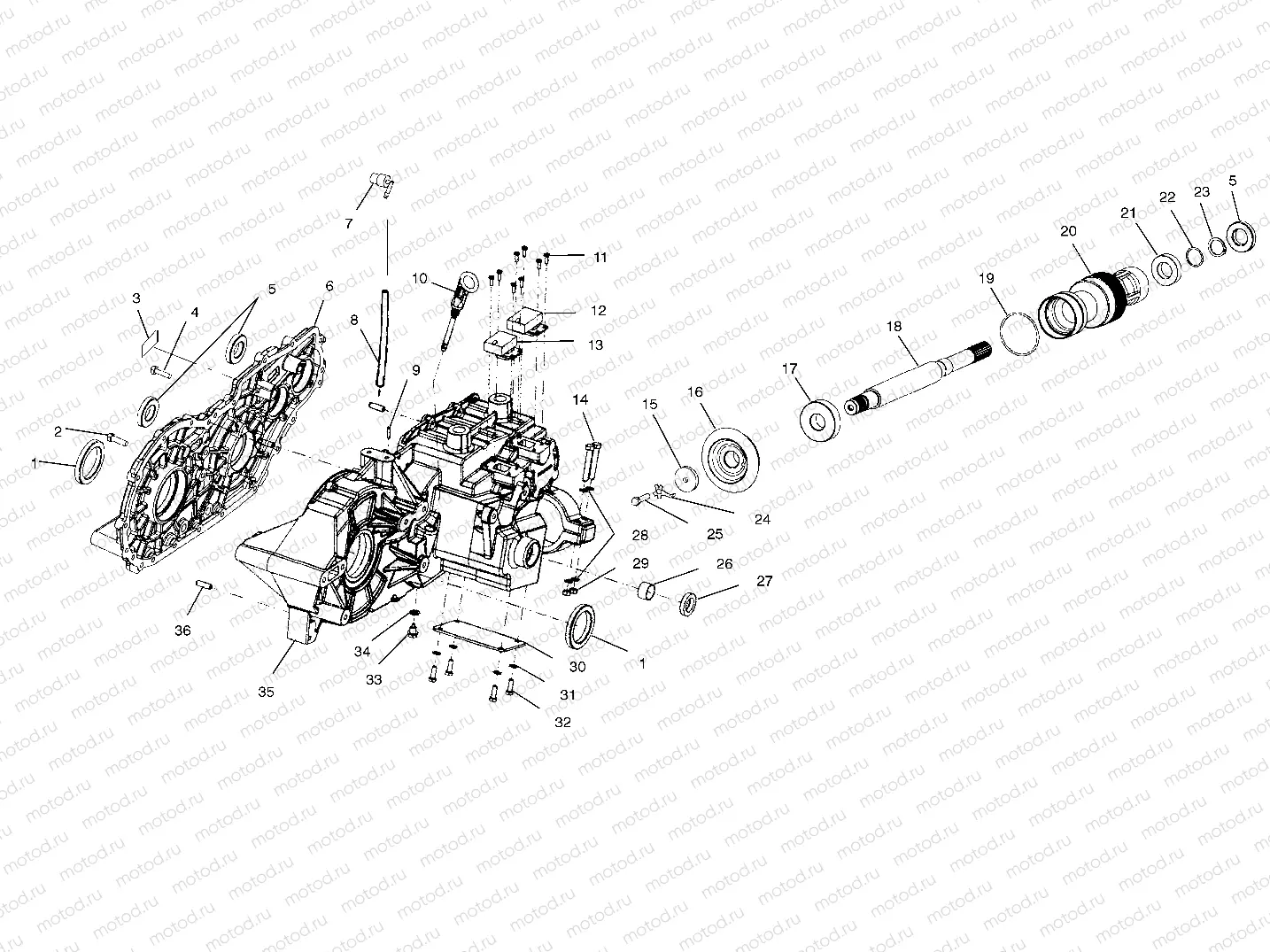

GEARCASE (Cases and Snorkel) - A00CH50AK (4954805480D007) | GEARCASE (Cases and Snorkel) - A00CH50AK (4954805480D007)

GEARCASE (Cases and Snorkel) - A00CH50AK (4954805480D007) | GEARCASE (Cases and Snorkel) - A00CH50AK (4954805480D007)

Например: LR--

0

LR--

CALIPER, BRAKE, RH

1

3233878

SEAL-TRIPLE LIP

2

3233026

Vis

3

3233636

DECAL-SWITCH

4

3233252

Vis

5

3233788

SEAL-TRIPLE LIP

6

3233716

GEARCASE-LH

7

7052095

FITTING 90 DEG 1/8

8

8360009-600

LINE FUEL 1/8 ID 600 CM.

9

3233037

VENT

10

3233475

DIPSTICK

11

3233749

Vis

12

3234001

SWITCH-GEAR INDICATION 2 PSTN

13

3234002

SWITCH-GEAR INDICATION 3 PSTN

14

3233442

Vis

15

3233352

Rondelle

16

3233476

GEAR 31T SNORKEL

18

3233446

SHAFT,SNORKEL

19

3233302

O-Ring

20

3233303

SNORKEL

21

3233305

BEARING BALL

22

3233357

Entretoise

22

3233356

Entretoise

22

3233355

Entretoise

22

3233353

Entretoise

22

3233354

Entretoise

23

3233306

RING RETAINING

24

3233444

BOLT,LOCK SNORKEL GEAR

25

3233351

Vis

26

3233292

BUSHING

27

3234000

SEAL-DUAL LIP 22X35X8

29

3233291

NUT,FLEXLOCK

30

3233294

PLATE,COVER

31

3233295

Rondelle (Lock)

32

3233296

Vis

33

3233777

PLUG-HEX FLANGE

34

3233254

WASHER PLUG

35

3233748

GEARCASE,RH

36

3233247

Dowel pin
